(100% Original!) Electric Desoldering Gun for Pcba Repair Soldering Tool Pro'Skit Ss-331H 331B Desoldering Vacuum Suction Pump

US $79.00-99.00 / set
1 set(s)Minimum order
type:
Soldering Station
condition:
New
place of origin:
Guangdong, China
brand name:
Pro'sKit
dimensions:
22X16X8CM
usage:
For PCB Circuit Board Repair
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

type

Soldering Station

condition

New

place of origin

Guangdong, China

brand name

Pro'sKit

dimensions

22X16X8CM

usage

For PCB Circuit Board Repair

warranty

1 Year

weight (kg)

3 KG

Name

Desoldering Vacuum Suction Pump

Voltage

240V AC

Power

90W

Temperature range

160-480 Degree

Vacuum Pump System

Air Pump Motor

Control System

Mircroprocessor

Vacuum Suction

Over 600MM Hg

Tube Length

105MM

Power Cable Length

1.2M

Price

Negotiable

Applicable Industries

Machinery Repair Shops

After Warranty Service

Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location

None

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

New Product 2020

Warranty of core components

1 Year

Core Components

Pump

Showroom Location

None

After-sales Service Provided

Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Key Selling Points

High Safety Level

Certification

RosH

Product Detail

1

Product Description

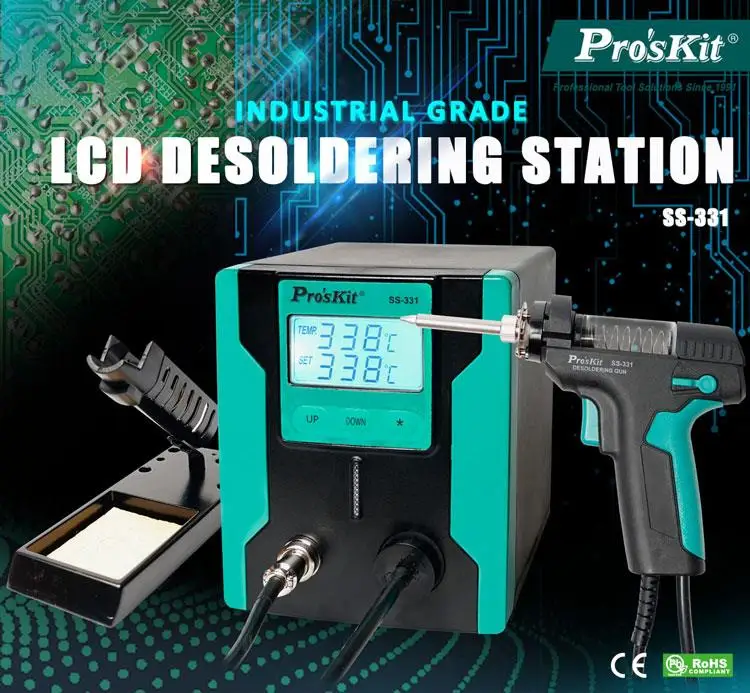

(100% Original!) Electric Desoldering Gun For Pcba Repair Soldering Tool Pro'Skit Ss-331H 331B Desoldering Vacuum Suction Pump


Package List :

1 x 220V LCD Desoldering Station

1 x Electric Desoldering Gun

1 x Stand

3 x Spare tip(Diameter 1.2 1.0 1.5mm)

3 x Cleaning Needles (Diameter 0.7 0.9 1.2mm)

12 x Filter sponge(Diameter 20.8x1 16.8x3)



USE Notice:

1.After Each Use. It is Recommended to take 3-5 times of Empty Suction to Full Clear the residual Tin in The Tube.
2.If the interval is about 20 minutes, it is recommended to use a needle to clean the steel pipe after empty suction.
3.During the use, If the suction is reduced. Please use a needle to clean the steel pipe.
4.If you do not use often, it is recommended to adjust the tin gun to about 200 degrees, and then adjust to the working temperature when using it
5.When there is about 1/2 of the tin slag in tin storage. It should be cleaned in time. When the filter Spong is hardness,Pls replaced in time.
6.The Reason For Block Desoldering Gun
1)The temperature is set too low for long time desoldering,  The solder Tin does not reach the storage tube,But the temperature comes down.So they  Stayed in the  tube,Make it  Block
 2)Did not clean in time when too much tin slag in the tin storage tube , This will effect the Gun's suction , In  this case , you should remove tail's tin slag . it can be removed only after you use the soldering iron to heat the tin until it melt
