1kg 2kg 3kg High Temperature Platinum Gold Crucible Furnace Mini Small Electric Induction Metal Gold Melting Furnace
US $700.00 / set
1 set(s)Minimum order
place of origin:
Henan, China
type:
Induction Furnace
usage:
Melting Furnace
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
Furnace body and crucible
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
Contact us
Quik Detail
| place of origin | Henan, China |
|---|---|
| type | Induction Furnace |
| usage | Melting Furnace |
| video outgoing-inspection | Provided |
| machinery test report | Provided |
| core components | Furnace body and crucible |
| brand name | Hongteng |
| voltage | 220V/380V |
| dimension(l*w*h) | 58*33*30mm |
| weight (t) | 0.05 T |
| warranty | 1 Year |
| key selling points | Easy to Operate |
| Application | Melting Metal |
| Product Name | gold melting furnace |
| Melting Material | Gold Silver Copper Aluminum Lead |
| Capacity | 1-15kg |
| Keyword | Gold Smelting Furnance |
| Feature | High Efficiency |
| Max temperature | 2000c |
| Function | High Heating Speed |
| Model | HT1000s |
| Furnace type | Induction Melting Electric Furnace |
| Warranty of core components | 1 Year |
Product Detail
1kg 2kg 3kg high temperature platinum gold crucible furnace mini small electric induction metal gold melting furnace
Product Description
Technological Process
Smelting and purifying metals such as platinum, Porpezite, Rhodite, Gold, etc. through the Crucible . can also be used for the melting small amount of nickel alloy, silicon powder alloy, K gold and other metal materials.

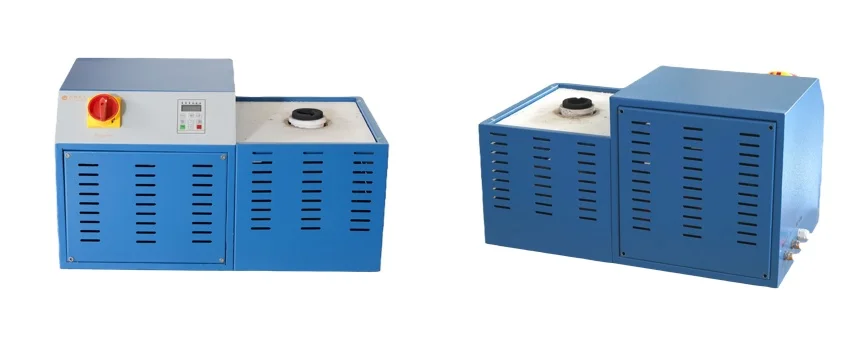

Product Parts Display
Product Features
IGBT induction heating power supply, 10% energy saving than traditional thyristor power supply！ the medium- frequency magnetic has a stirring effect on the metal liquid, conducive to the uniformity of the ingredients and the floating of the metal slag. This equipment completely solves the drawbacks of the original melting process such as coke furnace and gas furnace
Furnace Body
The furnace body is made by thick aluminum alloy shell to reduce the magnetic leakage, small size, light weight, movable, covering less than 1 square meter, can work continuously for 24 hours, environmental protection and energy saving.
Control Cabinet
The main control board is microcomputer control, one - key zero - pressure start. The power supply adopts IGBT imported power device, which is more integrated and miniaturized. Easy to install and operate, effective output power is over 90%
Tilting Reducer
The double-layer mica insulation technology is used for the insulation treatment of the capacitor. Even if water is sprayed on the capacitor accidentally, the insulation strength of the cabinet can be ensured.
Technique parameter of mini gold melting furnace | ||||||||||||
Model | Working voltage | Cooling water capacity | Net weight | Machine Size | ||||||||
TG-2KW | 220V | 7.3L/MIN | 15KG | 490*240*460mm | ||||||||
TG-15KW | 220V | 7.5L/MIN | 35KG | 490*240*460mm | ||||||||
TG-25KW | 380V | 7.5L/MIN | 55KG | 590*260*460mm | ||||||||
TG-35KW | 380V | 7.6L/MIN | 70KG | 590*260*460mm 420*320*360mm | ||||||||
TG-45KW | 380V | 7.6L/MIN | 90KG | 600*270*370mm 600*320*360mm | ||||||||
TG-60KW | 380V | 9L/MIN | 120KG | 600*450*900mm 500*390*450mm | ||||||||
TG-80KW | 380V | 9L/MIN | 140KG | 600*450*900mm 500*390*450mm | ||||||||
TG-100KW | 380V | 10L/MIN | 180KG | 710*475*850mm 560*400*670mm | ||||||||
