20 25 30 36 40 42 45 50 52 55 60 65 70 72 75 80 90 100 105 110 120 M Meter 4-leg Sst Lattice steel Angular Tower
US $1,000.00-1,600.00 / ton
4 ton(s)Minimum order
Model Number:
4 Legs Angle Steel Tower
Type:
Telecommunication Tower
Place of Origin:
Hebei, China
Brand Name:
Jiayao
Standard:
ANSI/TIA-222-G-2005
Material:
Angle Steel Q235B Q345B Q420
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$1,000.00-1,600.00
4 tons (MOQ)
$1.45-1.49
499 meters (MOQ)
$1,000.00-1,600.00
4 tons (MOQ)
$1,200.00-1,600.00
4 tons (MOQ)
$100.00-105.00
1 piece (MOQ)
Contact us
Quik Detail
| Model Number | 4 Legs Angle Steel Tower |
|---|---|
| Type | Telecommunication Tower |
| Place of Origin | Hebei, China |
| Brand Name | Jiayao |
| Standard | ANSI/TIA-222-G-2005 |
| Material | Angle Steel Q235B Q345B Q420 |
| Certification | ISO9001:2008 SGS COC |
| Galvanization Standard | ASTMA123 |
| Name | 4 Legs Angle Steel Tower |
| Height | 5-200M |
| Wind Speed | 0-300KM/H |
| Structure | Four Support Legs |
| Nuts & Bolts | Grade 8.8 |
| Lifetime | More than 20 Years |
Product Detail
提示信息
Subtitle/CC
Speed
Quality
Audio Track
Speed
Subtitle/CC
Audio Track
Quality
20 25 30 36 40 42 45 50 52 55 60 65 70 72 75 80 90 100 105 110 120 M Meter 4-leg Sst Lattice steel Angular Tower
Please Click Here For More Information!!!
Product Description
Technical Data
| Design | ||
| 1. Design Code | TIA/EIA-222-G/F | |
| Structure Steel | ||
| 2. Grade | Mild Steel | High Tensile Steel |
| GB/T 700:Q235B, Q235C,Q235D | GB/T1591:Q345B, Q345C,Q3455D | |
| ASTM A36 | ASTM A572 Gr50 | |
| EN10025: S235JR, S235J0,S235J2 | EN10025: S355JR, S355J0,S355J2 | |
| 3. Design Wind Speed | Up to 250 km/h | |
| 4. Allowable deflection | 0.5 ~1.0 degree @ operational speed | |
| 5. Tension strength (Mpa) | 360~510 | 470~630 |
| 6. Yield strength (t≤16mm) (Mpa) | 355 | 235 |
| 7. Elongation (%) | 20 | 24 |
| 8. Impact strength KV (J) | 27(20°C)---Q235B(S235JR) | 27(20°C)---Q345B(S355JR) |
| 27(0°C)---Q235C(S235J0) | 27(0°C)---Q345C(S355J0) | |
| 27(-20°C)---Q235D(S235J2) | 27(-20°C)---Q345D(S355J2) | |
| Bolts & Nuts | ||
| 9. Grade | Grade 4.8, 6.8, 8.8 | |
| 10. Standards for mechanical properties | ||
| 10.1 Bolts | ISO 898-1 | |
| 10.2 Nuts | ISO 898-2 | |
| 10.3 Washers | ISO 6507-1 | |
| 11. Standards for Dimensions | ||
| 11.1 Bolts | DIN7990, DIN931, DIN933 | |
| 11.2 Nuts | ISO4032, ISO4034 | |
| 11.3 Washers | DIN7989, DIN127B, ISO7091 | |
| Welding | ||
| 12. Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | |
| 13. Standard | AWS D1.1 | |
| Marking | ||
| 14. Method of marking of the members | Hydraulic Press Stamping | |
| Galvanizing | ||
| 15. Galvanization standard of steel sections | ISO 1461 or ASTM A123 | |
| 16. Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 | |
| Test | ||
| 17. Factory test | Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test |
|
What is the lattcie structure of 4 legged angular steel tower?
How to mount the MW dish on the 4 legged angular steel tower?
What is the main structure of 4 legged angular steel tower?

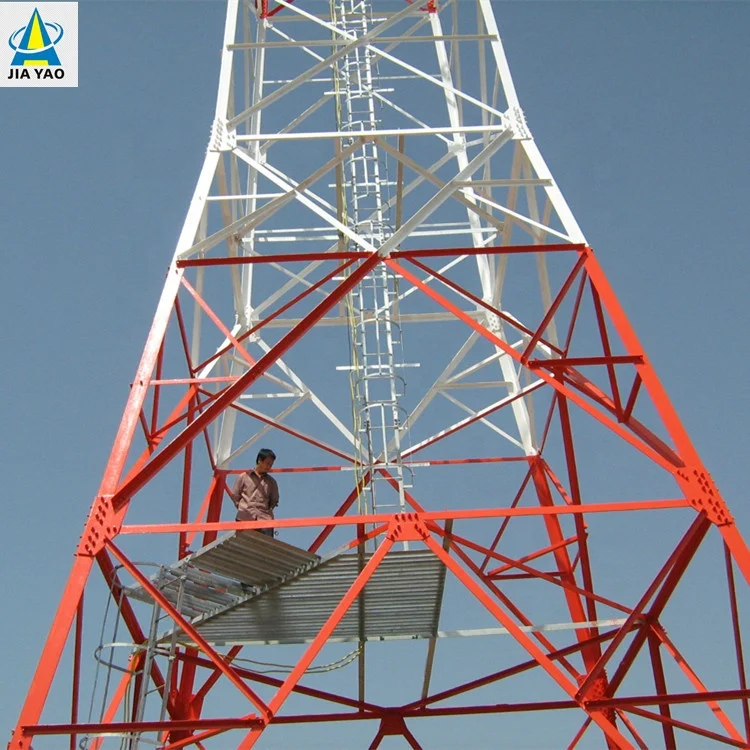

Platform,ladder of 4 legged angular steel tower
Please Click Here For More Information!!!
How to inspect 4 legged angular steel tower?
Please Click Here For More Information!!!
Production Flow
Packaging & Shipping
Certifications
Company Information
Gular customers
Our Services
