20 Ton lpg Propane Gas Skid Filling Station

US $15,000.00 / set
1 set(s)Minimum order
place of origin:
Shandong, China
brand name:
CJSE LPG Skid Station
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
PLC
dimension(l*w*h):
DN1600 x 4400mm
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

place of origin

Shandong, China

brand name

CJSE LPG Skid Station

video outgoing-inspection

Provided

machinery test report

Provided

core components

PLC

dimension(l*w*h)

DN1600 x 4400mm

volume (m³)

10cbm mobile lpg filling station

inner material

Q345R carbon steel

outer material

Q345R carbon steel

Design Pressure (mpa)

1.77

design standard

ASME/GB150 lpg gas filling station

working temperature(℃)

-19 - 50 ℃

warranty

1 year

key selling points

High Productivity

Product name

lpg gas cylinder filling machine and 10m3 LPG storage tank station

LPG Tank Working Pressure

1.63MPa

LPG Tank Color

netural grey or silver

Capacity Available for tank

5m3 to 50m3 mobile lpg filling station

Processing for LPG Tank

heat treatment/shot blast/X-ray detection

LPG Tank Applications

for lpg storage

Certification

ISO9001 ISO14001 ASME

Key words

mobile lpg filling station LPG filling station gas Filling station

LPG Tank Type model

Ground LPG Storage Tank

Package

Nude for LPG Gas Station Tank

Condition

New

Warranty of core components

1 Year

Showroom Location

Viet Nam, Philippines, Saudi Arabia, Indonesia, Pakistan, Thailand, Sri Lanka, Bangladesh, Ukraine, Kyrgyzstan, Malaysia

Marketing Type

New Product 2022

Capacity

10000L lpg mobile filling station

Weight

2760

Max Working Pressure(MPa)

1.82 MPa

Applicable Industries

Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining, Advertising Company, civil and industrial gas station

Product Detail

Our product Advantages
LPG SKID STATION
- One-piece Design -
Cost Effective
No on-site installation, all components will be
assembled well in factory, reduce the workload of on-site construction and shorten the construction period.
Can be transported in containers, reduce transportation costs.
Safety Devices
In addition to the basic functions of unloading
and vehicles & cylinders filling, our lpg skid station also adds advanced functions such as discharging residue, transferring the
liquid into another tank, filling tanker, safety relief, leakage alarm, and electric control operation.
Plug To Play
After receiving the skid station, you just connect to the power supply to run the equipment.

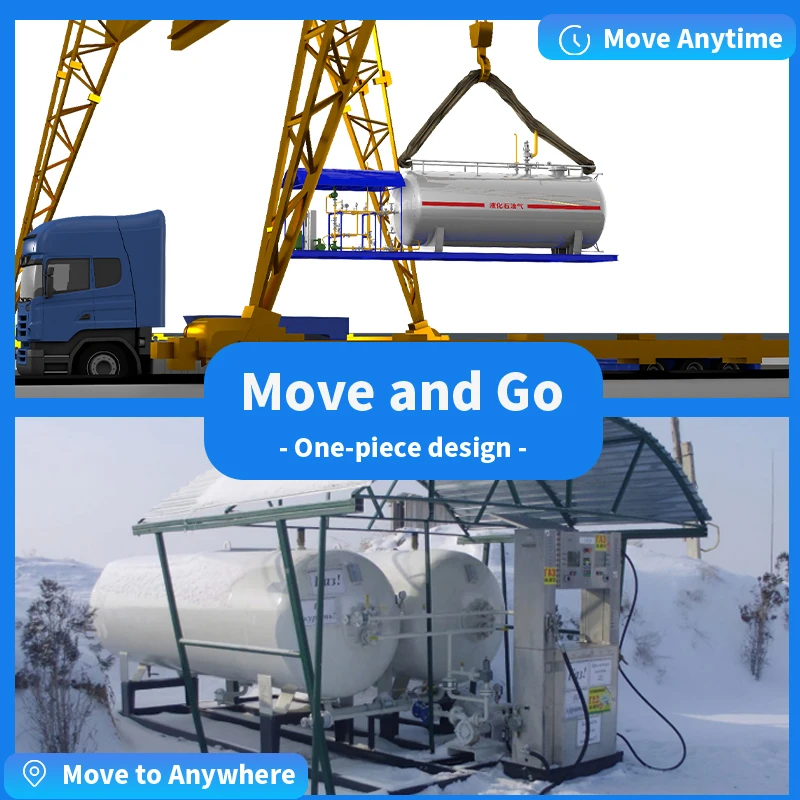

Convenient Mobility
It can be relocated to another location at any time after finishing work in one location, and is a very convenient portable gas supply point.
Small Land Occupation
A 5m3 skid station covers an area of only 12 square meters. Suitable for complex terrain.
The welding seam appearance is uniform The transition between weld bead and weld bead, the weld bead between base metal is smooth.
There's cracks, pores and slags which can bring hidden danger on the welding seam surface.
Specification
Data
LPG storage tank capacity
5-200 cbm (2.5-100 ton)
Design Pressure
1.77Mpa
Working Pressure
1.63Mpa
Working Temperature
-19~50℃
Design Temperature
-20~54℃
Main Material
Q345R
Filling ratio
0.9
Density
560 kg/m3
Design Service Life
20 Years
PWHT
Whole
Product Description
Our Service
Why Choose Us
Company Profile
Our certificates
FAQ
1. Can you provide installation and testing services?
We can send field engineer or we have 7*24 hours online service with all drawing, video and audio data provided. We guarantee 100% customers can successfully complete the installation.
2. How to provide after-sales service if there are problems with the equipment during operation?
We promise 7*24 hours online service, reply within 30 minutes. 10 professional technical personnel
available for online troubleshooting and developing maintenance plan, 100% troubleshooting rate guaranteed.
3. Can you guarantee the delivery time?
With major material 100% in stock, 100% assembly line operation, 38 years of production experience, we
guarantee 100% project delivered on time.
