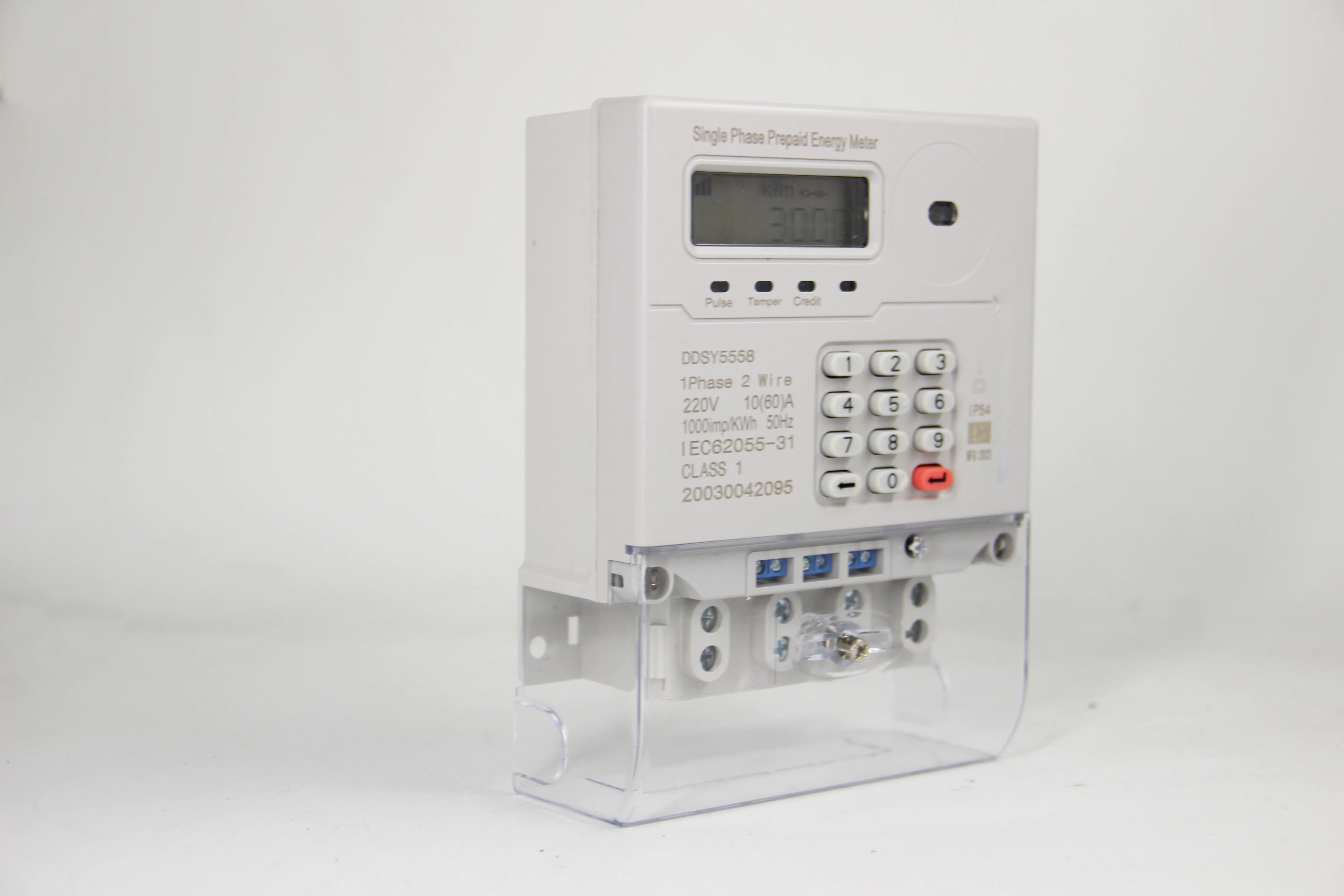

2022 Best Selling Ddsy5558 Single Phase Two Wire Energy Electric Meter and Smart Meter
Other recommendations for your business
Contact us
Quik Detail
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | GOMELONG |
| Model Number | DDS5558 |
| Display Type | Analog and Digital |
| Phase | Single Phase |
| Measuring Energy Range | 00000.0---99999.9Kwh |
| Accuracy Class | Class1 |
| Output Voltage | 160~265V Contact us |
| Operating Temperature | -45℃-55℃ |
| Dimensions | 102mm*94mm*48mm |
| Color | black |
| Max Current | 100A |
| Max accumulated power | 99999.99 kWh |
| Frequency | 50HZ/60HZ |
| Rated current | 5(60)A |
| Type | Energy Digital Kwh Meter |
| constant | 1600imp/kwh |
| Name | Energy Electric Meter |
Product Detail
2018 New Single Phase Electric Meter DDS5558
Model DDS5558 single phase electronic active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC
62053-21.
Features
1. Bidirectional measurement, Reverse energy calculated into forward
2. Indication: Pulse, power, reverse current
3.Full PC
Technical parameters
|
Specification |
DDS5558 |
|
|
Accuracy |
Active |
Class1.0 |
|
Reactive |
|
|
|
Voltage |
Rated |
110/120/220/230/240V |
|
Range |
0.9Un~1.1Un |
|
|
Limit |
0.8Un~1.2Un |
|
|
Frequency |
|
50/60Hz |
|
Current |
Range |
5(60) |
|
Starting Current |
|
0.4%Ib |
|
Constant |
Active |
2000imp/kWh |
|
Reactive |
\ |
|
|
Display |
Type |
LCD |
|
Digit |
6+1/6+2 |
|
|
Power Consumption |
Voltage Circuit |
≤0.8W,10VA |
|
Current Circuit |
≤4VA |
|
|
Communication |
Interface |
Optical/Infrared/RS485 (Optional) |
|
Protocol |
MODBUS,DLT/645,IEC1107 |
|
|
Temperature |
Working Temperature |
-45℃~+55℃ |
|
Storage Temperature |
-40℃~+70℃ |
|
|
Humidity |
|
≤90% |
|
Protection |
|
IP54 |
Dimension&Wiring Digram
