2022 Smoke Purifier Machine 200w Laser Welding Industrial air Extractor with 1 Arm Silicone Cover

US $220.00-240.00 / piece
1 piece(s)Minimum order
condition:
New
weight (kg):
33
place of origin:
Guangdong, China
brand name:
LIUJIANG
warranty:
1 Year
Product name:
Fume extractor for Laser Marking
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

condition

New

weight (kg)

33

place of origin

Guangdong, China

brand name

LIUJIANG

warranty

1 Year

Product name

Fume extractor for Laser Marking

Power

200W

Filter efficiency

99.97%

Filter

3 Layers

Air Flow

360m3/h

Color

White

Warranty

12 Months

POWER SUPPLY

AC220V 50HZ/AC110V 60HZ

Noise

50dB

Voltage

AC 220V/110V

Applicable Industries

Manufacturing Plant

Showroom Location

None

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Warranty of core components

1 Year

Core Components

motor

Marketing Type

New Product 2022

Product Detail

Liujiang 2020 best seller

fume extractor for laser machine 6090

fume extractor for eyelash extension

soldering fume extractor

laser fume extraction equipment,

industrial air extractor

Product Description














Product features



1.Appearance and structure

  •  simple and elegant appearance, steady and elegant. Body integration design, the use of metal frame structure, high-quality cold-rolled steel electrostatic spray process, durable. Brushed stainless steel panel with more classic and exquisite, refreshing!
  •  Both sides of the concave with high quality plastic handle, feel fine, stable and reliable, easy to handle.
  •  Inlet flange unique shape curve design, more in line with the principles of fluid dynamics.
  •  Install the user-friendly step less speed regulator, free to adjust the air flow and suction size.

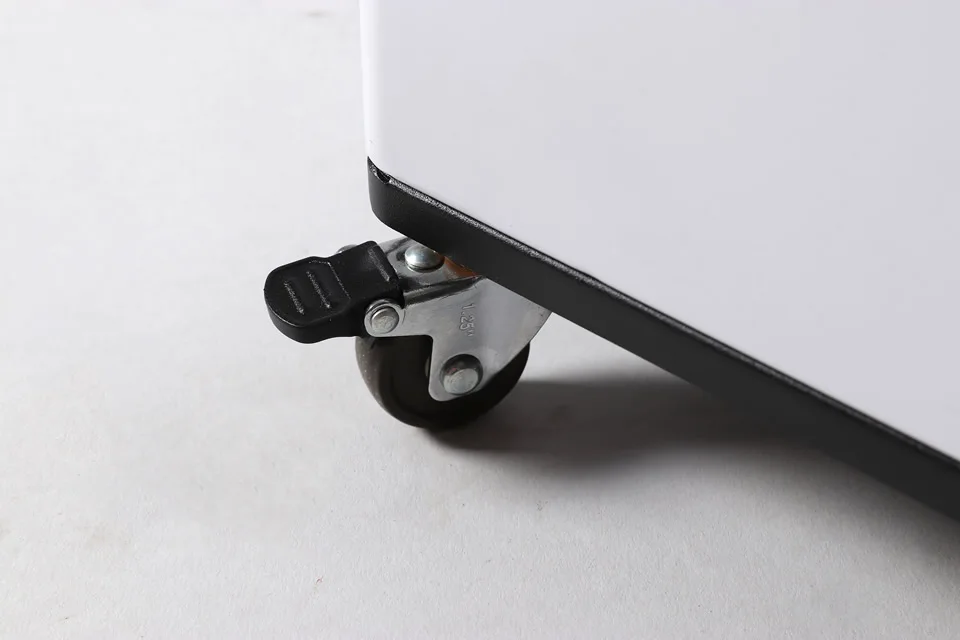

  •  Small size, no need to install,it  is conducive to clean and beautiful working space, easy to move.

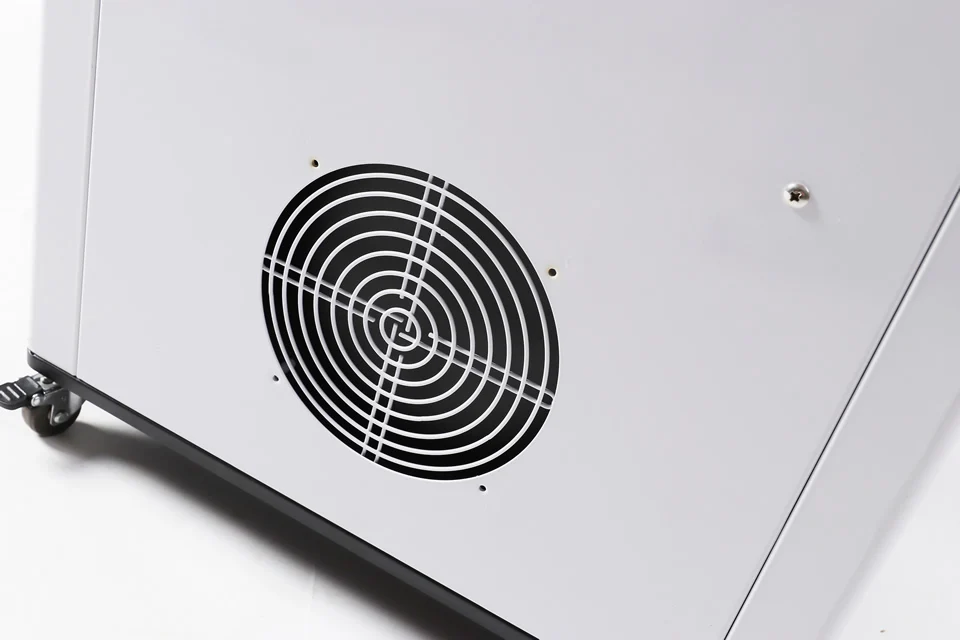

2.Fan

  •  DC brushless motor, built-in controller form, performance, quality more secure.
  •  stable operation, low noise, high efficiency, low power consumption, long working hours. No regular maintenance, lower cost.
  •  Wind wheel with vortex-style design, special alloy material, effectively prevent the rotor is corroded. Unique balance correction technology, so that the rotor run more stable and reliable. High air volume, high suction, higher filtration rate.



3.Filter system

  •  Quad filter design. Filter layer by layer to ensure that harmful fumes are filtered out more thoroughly. Purification rate of up to 99.97%.
  •  modular design, layers of protection. Initial, middle and high efficiency can be replaced individually, filter longer life, replacement costs lower.
  •  Internal unique sealing structure, coupled with special sealing materials, so that all the harmful substances through the filtration system, filter more efficient.
  •  Built-in active recycling filter cycle, to avoid the indoor air ,heating discharge outdoors, do not undermine the operating temperature and humidity environment.



4.Smoke collection device

  •  Machine coupled with universal smoking arm, free to change, positioning (length can be customized according to customer requirements). Installed at the end with a new set of hood, unique shape, smoking more efficient.
  • Installation is simple, easy to use, no additional pipe laying.

5.Safety certification and design standards, national patents

  •  meet CE, UL, WHO certification, safe and reliable.
  •  relies on design standards: "Indoor Air Quality Standards", GB21551.1-2008, GB / T 18801.
  • access to the state issued by the appearance of design patents and machine structure utility model patents, counterfeit study!



Product parameters



Product parameters

Single station

Double station

LCD models

 Into the air interface

               φ75mm

                 φ75mm*2

              φ75mm*2

 Input voltage

AC220V 50Hz

 AC220V 50Hz

AC220V 50Hz

 rated power

200W

200W

200W

 Wind speed

    24m/s

2×12 m/s

2×12 m/s

 Filter effect

0.3μm 99.99%

0.3μm 99.99%

0.3μm 99.99%

 Noise

<50dB

<55dB

<55dB

 Smoking pipe (standard)

Bamboo tube

50mm*L1.3M

Bamboo tube

50mm*L1.3M

Bamboo tube

50mm*L1.3M

 Air volume

360m³/h

360m³/h

360m³/h

 Size(mm)

W420×T245×H450mm

W420×T245×H450mm

W420×T245×H450mm

 Weight

(No smoking arms)

16kg

18kg

18kg








Carton
Box1: 47X61X20CM
Box2: 36x55x53CM



Widely used in various industries

Hotel clubhouse, beauty salon, moxibustion health center, hospital;
Electrical and electronic manufacturing: solder, immersion tin, reflow furnace;
Welding, cutting, printing, engraving, and coding of laser operations;
Chemical laboratory, electric welding, argon arc welding, plasma cutting, metal polishing turning;
LED manufacturing, automobile manufacturing, furniture production, electroplating, various jewelry manufacturing, and many other fields
