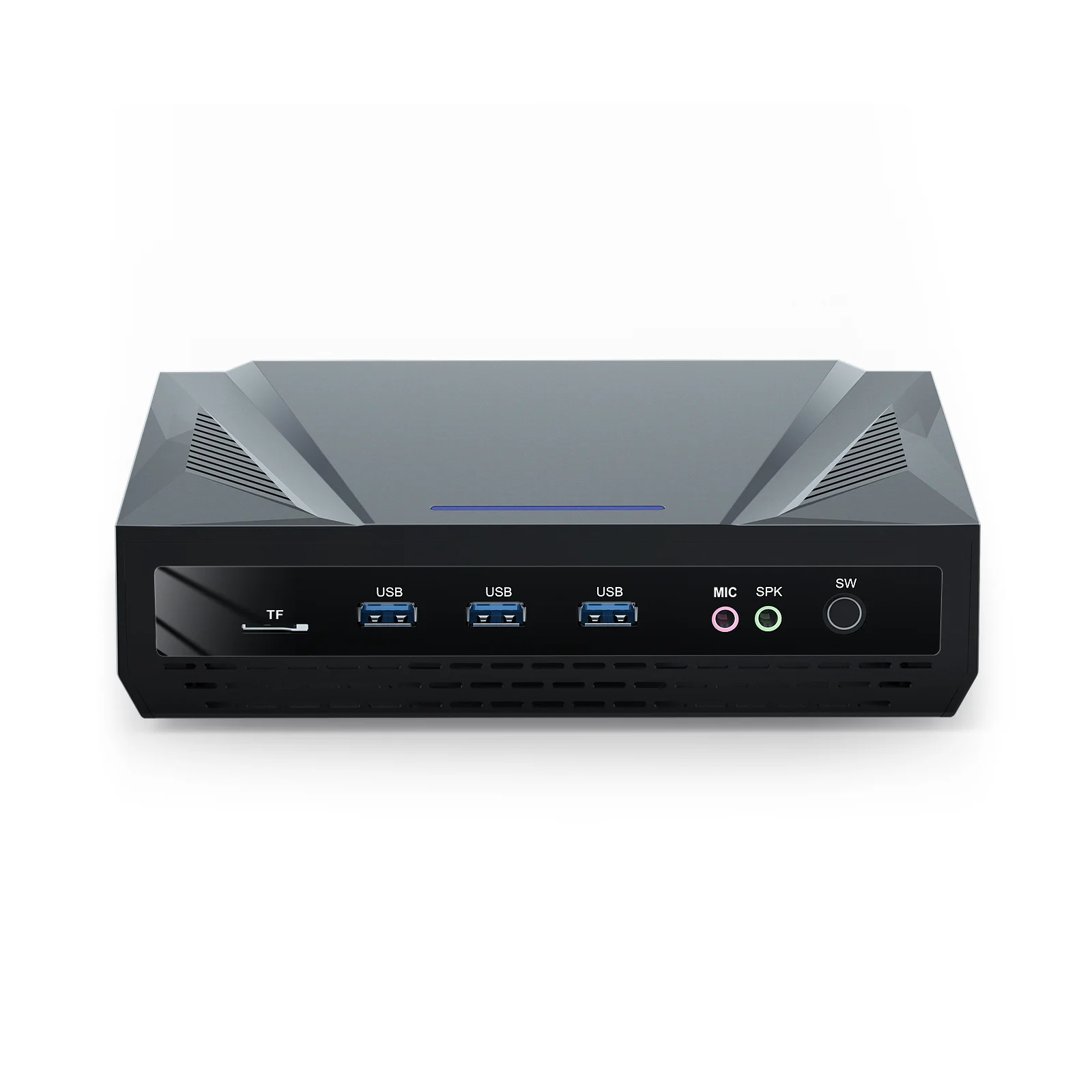

2023 12th Gen Core I7 Mini PC 1280P 8 Cores Triple Display Output M.2 PCIE NVMe SSD 32GB RAM Win11 Linux Computer Mini Gaming PC
US $214.47-243.47 / unit
1 unit(s)Minimum order
place of origin:
China
brand name:
VENOEN
model number:
M1
products status:
New
warranty(year):
3-Year
use:
For Home and Student
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
Contact us
Quik Detail
| place of origin | China |
|---|---|
| brand name | VENOEN |
| model number | M1 |
| products status | New |
| warranty(year) | 3-Year |
| use | For Home and Student |
| Hard Drive Type | SSD+HDD |
| Video Memory Type | With the main memory |
| operating system | Win10/ 11/Linux |
| processor type | Intel CORE I7/i5 |
| graphics card chipset | Integrated Card |
| ram type | DDR4 |
| hdd rotation speed | SSD |
| processor core | depend on CPU |
| processor series | Intel CORE I7/i5 |
| video memory | 32GB |
| video card | Intel UHD Graphics 750/730 |
| after-sales service | Return and Replacement |
| Memory | DDR4 2133/2400/2666MHz RAM, Max Upto 64GB |
| WIFI | Dual Band WiFi with BT |
| Processor | Core i5/i7/i9 processor |
| Product Name | M1 |
| Certification | CE/FCC/ROHS/BIS |
| Display port | HD-MI |
Product Detail
Product Description
Basic Information: | ||
CPU | Core i5-10200H - 4 Cores 8 Threads, 8M Cache, up to 4.10 GHz, Intel® UHD Graphics for 10th Gen Intel® Processors Core i5-1135G7 - 8 Cores 16 Threads, 16M Cache, up to 5.00GHz, Intel®UHDGraphics for 10th Gen Intel® Processors Core i7-10870H - 8 Cores 16 Threads, 16M Cache, up to 5.00GHz, Intel®UHDGraphics for 10th Gen Intel® Processors Core i7-1280P - 6 Cores 8 Threads, 24M Cache, up to 4.80GHz, Intel® Iris® Xe Graphics eligible Core i9-9880H - 8 Cores 16 Threads, 16M Cache, up to 4.80 GHz, Intel® UHD Graphics 630 Core i9-11900H - 8 Cores 16 Threads, 24M Cache, up to 4.90 GHz, Intel® UHD Graphics for 11th Gen Intel® Processors | |
TDP | 28 W | |
Memory | 2 x SO-DIMM DDR4 slot, Max 64GB | |
OS | Windows 11/Windows 10/Linux | |
PXE | YES | |
Auto Power On | Support Auto Power On Function | |
Power Adapter | 19V Power Input, supply 19V 7A power adapter within the package | |
Video | Intel® Iris® Xe Graphics eligible | |
Input/output port | ||
Switch | 1 x Power On/Off Switch | |
Power | 1 x 5.5mm 19V DC In | |
USB | 3x USB3.0+4xUSB2.0 | |
Display | 1 x HD-MI+1x DP+1x TYPE-C | |
LAN | 1x I226-V LAN | |
Audio | 3.5mm audio in / line out | |
Storage | ||
M.2 | 2 x M.2 slot for M.2 22*80 SSD | |
SATA | 1 x SATA3.0 for 2.5 inch HDD/SSDs | |
Wi-Fi | ||
Module | intel AC-3165（WIFI5，BT4.2) | |
Antenna | 2 x inner RF cables without external antennas | |
Power and Working Environment | ||
Input | DC100-240V AC/50-60Hz | |
Output | DC 19V-120W | |
Operating Temperature | 0/+70 Centigrade (32~140°F) | |
Storage Temperature | -20/+80 Centigrade (-68~176°F) | |
Relative Humidity | 10%~95% (non-condensing) | |
Product Dimension & Details | ||
Size | 192MM*130MM*50MM | |
Weight | Net 1.3kg, Gross 2.5kg | |
Shell | Aluminum+ABS | |
Cooling Mode | Full copper turbo fan | |
Package Content | ||
Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xSATA power&data cables | |
Optional | 1xHDMI cable, 1xUser Manual | |
OEM&ODM Service
We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo)
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
Related Products
Packing&Shipping
Packing List:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Company Introduction
VENOEN Technology Co., Limited was founded in 2013 in XuZhou as a mini computer developer and wholesaler, our factory is located
in Shenzhen, producing and supplying thin client and mini PC since 2006. There are 10 professional international sales person in
VENOEN overseas sales offices, most of them has 3 to 8 years international sales experience; 5 technical support team has 10 years
computer support experience and also support technical guidance in our factory since 2006.
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your
competitors;
in Shenzhen, producing and supplying thin client and mini PC since 2006. There are 10 professional international sales person in
VENOEN overseas sales offices, most of them has 3 to 8 years international sales experience; 5 technical support team has 10 years
computer support experience and also support technical guidance in our factory since 2006.
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your
competitors;
FAQ
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not
support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not
support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
