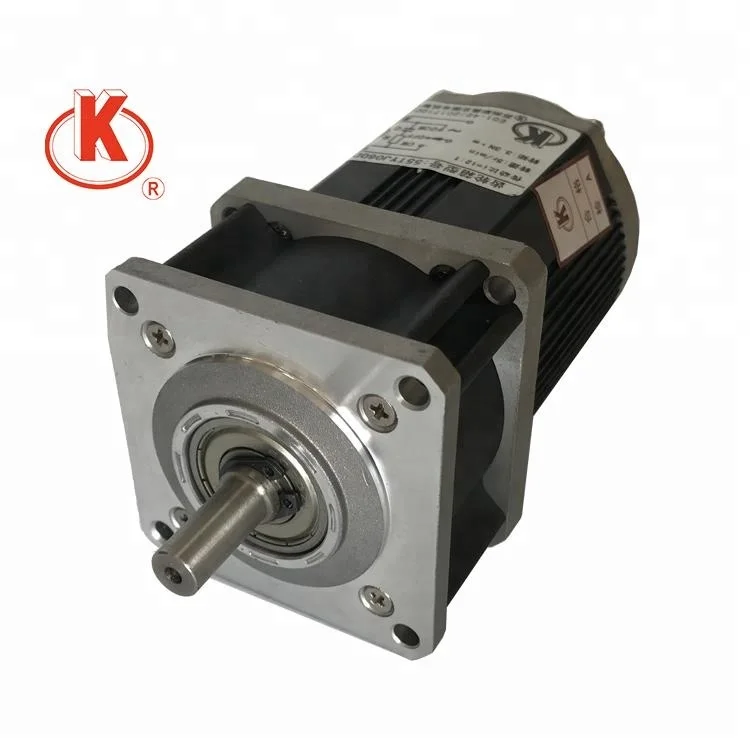

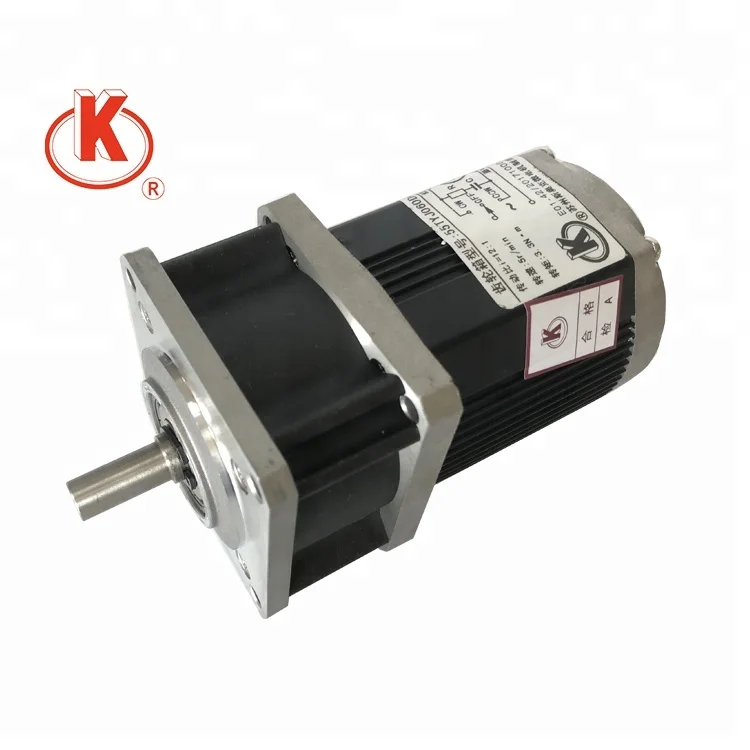

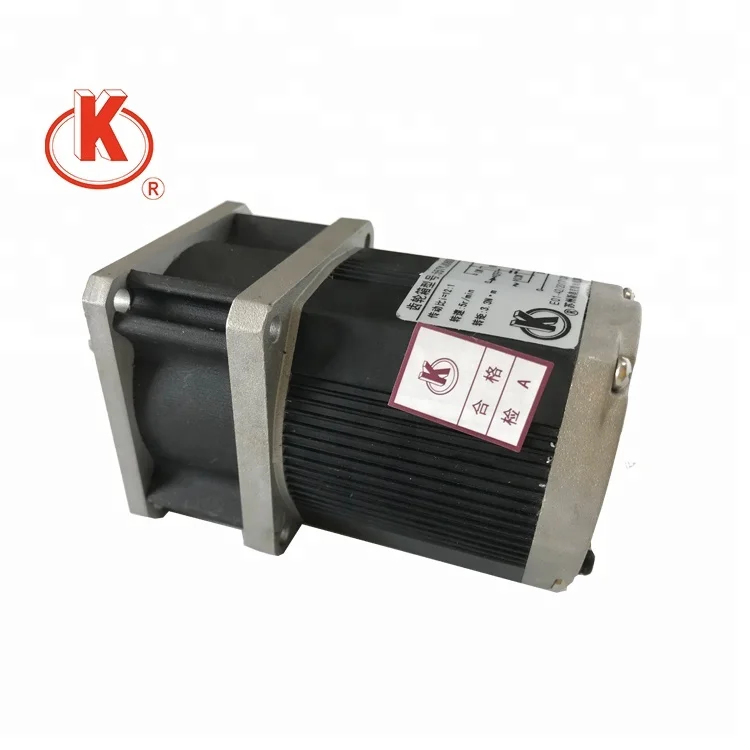

220V 55mm 10 RPM AC Gear Motor Single-Phase Frequency 50Hz

US $28.30-55.00 / piece
1 piece(s)Minimum order
Warranty:
Other
Place of Origin:
Jiangsu, China
Brand Name:
SOK MOTOR-10 rpm motor
Model Number:
55TYJ060A4-2AG5-10 rpm motor
Type:
Synchronous Motor
Frequency:
50Hz
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

Warranty

Other

Place of Origin

Jiangsu, China

Brand Name

SOK MOTOR-10 rpm motor

Model Number

55TYJ060A4-2AG5-10 rpm motor

Type

Synchronous Motor

Frequency

50Hz

Phase

Single-phase

Protect Feature

Drip-proof

AC Voltage

220V

Efficiency

Other

electric motor with reduction gear

220V 55mm low speed high quality electric motor with reduction gear

Certification

CCC CE RoHS

Reduction ratio

5:1

Input current

0.08A

Input power

16W

Speed

12RPM

Rated torque

1.62N.m

Capcitor

0.47uF/500V

Insulation class

B

N.W.

1.2kg

Product Detail

WHY CHOOSE US
Product Description

 The synchronous gear motor consists of synchronous motor and high reliable planetary gear box, which has following features :compact construction, constant speed, high torque. There will be no impact current when the motor start ,brake, reverse and stall instantly. The motors have certain holding torque, if they are excited by DC power, they will produce high holding torque.


In addition, the motors can start ,brake, reverse and stall instantly. They also can drive high inertial loading and are mainly used as driving devices.


The synchronous gear motor can achieve stepless variable speed to meet different requirement if they are driven by SOK's special inverter SV02-D4.

Ambient condition

1.Temperature:-25℃~ +40℃;
2.Relative humidity:≤95%;
3.Atmospheric pressure :74.8KPa(2500m);
4.Vibration:10~55Hz,double amplitude1.5mm;
5.Impact: 150m/s2

Typical application


Auto-testing equipments


Medical equipments

Timing belt drives

X-ray scanning

Feed mechanism of lathes

Textile machines


Electrical valve actuator

Cryogenic pump

Conveyor systems

Barrier gate

Remote control of switches rheostat

Printing,packaging machines

Antenna rotators

Auto-welding machines

Automatic production line

Specifications

Parameter of 10 rpm motor

Model
Voltage
Phase
Freq.
Reduction ratio
Input current
Input power
Output Speed
Rated torque
V
Hz
i
A
W
r/min
N.m
55TYJ060A4-2AG3
220
1
50
3:1
0.08
16
20
0.95
55TYJ060A4-2AG4
220
1
50
4:1
0.08
16
15
1.29
55TYJ060A4-2AG5
220
1
50
5:1
0.08
16
12
1.62
55TYJ060A4-2AG12
220
1
50
12:1
0.08
16
5
3.3
55TYJ060D4-2AG3
220
1
50
3:1
0.08
16
20
0.95
55TYJ060D4-2AG4
220
1
50
4:1
0.08
16
15
1.29
55TYJ060D4-2AG5
220
1
50
5:1
0.08
16
12
1.62
55TYJ060D4-2AG12
220
1
50
12:1
0.08
16
5
3.3
55TYJ060D4-2AG15
220
1
50
15:1
0.08
16
4
4.1
55TYJ060D4-2AG20
220
1
50
20:1
0.08
16
3
5
55TYJ060D4-2AG60
220
1
50
60:1
0.08
16
1
5
55TYJ060D4-2AG125
220
1
50
125:1
0.08
16
0.48
5


Note: The typical specifications above just for your reference. Please feel free to contact us if you can't find the motor you required. We are always here being ready to help.

Outline drawing

Dimension of 10 rpm motor
