24vdc Step Down 12vdc Voltage Regulator 24v to 12v Buck Module 5A 60W 24 Volt Dc to 12 Volt Dc Converter

US $3.31-3.55 / unit
10 unit(s)Minimum order
Network:
/
Place of Origin:
Guangdong, China
Brand Name:
WEMAXPOWER
Model Number:
WMX-DSD24S1205
Type:
DC/DC Converters
Output Type:
Single Phase
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

Network

/

Place of Origin

Guangdong, China

Brand Name

WEMAXPOWER

Model Number

WMX-DSD24S1205

Type

DC/DC Converters

Output Type

Single Phase

Output Current

5A

Output Frequency

/

Size

46*32*18mm

Weight

50g

Efficiency

93%

Product name

24 volt dc to 12 volt dc converter

Application

Car/Truck/Golf cart/E-Bike/Home applications.etc

Warranty

1 Year

Input Voltage

24Vdc

Output voltage

12Vdc

Function

Step-down Converter

Rated Power

60W

Certificate

CE & RoHS

Cooling way

Free air cooling

Waterproof

IP67

Customized support

YES

Product Detail

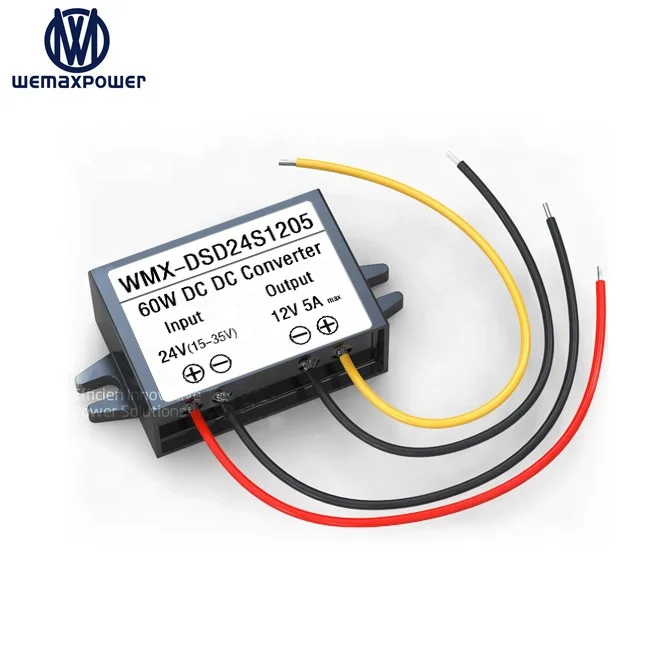

Waterproof 24vdc Step down 12vdc voltage regulator 24v to 12v buck module 5A 60W

24 volt dc to 12 volt dc converter



Hot  Sell

HOT SELL DC-DC  CONVERTER





24v to 12v 5a dc-dc converter



Feature

ØHigh quality components.
ØFull power, stable voltage & current output.
ØWide input voltage range .
ØWaterproof IP67 & anti-shock protection, ultra compact size, light weight.
ØIndustry grade product.
ØDie-cast plastic shell, epoxy potting.
ØNon-Isolated Module.

Specification

 Series NO.

 WMX-D24D12

 Model NO.

 WMX-DSD24S1205

 Product Name

 24v to 12v dc dc converter

 Input rated voltage

 24Vdc

 Input voltage range

 15-32Vdc

 Conversion Efficiency

 93%

 Output voltage

 12Vdc

 Output current

 5A

 Output rated power

 60W

 Working Temperature

 -20°c ~ +80°c

 Waterproof rating

 IP67

 Machine size

 46*32*18mm

 N. Weight

 50g

 Cooling way

 Free air convection

 Other

 Static bag packaging

        If you are not familiar with how to choose the appropriate converter module, you should know the power of load equipment (based on equipment label and parameter labeling) before purchasing. If you need to work for a long time, you should choose the power module with higher power. The actual power of load equipment is 30%~75% of the rated power of the module. Full load and overload have a great impact on the stability, temperature and service life of the module. At any time, it may cause irreparable damage.

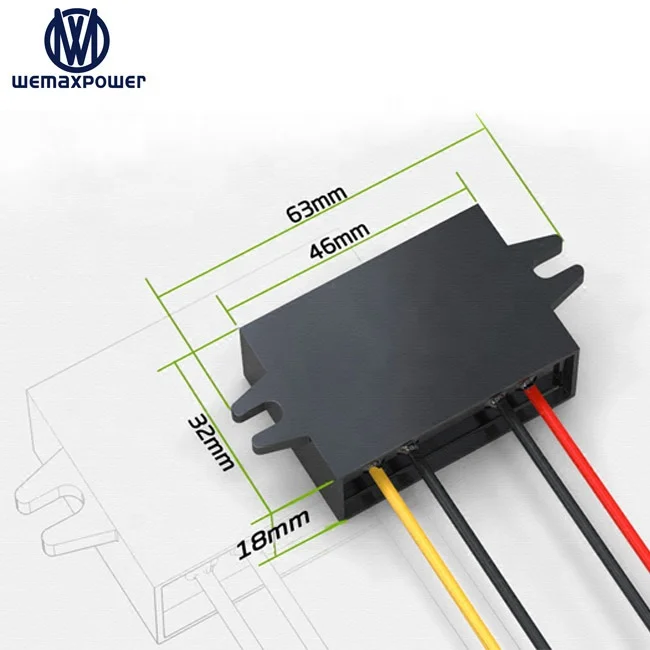

DC TO DC ConverterDimensiondimension



Introductiondc dc converter

Connectiondc dc converter



Applicationapplicationdc dc converter



Model Listdc converter

Shippingdc dc converter

FAQ

FAQ



Q1. How we work?

Since 2009, our factory has provided various power solutions for different projects worldwide. Including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.



Q2.What kind of products can you buy from us?
DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.



Q3. How do you ensure your product and service quality?

All our processes strictly adhere to ISO-9001 procedures. And we have 12 months quality warranty against delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item. Also, WEMAXPOWER staffs will always be there for you if anything needed.



Q4. If we don't find what we need on your website, what should we do? Do you make customize service as per customer's specific requirements?

Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements by email, we will check if we can develop them. We develop new models every month, and some of them may not yet be updated on our website. Or you can send us samples and we can develop the new models especially for you.



Q5. Can I buy 1 or 2 pieces of samples for testing before place bulk order?

Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you get it in your hand, you will be very satisfied. Moreover, with our excellent service and competitive price, we believe that we will be your good choice for power supply solution.



Q6. How can I order and make payment?

Once clear your requirement and determined which product is ideal for you, we will send pro-forma invoice to you. You can pay via TT bank transfer, Western Union or PAYPAL as you like!



Q7. If we find your bank account different as before, how should we respond?

Please don't send the payment and double check with us before arrange payment.(Bank details will be listed in every piece of pro-forma invoice.)



Q8. What is your Minimum Order Quantity?

Different products have different MOQ, generally speaking, our MOQ is 10pcs, please don't hesitate to check with us for specific items.



Q9. What about delivery date?

If we have stock of the item you need, we can send goods to you within 1-3 working days after receiving deposit or 100% payment into our bank account.

If we don't have free stock. The delivery date can be different for different products. Generally speaking, it will takes 1 to 4 weeks



Q10. What about shipping?

We can ship in small batches by way of air express or larger ones by the container, to save costs, you can either use your own assigned shipping agent or our cooperative forwarder. Please don't forget that we are located in the deepest sea port in China-Guangzhou Port, which means that we have the most convenient maritime transportation!
