25*30mm Heating Element 230v 200w Electrical Band Heaters Manufacturer
1 piece(s)Minimum order
type:
Band Heater
power source:
Electric
place of origin:
Zhejiang, China
brand name:
WZLC
voltage:
Other
warranty:
1 Year
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$4.00-10.00
1 piece (MOQ)
$4.00-10.00
5 pieces (MOQ)
$4.00-10.00
5 pieces (MOQ)
$4.00-10.00
5 pieces (MOQ)
$8.00-10.00
1 piece (MOQ)
$14.00-22.00
1 piece (MOQ)
$4.00-10.00
5 pieces (MOQ) Contact us
Quik Detail
| type | Band Heater |
|---|---|
| power source | Electric |
| place of origin | Zhejiang, China |
| brand name | WZLC |
| voltage | Other |
| warranty | 1 Year |
| working temperature range | 0 - 500 ℃ |
| material | Stainless Steel |
| key selling points | High-accuracy |
| core components | Other |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| Dimension(L*W*H): | Customized |
| Power(W) | 65-1000w |
| Certification:: | CE ISO9001 ROHS |
| Material | Brass,ceramic ,mica |
| Voltage: | customized |
| Application | injection molding machine |
| Working Life: | 1-5years |
| Max watt density | 5w/m2 |
| watt tolerance | +5%-10% |
| leakage current | <0.75mA/ KW |
| Condition | New |
| Warranty of core components | 1 Year |
| Applicable Industries | injection mould machine, injection machine |
| Weight | 0.5 KG |
Product Detail
Product Paramenters

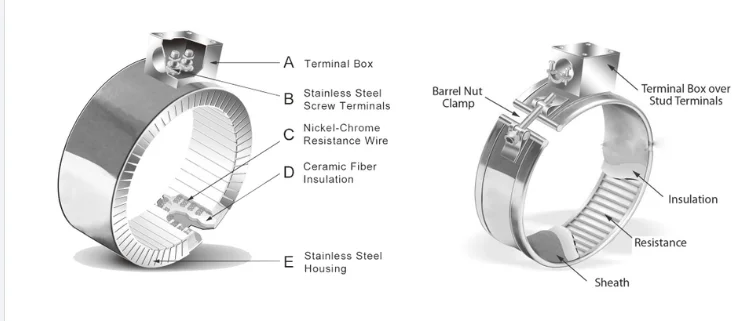

Stainless Steel mica band heater was made of stainless steel sheet, mica sheet, resistance wire/ strip , stainless steel sheet standard thickness is 0.3mm to 0.5mm, and in the middle , resistance wire/ strip wrap around the mica sheet, and add 1-2 pieces mica sheet again each side for insulation. They can be made to be many different kinds of shape as your requirement.Mica band heater can be made to be 110V 220V 380V also can be made to be DC voltage.
Main Features:
1.Heat-resistant, endure high temperature as 600℃.
2.Good insulation property,insulation resistance is bigger than 100MΩ.
3.Light weight, thin thickness,small volume,big power.
4.It can be easily designed any shapes according to demand, low cost.
Main Features:
1.Heat-resistant, endure high temperature as 600℃.
2.Good insulation property,insulation resistance is bigger than 100MΩ.
3.Light weight, thin thickness,small volume,big power.
4.It can be easily designed any shapes according to demand, low cost.
Details Images
Company Profile
Why Choose Us
Certifications
Product packaging
FAQ
Q1: Are you a factory?
Yes, We have more than 30 years of rich production experience,
Q2: What's your main products?
Our We Manufacture heating elements and trading all references raw material
Q3:Do you have limit MQQ for the customized logo & packing?
A: Our MQQ is 1PC for each reference.
Q4:How many days for the sample and mass production?
We usually The delivery time is 10-15 days
Q5:How's the quality control?
Always a pre-production sample before mass production; Always final inspection before shipment; also we accept the third-party for testing.
Q6: Why shall we choose you?
1).Factory direct price 2)Quality guarantee 3).Support OEM/ODM 4).Accept small orders.
