2m261 M32 Magnetron Original for the Microwave Oven
Other recommendations for your business
Contact us
Quik Detail
| after-sales service provided | None |
|---|---|
| warranty | None |
| type | Microwave Oven Parts |
| application | Commercial, Household |
| power source | Electric |
| place of origin | Shanghai, China |
| brand name | Panasonic |
| model number | 2M261-M32 |
| Product Name | 2m261 m32 magnetron Original for the microwave oven |
| power | 1000W |
| frequency | 2455MHZ |
| Filament current | 10A |
| Material | aluminum |
| Weight | 0.8KG |
| Fixed orifice size | 35mm*115mm |
| Shape size | 126mm*94mm*135mm |
| Cooling way | air cooling |
| Fixed way | Fixed up and down |
Product Detail
2m261 m32 magnetron Original for the microwave oven

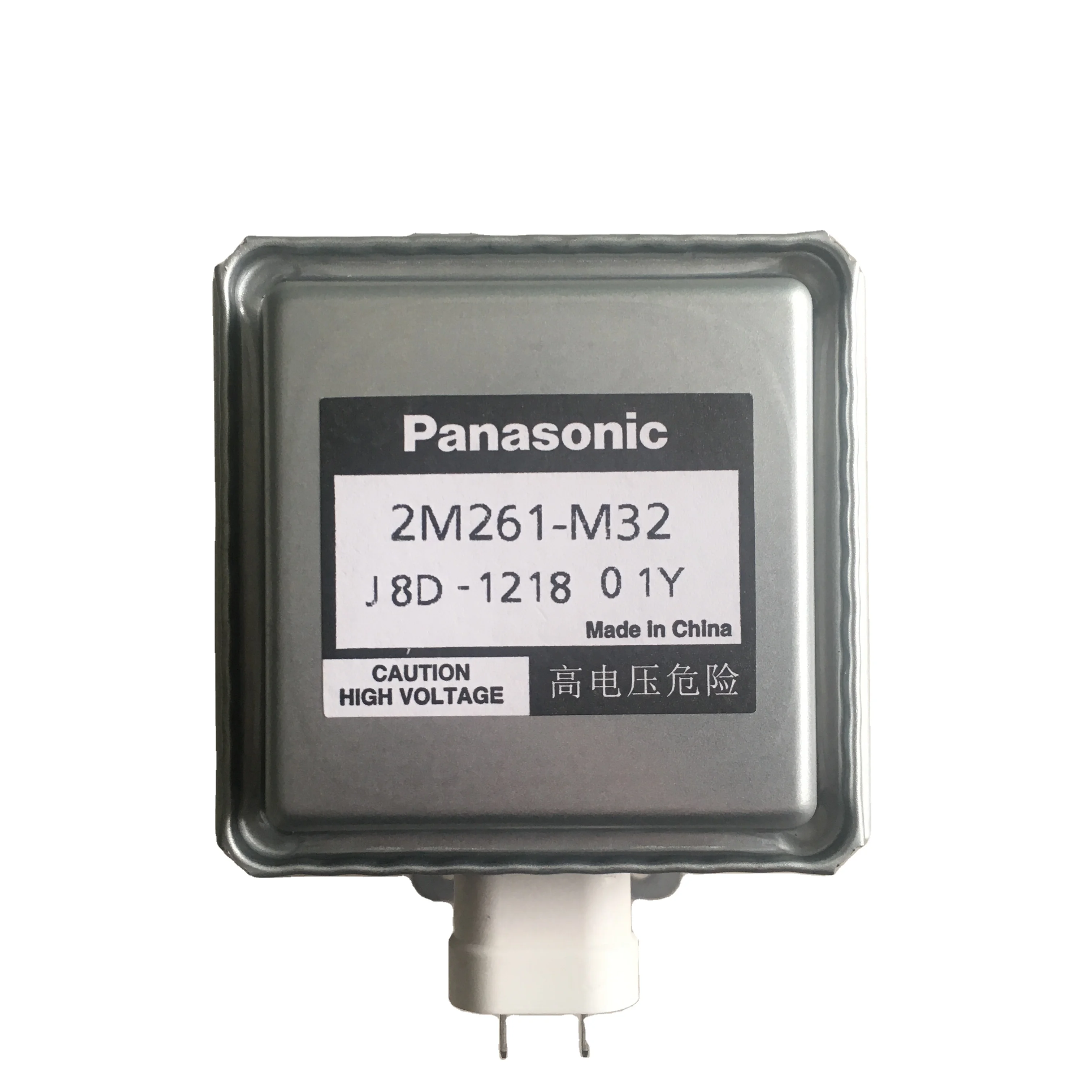

Product images:
Product principle:
Magnetron is the heart of the application of microwave equipment, therefore, the correct use of magnetron is essential for the maintenance of microwave equipment to work normally.Magnetron use notice:
A, load matching.
Whatever equipment require magnetron output load as far as possible do match, a standing wave big not only reflected power, it was able to actually received power is reduced, and can cause magnetron moding and cathode overheating, serious damage to the pipe, to avoid the happening of the moding, request power resistance too.
Second, the cooling.
Cooling is one of the working condition of ensure the normal order of the magnetron tube, high power magnetron anode commonly used water cooling, cathode filament draw out part and output ceramic window simultaneously forced air cooling.Bad will make pipe overheating and can't work normally, serious when will burn out the pipe.Should be forbidden under the condition of insufficient cooling work.
Three, the reasonable adjustment cathode heating power.Way to prevent cathode overheating is adjusted by the regulation to reduce the cathode heating power in order to avoid the microwave working instability caused by the power supply voltage fluctuation, magnetron anode voltage is usually composed of the leakage inductance of the transformer to provide power supply circuit, it can be stable magnetron anode current, make the microwave output power stability.
Product parameters:
| number | power | anode voltage | Filament voltage | filament current | frequency | cooling way | shape size | weight |
| 2M261-M32 | 1000W | 4.5V | 3.3V | 10A | 2455MHZ | water cooling |
(long)126*(wide)94*(high)135mm | 0.8KG |
The variable-frequency magnetron, air/water cooling, waveguide output.
Scope of application:
This product is a factory product panasonic Shanghai, do manual work is delicate, stable quality, suitable for industrial microwave drying/sterilization equipment use for a long time, fixed size: 35 * 115 mm, the fixed direction: up and down, fin direction: left and right sides.
Can adopt two cooling ways, air/water cooling water circulation way, because of the effect of heat dispelling better can prolong the service life of the magnetron.
Henan Xinhang microwave technology CO,.LTD main products including microwave magnetron, transformer, high voltage silicon stack, oil cooling transformer group, waveguide microwave and other components. Especially our magnetron water cooling jackets and microwave transformer groups(magnetron power supply) got patents from the State Intellectual Property Office in 2012.
2008 Beijing Olympic selected our company's transformer and other products as their central kitchen microwave oven.
If you have any questions,please send email to us,Thank you.
