3 Axis Atc Cnc Router Machine for Wood 2000x3000 1325 With Vacuum Table for Wood and Aluminum
US $2,000.00-2,600.00 / unit
1 unit(s)Minimum order
range of spindle speed(r.p.m):
1 - 24000 rpm
positioning accuracy (mm):
0.03
number of axes:
3
no. of spindles:
Single Phase
working table size(mm):
1300×2500
machine type:
CNC Router
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$999.00-2,300.00
1 unit (MOQ)
$1,350.00-1,800.00
1 unit (MOQ)
$1,999.00-3,500.00
1 piece (MOQ)
$600.00-1,500.00
1 unit (MOQ)
$1,000.00-3,000.00
1 piece (MOQ)
$600.00-1,550.00
1 unit (MOQ)
Contact us
Quik Detail
| range of spindle speed(r.p.m) | 1 - 24000 rpm |
|---|---|
| positioning accuracy (mm) | 0.03 |
| number of axes | 3 |
| no. of spindles | Single Phase |
| working table size(mm) | 1300×2500 |
| machine type | CNC Router |
| travel (x axis)(mm) | 1300 |
| travel (y axis)(mm) | 2500 |
| repeatability (x/y/z) (mm) | 0.03 |
| Spindle Motor Power (kw) | 3.2 |
| cnc or not | CNC |
| place of origin | Shandong, China |
| brand name | KAMOTEC |
| voltage | 220V/380V |
| dimension(l*w*h) | customization |
| power (kw) | 4.5 |
| weight (kg) | 1400 |
| control system brand | NC Studio, Mach3, DSP, RichAuto |
| warranty | 1 Year |
| key selling points | Competitive Price |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| core components | Bearing, motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox |
| Product name | CNC Wood Working Machine |
| Application | Acrylic MDF Plastic Fabric Wood |
| Keywords | Woodworking Engraving Machine |
| After-sales Service Provided | Service Machinery Overseas |
| Spindle | Air Cooling Spindle |
| Control system | NcStudio Control System |
| Function | Wood Acylic Plywood MDF Engraving |
| Transmission | Taiwan TBI Ball Screw |
| Showroom Location | Jinan China |
| Spindle power | 3.5KW / 4.5KW / 6KW |
Product Detail
Product Description
Kamotec cnc adopt most suitable spare parts for users from different countries for convenient use & maintenance, and
finished machine is strictly customized, humanized design of cnc protect the safety of the operator.
finished machine is strictly customized, humanized design of cnc protect the safety of the operator.
This classic three-axis woodworking engraving machine is very suitable for users who operate the CNC router for the first time. It is easily operated by DSP control with handle, machine does not need to be connected to computer separately and working speed is faster than mach3.
If users do not need to engrave complex patterns or frequently change different tools, and need machine carve on various materials like wood or soft metal, this is an ideal choice with economic cost.
Specification
X-Y-Z axis working area | 1300*2500*200mm |
Repositioning resolution | 0.02mm |
X-Y movement | Rack and pinion, gear drive/Taiwan |

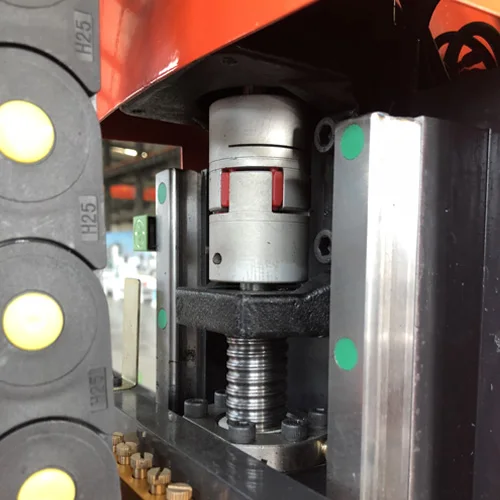

Z movement | Ball screw drive/Germany |
Guide | Linear 20mm/25mm square/Taiwan |
Spindle power | 3.2 KW cooling spindle |
Spindle speed | 24000rpm |
Inverter power | 3.2KW Inovance |
Drive motors | Servo Motor |
Working voltage | 380V/220V |
Command code | G code |
Computer interface | USB 2.0 |
Reduce | Motovario |
Software | Artcam , Alphacam copy |
Standard equipment included | 1.Oil lubrication system |
2.Dust hood | |
Optional | Vacuum cleaner |
5.5KW vacuum pump/ T-slot working table |
Details Images
Sample&Application
1.Woodworking:wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc
2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould ,etc
3.Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc.
4.Decoration:acrylic,density board,artificial stone,organic glass,soft metals like aluminum,copper, etc.
Packing & Delivery
Wooden cases packing
1.we have one year warranty, if you have any problems, please contact us.(warranty for the spare parts)
2.we have 24h online service.
3.You can come to our factory to learn how to use the machine or our engineers available to your country to teach you how to use the machine.
4.we have complete English instructions and videos teach you how to use the machine.
