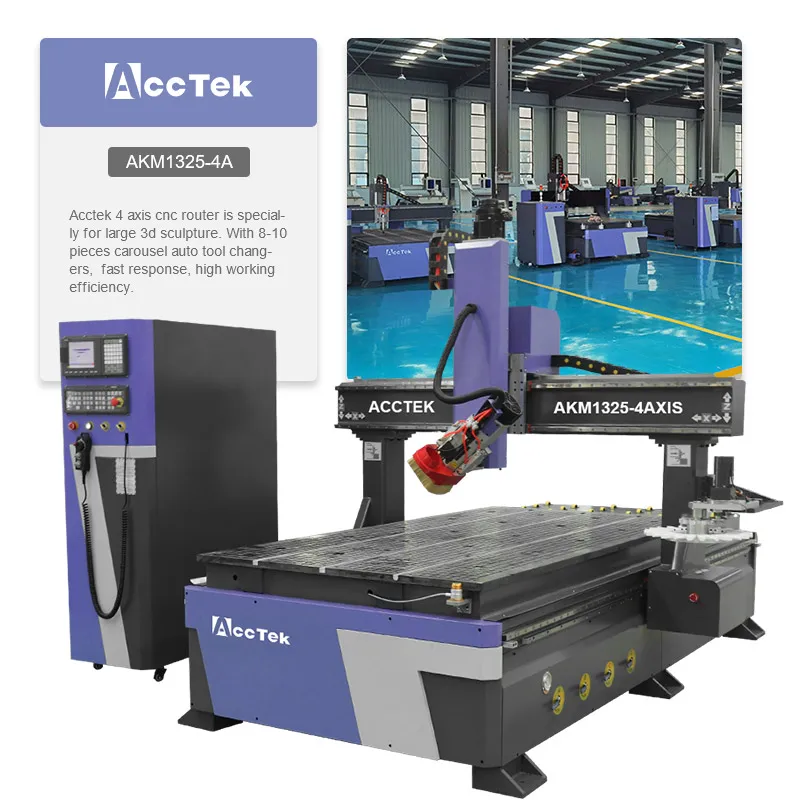

360 Degree Rotation Cnc Router 4 Axis Spindle Rotate Cnc Router 4 Axis Atc Furniture Cnc Wood Router 1325
US $9,500.00-12,900.00 / set
1 set(s)Minimum order
range of spindle speed(r.p.m):
1 - 24000 rpm
positioning accuracy (mm):
0.03 mm
number of axes:
4
no. of spindles:
Single Phase
working table size(mm):
1300*2500
machine type:
CNC Router
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$7,500.00-9,000.00
1 unit (MOQ)
$49,000.00-61,000.00
1 set (MOQ)
$17,200.00-17,500.00
1 set (MOQ)
$3,100.00-3,300.00
1 set (MOQ) Contact us
Quik Detail
| range of spindle speed(r.p.m) | 1 - 24000 rpm |
|---|---|
| positioning accuracy (mm) | 0.03 mm |
| number of axes | 4 |
| no. of spindles | Single Phase |
| working table size(mm) | 1300*2500 |
| machine type | CNC Router |
| travel (x axis)(mm) | 1300 mm |
| travel (y axis)(mm) | 2500 mm |
| repeatability (x/y/z) (mm) | 0.03 mm |
| Spindle Motor Power (kw) | 9 |
| cnc or not | CNC |
| place of origin | Shandong, China |
| brand name | ACCTEK |
| voltage | 220V/380V,50/60HZ |
| dimension(l*w*h) | 3900*2250*1950mm |
| power (kw) | 9 |
| weight (kg) | 1500 |
| control system brand | Syntec |
| warranty | 1.5 years |
| key selling points | Automatic |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| core components | Bearing, motor, Pump, Gear, PLC, Engine, Gearbox |
| Control system | Syntec 60W-E control system |
| Spindle power | 9.0kw air cooling spindle |
| Spindle speed | 0-18000 rmp/min |
| Driving system | yaskawa servo motor and driver |
| Transmission | Taiwan Hiwin linear rail,square orbit |
| driver Inverter | Fuling inverter/Delta |
| software | type3,artcut,artcam,ucancam |
| color | customized |
| Weight | 1800kg |
| Condition | New |
| Applicable Industries | hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Warranty of core components | 1.5 years |
Product Detail
Product Description
4-axis milling involves the same processes involved in 3-axis machining, where a cutting tool is used to remove material from a piece to create the desired shape and profile. However, in the case of 4-axes machining, milling is performed on an additional axis. A 4-axis CNC machine operates on the X,Y and Z axes like a 3-axis machine, but it also includes rotation around the X-axis, which is called the A-axis. This is the 4th axis that’s added to our machining process. In most cases, the workpiece will be rotated to allow for cutting to occur around the B-axis.
4-axis milling is useful when holes and cut-outs need to be made in the side of a piece or around a cylinder. They can provide quick and efficient work based off computer numerical inputs for precise results.
Features and Advantages:
1. Acctek 4 axis cnc routeris specially for 4D work , the A axis can rotate +/- 180 degree,
The 4 axis cnc router's main parts are all from world famous suppliers, such as Syntec control system, Yaskawa servo motors, Shimpo reducer, HSD HQD Changsheng air cooling spindle, Delta inverter, all components are from global leaders. This ensures the 4 axis cnc router has a good performance when working.
2. A axis can swing 180 degree, so the machine can process circular materials easily.
4. With DSP controller system, it is convenient and there is no need computer, save a lot of space.
4-axis milling is useful when holes and cut-outs need to be made in the side of a piece or around a cylinder. They can provide quick and efficient work based off computer numerical inputs for precise results.
Features and Advantages:
1. Acctek 4 axis cnc routeris specially for 4D work , the A axis can rotate +/- 180 degree,
The 4 axis cnc router's main parts are all from world famous suppliers, such as Syntec control system, Yaskawa servo motors, Shimpo reducer, HSD HQD Changsheng air cooling spindle, Delta inverter, all components are from global leaders. This ensures the 4 axis cnc router has a good performance when working.
2. A axis can swing 180 degree, so the machine can process circular materials easily.
4. With DSP controller system, it is convenient and there is no need computer, save a lot of space.
Technical parameter
Lubrication system | Manual lubrication system |
Transmission | X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw X,Y axis: Taiwan hiwin square guide rails with 20mm |
Details Images

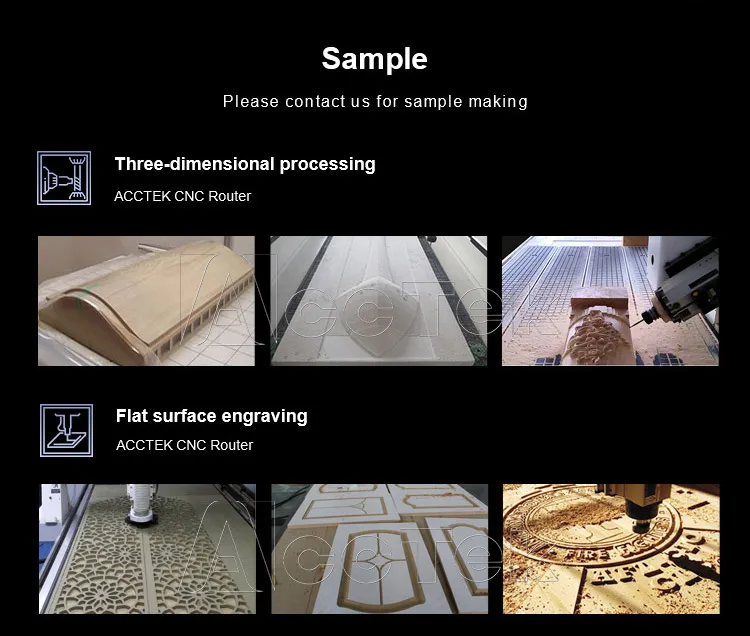

Application industry
1.Woodworking industry: solid wood furniture, custom furniture, furniture decoration, musical instrument manufacturing, wooden handicrafts, art models, artistic font characters, logos, plate plane carving, artistic murals, screen relief carving and cutting, decoration processing, gift packaging, wave boards, Cutting the three-dimensional surface and shape of various wooden industrial products such as electrical appliances, sporting goods, etc.
Mold industry: It can engrave various molds, wooden molds, fonts, aviation wooden molds, propellers, building models, sand table models, motorboat models, automobile foam molds, etc.
2.◆ Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board,epoxy resin, ABS, PP, PE and other carbon mixed compounds.
◆ Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
◆ Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.
◆ Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.
Mold industry: It can engrave various molds, wooden molds, fonts, aviation wooden molds, propellers, building models, sand table models, motorboat models, automobile foam molds, etc.
2.◆ Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board,epoxy resin, ABS, PP, PE and other carbon mixed compounds.
◆ Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
◆ Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.
◆ Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.
Company Profile
Jinan AccTek Machinery Co.,Ltd specializes in manufacturing CNC Router and Laser machines.
Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty. Components for our machines are sourced from world class suppliers and innovators in machine control. Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.
Now we own two workshops,one for cnc router and another for laser machines. Which covers 3000,00 square meters. There are 40 members in manufacturing and 21 members for marketing and service.
All of our cnc machine appraoched CE Standard quality test ,America certificate
Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty. Components for our machines are sourced from world class suppliers and innovators in machine control. Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.
Now we own two workshops,one for cnc router and another for laser machines. Which covers 3000,00 square meters. There are 40 members in manufacturing and 21 members for marketing and service.
All of our cnc machine appraoched CE Standard quality test ,America certificate
Our Services
Pre-sales service
* In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products.
* Every machine must be tested before delivery, all of them are absolutely qualified.
*We have many exhibitions many years, a lot of clients was coming to our booth for further communication.
*24-hours online Inquiry and consulting support.
*. Sample testing support.
*. We welcome you to visit our factory.
After-sales service
* User manual and Installation video will be sent to you together with machine.
* Provide online technical support, and, the engineer can be sent to your local to install or adjust if necessary.
* 24 months guarantee of the whole machine.
* 12 months warranty for Main parts(excluding the consumables and belongs to the user irregularities operating), shall be changed free of charge if there is any quality problem during the warranty period.
* Provide the consumable parts at an agency price when you need replacement in future.
* User manual and Installation video will be sent to you together with machine.
* Provide online technical support, and, the engineer can be sent to your local to install or adjust if necessary.
* 24 months guarantee of the whole machine.
* 12 months warranty for Main parts(excluding the consumables and belongs to the user irregularities operating), shall be changed free of charge if there is any quality problem during the warranty period.
* Provide the consumable parts at an agency price when you need replacement in future.
