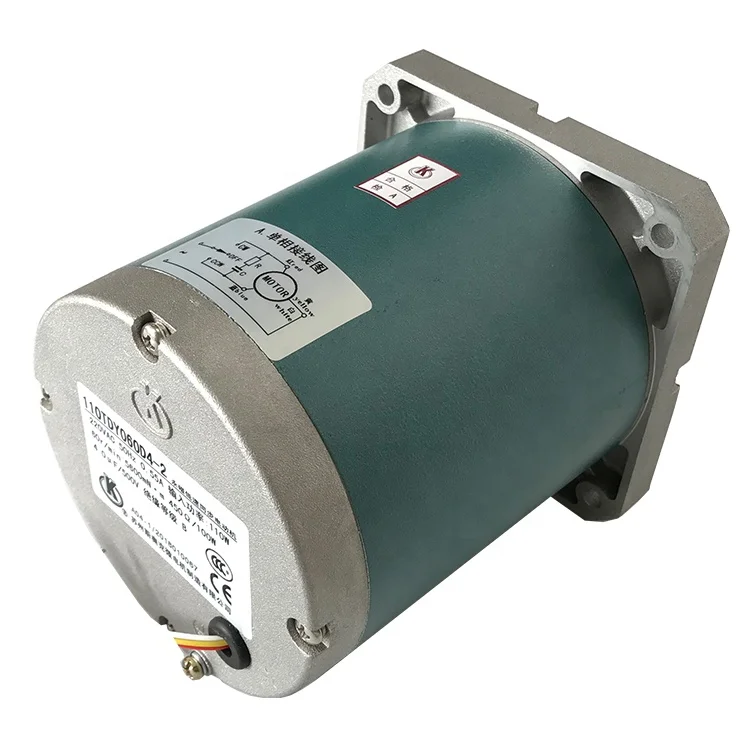

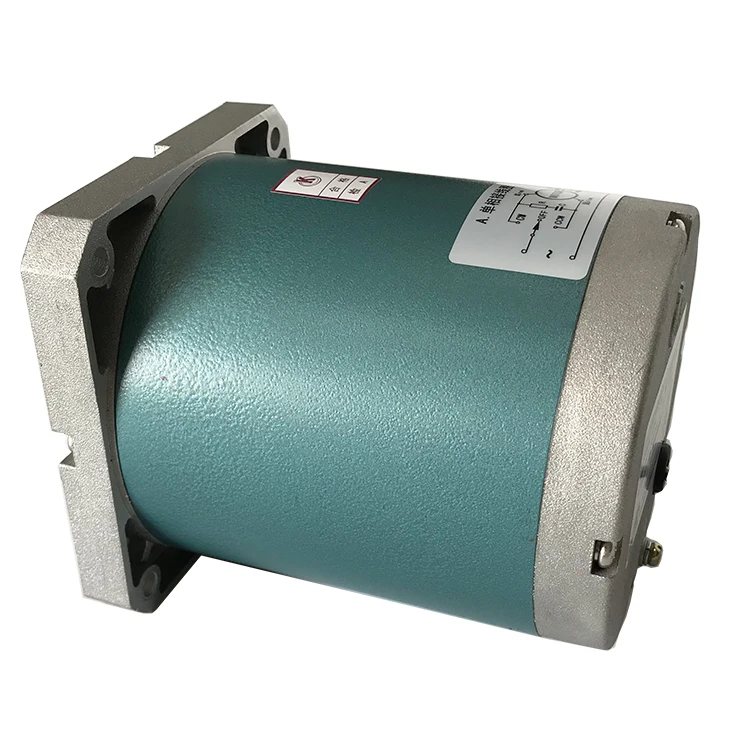

380V 110mm High Torque Low Speed Electric Motor

US $47.00-85.00 / piece
1 piece(s)Minimum order
Place of Origin:
Jiangsu, China
Brand Name:
380V 110mm high torque low speed electric motor
Model Number:
110TDY115S5-2
Type:
Synchronous Motor
Frequency:
50Hz
Phase:
Three-phase
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

Place of Origin

Jiangsu, China

Brand Name

380V 110mm high torque low speed electric motor

Model Number

110TDY115S5-2

Type

Synchronous Motor

Frequency

50Hz

Phase

Three-phase

Protect Feature

Drip-proof

AC Voltage

380V

Efficiency

Other

Certification

CCC, ce, rohs, BV

high torque low speed electric motor

380V 110mm 380V 110mm high torque low speed electric motor

Speed

115.38RPM

Input current

0.4A

Input power

130W

Max. torque

6000mN.m

Rated torque

5400mN.m

Starting torque

2700mN.m

Insulation class

B

N.W.

6.0kg

Product Detail

WHY CHOOSE US
Product Description

 PM slow speed synchronous motors is one kind of totally enclosed motor, which can naturally turn at slower speeds(72 or 60RPM).
For even slower speeds planetary gear reducers are offered. SOK synchronous motors produce very slow speed with modest gear reductions.

Ambient condition

1.Temperature:-25℃~ +40℃;
2.Relative humidity:≤95%;
3.Atmospheric pressure :74.8KPa(2500m);
4.Vibration:10~55Hz,double amplitude1.5mm;
5.Impact: 150m/s2

Typical application

Auto-testing equipment

Medical equipment

Timing belt drives

X-ray scanning

Textile machines

Electrical valve actuator


Cryogenic pump

Heat exchanger

Remote control of switches rheostat

Printing,packaging machines

Antenna rotors

Auto-welding machines

Specifications

Parameter of Nema 42 synchronous motors

Model
Voltage
Phase
Freq.
Syn. Speed
Input current
Input power
Max. torque
Rated torque
Starting torque

V

Hz
r/min
A
W
mN.m
mN.m
mN.m
110TDY060A4-2
220
1
50
60
0.50
90
5500
5000
2000
110TDY060D4-2
220
1
50
60
0.55
110
6000
5600
2700
110TDY060S4-2
220
3
50
60
0.65
120
7500
7000
3500
110TDY060S5-2
380
3
50
60
0.42
130
7500
7000
3500
110TDY115A4-2
220
1
50
115.38
0.60
90
3800
3400
1600
110TDY115D4-2
220
1
50
115.38
0.60
110
4000
3600
1700
110TDY115S4-2
220
3
50
115.38
0.70
130
6000
5400
2700
110TDY115S5-2
380
3
50
115.38
0.40
130
6000
5400
2700


Note: The typical specifications above just for your reference. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

Outline drawing

Dimension of Nema 42 synchronous motors
