3kva 5kw 5.5kw 3.5kw 1kw 1kva 2kw 3kw 4kw Pure Sine Wave Off Grid Mppt Low Frequency Hibrid Solar Hybrid Panel Inverter 12v 5 Kw
US $97.00-108.00 / piece
1 piece(s)Minimum order
Place of Origin:
Guangdong, China
Model Number:
XD-lf Solar Hybrid Inverter
Brand Name:
Xindun
Input Voltage:
12v/24v/48v
Output Voltage:
110VAC/120VAC/220VA/230VAC/240VAC
Output Current:
0~30A
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$1,770.00-1,775.00
1 piece (MOQ)
$126.00-129.00
1 piece (MOQ)
Contact us
Quik Detail
| Place of Origin | Guangdong, China |
|---|---|
| Model Number | XD-lf Solar Hybrid Inverter |
| Brand Name | Xindun |
| Input Voltage | 12v/24v/48v |
| Output Voltage | 110VAC/120VAC/220VA/230VAC/240VAC |
| Output Current | 0~30A |
| Output Frequency | 50hz~60hz |
| Output Type | Single Phase |
| Size | 500*300*140mm~530*335*150mm |
| Type | DC/AC Inverters |
| Inverter Efficiency | >85% |
| Weight | 12kg~26kg |
| Product name | low frequency hibrid solar hybrid panel inverter |
| Color | White+Black solar inverter |
| Battery type | lifepo4 battery/lithium ion battery/Lead acid battery |
| Output wave form | pure sine wave output inverter |
| Technology | CPU control |
| Protection | Overload,over voltage,shortcut |
| Rated power | 3kva 5kw 5.5kw 3.5kw 1kw 1kva 2kw 3kw 4kw 5 kw |
| Frequency | low frequency solar inverter |
| OEM | Accept OEM |
| Application | Household Device/Office Equipment/Industrial Equipment/DC Loads |
| Certificate | ce |
| Warranty | 1~12 monthes |
Product Detail
提示信息
Subtitle/CC
Speed
Quality
Audio Track
Speed
Subtitle/CC
Audio Track
Quality

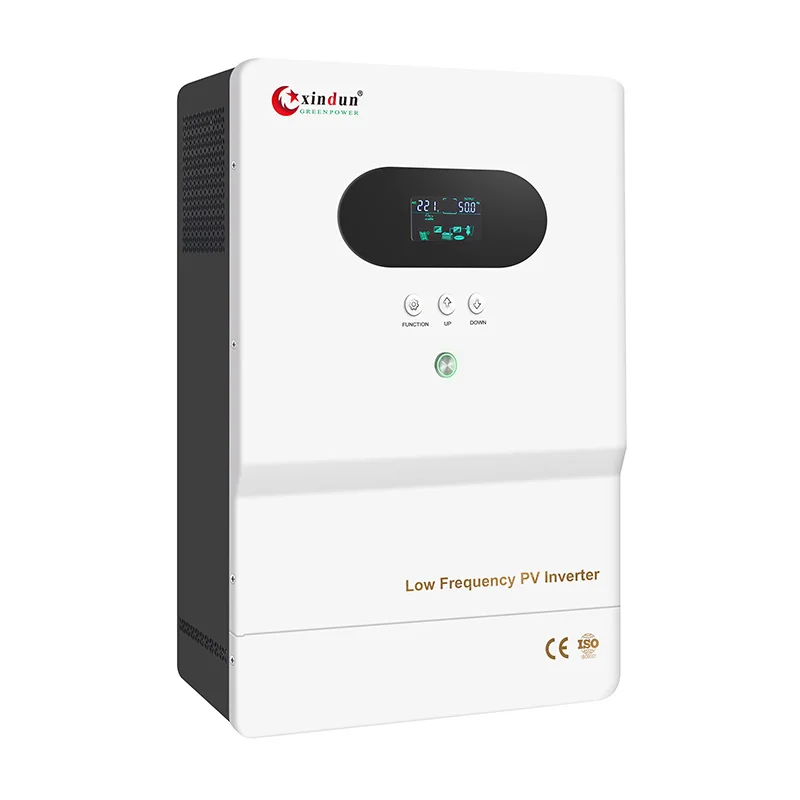

Product Description
1. Pure sine wave, toroidal low loss transformer, customizable mode dual output voltage.
2.Smart LCD show equipment status and parameters.
3.The adjustable mains charging current range is 0~30A.
4.Suffer 3 times peak power, ensure the safe and stable operation of the equipment.
5.Support diesel and gasoline generators, suitable for various power grid.
6.Suitable for industrial and residential used, wall-mounted desigm.
2.Smart LCD show equipment status and parameters.
3.The adjustable mains charging current range is 0~30A.
4.Suffer 3 times peak power, ensure the safe and stable operation of the equipment.
5.Support diesel and gasoline generators, suitable for various power grid.
6.Suitable for industrial and residential used, wall-mounted desigm.
LF Series Model
How to Use Inverter?
Inverter Technical Parameters
Specification | ||||||||||||||||||
Model: LF/LF-T | 15212/24/48 | 20212/24/48 | 30224/48 | 40224/48 | 50248 | 60248 | 70248 | 80248 | ||||||||||
Rated Power | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W | 8000W | ||||||||||
Battery Voltage | 12/24/48VDC | 24/48VDC | 48VDC | |||||||||||||||
Size(L*W*Hmm) | 470x300x148 | 530x335x158 | 684x430x250 | |||||||||||||||
Packing Size(L*W*Hmm) | 545x385x223 | 605x420x233 | 705x485x315 | |||||||||||||||
N.W.(kg) | 13.5 | 18 | 20 | 22 | 24 | 26 | 28 | 47 | ||||||||||
G.W.(kg) | 15 | 19.5 | 21.5 | 24 | 26 | 28 | 30 | 54 | ||||||||||
Installation Method | Wall-Mounted | |||||||||||||||||
Parameter | ||||||||||||||||||
Input | DC Input Voltage Range | 10.5-15VDC（Single battery voltage） | ||||||||||||||||
AC Input Voltage Range | 80VAC~133VAC(105VAC)/85VAC~138VAC(110VAC)/90VAC~143VAC(115VAC)/95VAC~148VAC(120VAC) 170VAC~275VAC(220VAC)/180VAC~285VAC(230VAC)/190VAC~295VAC(240VAC)(1000W~7000W ) 87VAC~123VAC(105VAC)/92VAC~128VAC(110VAC)/97VAC~133VAC(115VAC)/102VAC~138VAC(120VAC) 185VAC~255VAC(220VAC)/195VAC~265VAC(230VAC)/205VAC~275VAC(240VAC)(8KW~12KW) | |||||||||||||||||
AC Input Frequency Range | 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz) | |||||||||||||||||
Max AC charging current | 0~30A(Depends on model) | |||||||||||||||||
AC charging method | Three-stage (constant current, constant voltage, floating charge) | |||||||||||||||||
Output | Efficiency(Battery Mode) | ≥85% | ||||||||||||||||
Output Voltage(Battery Mode) | AC105V~120V model: 105VAC±2%/110VAC±2%/115VAC±2%/120VAC±2%(can be set) AC220V~240V model: 220VAC±2%/230VAC±2%/240VAC±2%(can be set) | |||||||||||||||||
Output Frequency(Battery Mode) | 50/60Hz±1%(can be set) | |||||||||||||||||
Output Wave(Battery Mode) | Pure Sine Wave | |||||||||||||||||
Efficiency(AC Mode) | ≥99% | |||||||||||||||||
Output Voltage(AC Mode) | AC 105V~120V model: 105VAC±10%/110VAC±10%/115VAC±10%/120VAC±10%(can be set) AC 220V~240V model: 220VAC±10%/230VAC±10%/240VAC10%(can be set) | |||||||||||||||||
Output Frequency(AC Mode) | Follow input | |||||||||||||||||
Output waveform distortion (Battery Mode) | ≤3%（Linear load） | |||||||||||||||||
No load loss(Battery Mode) | ≤1% rated power | |||||||||||||||||
No load loss(AC Mode) | ≤2% rated power（ charger does not work in AC mode） | |||||||||||||||||
No load loss (Energy saving Mode) | ≤10W | |||||||||||||||||
Insidc Solar controller (Optional) | Charging Mode | MPPT | ||||||||||||||||
Charging current | 30A~60A | 60A~100A | 80A~100A | |||||||||||||||
PV Array Maximum Power | 12V system: 420W(30A)/560W(40A)/ 700W(50A)/840W(60A); 24V system: 840W(30A)/1120W(40A)/ 1400W(50A)/1680W(60A); 48V system : 1680W(30A)/2240W(40A)/ 2800W(50A)/3360W(60A) | 24V system : 1680W(60A)/2240W(80A)/2800W(100A); 48V system : 3360W(60A)/4480W(80A)/5600W(100A) | 4480W(80A)/5600W(100A) | |||||||||||||||
Max PV Input Voltage (Voc) (At the lowest temperature) | 12V/24V system: 120VDC; 48V system: 180VDC | |||||||||||||||||
MPPT tracking range | 12V system: 15V-80V; 24V system: 30V-100V; 48V system : 60V-140V | |||||||||||||||||
Standby loss | ≤3W | |||||||||||||||||
Maximum conversion efficiency | ＞95% | |||||||||||||||||
Battery Type | Custom battcry | Charging and discharging parameters of different types of batteries can be set through the operationpanel by oneself | ||||||||||||||||
Protection | Battery lowvoltage alarm / Battery lowvoltage protection / Battery overvoltage alarm / Battery overvoltage protection / Battery overvoltage recovery voltage / Overload power protection / Inverter output short circuit protection / Temperature protection | |||||||||||||||||
*If you want to get other watts information, Please do not hesitate to contact us!
Feedback from Customers
Company Profile
FAQ
Q1: Do you support OEM?
A1: Yes. OEM & ODM are available.
Q2: Do you have any MOQ?
A2: Yes, we have MOQ for mass production, it depends on the different models. 1~10pcs sample order is available. Welcome to take samples for testing.
Q3: What kind of certificate you have?
A3: ISO, CE,IEC etc. All series product pass different laborary testing according to your special requirements.
Q4: How is your after-sale service?
A4: We provide 3 years warranty and 1% sapre parts for free.
We have specialized after-sales service engineers to provide professional after-sales service and technical support.
Q5: Does your company also provide other solar products except Inverter?
A5: Yes, we also provide other solar products for the whole solar power systems, such as solar charge controllers, solar panels, off grid solar inverters, on/off grid in one inverters, batteries, and other accesories related to the solar power system.
Q6: How to choose a right inverter?
A6: Tell us your demand, then our sales will recommend a suitable inverter to you.
Q7 How about the delivery time?
A7: 3- 7 days for sample; 10-20 days for bulk order.
Q8: How to solve the technical problem?
A8: 24 hours after-service consultancy just for you and to make your problem to solve easily.
