4-20ma /rs485 Output Digital Liquid Control Flow Meter , Intelligent Electromagnetic Flowmeter for Sewage Wastewater
1 set(s)Minimum order
warranty:
1 years
customized support:
OEM
place of origin:
Shaanxi, China
brand name:
kexlimice
model number:
ESMEMF
type:
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Digital
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$21.50-87.50
20 boxes (MOQ)
$9.30-14.30
2 pieces (MOQ)
Contact us
Quik Detail
| warranty | 1 years |
|---|---|
| customized support | OEM |
| place of origin | Shaanxi, China |
| brand name | kexlimice |
| model number | ESMEMF |
| type | Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Digital |
| Name | electromagnetic flow meter sea water flow measuring instruments |
| Nominal Diameter | DN10~DN3000 |
| Measured medium | conductive liquid,sewage,sea water etc. |
| Medium temperature | -20~180℃ |
| Electrode Material | SS316,HB,HC,Titanium,Tantalum,Platinum-iridium,Tungsten Carbide |
| Lining Material | PTFE,FEP,Neoprene rubber,Polyurethane rubber |
| Connection Form | Flange,Wafer,Plug-in,Thread,Clamp |
| Converter Type | Integrated or split |
| Power Supply | 220V AC, 24V DC,3.6V Lithium Battery |
| Output | 4-20mA,Pulse,Frequency,RS-485,Hart,ModBus,RS232 |
Product Detail
Product Description
Instruction
The electromagnetic flow meter is a kind of measuring instrument based on Faraday law of electromagnetic induction, our electromagnetic flow meter is suitable for measuring the volume flow of conducting liquid and slurry in pipeline, Such as water, sewage, slurry, pulp, all kinds of acid, alkali, salt, food slurry etc., Applicable to the petroleum, chemical, electric power, metallurgy, water supply and drainage, light industry, food industry etc.
Features:
1.The measurement can not be influenced by the change of fluid density,viscosity,temperature,pressure and conductivity;
2.No mechanical inertia,totally deal with digital quantity, quick response and high anti-interference,reliable measurement, high precision.
3.With the function of measuring two way flow, can show the positive and reverse flow, also have two way current and rate output, which is convenient for the record and store different flow signal;

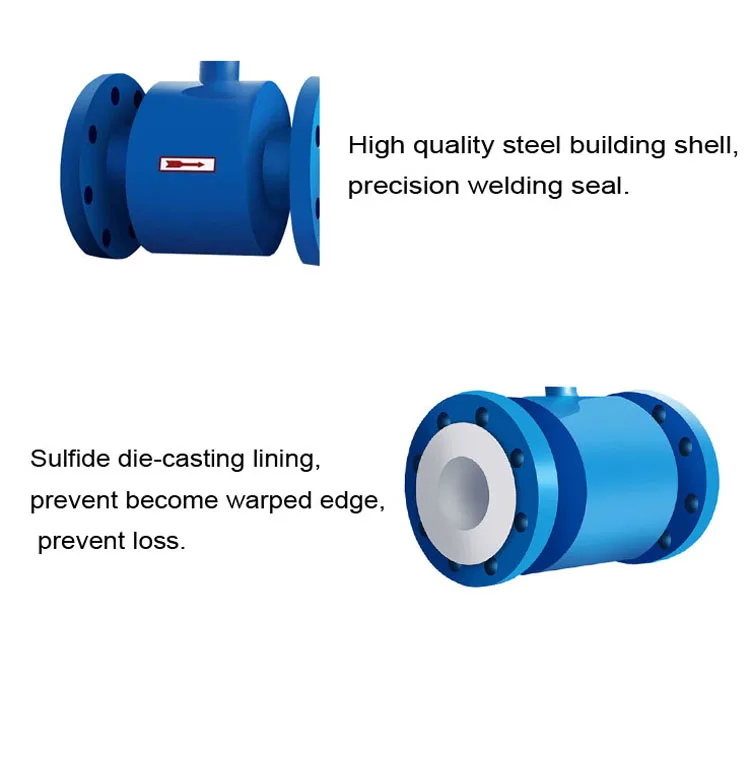

4. Employ Teflon or rubber liner and different combination of electrode material.
5.Power supply AC220V, DC24V, 3.6V lithium battery.
Specification
item | value |
Warranty | 1 years |
Customized support | OEM |
Place of Origin | China |
Shaanxi | |
Brand Name | kexlimice |
Model Number | ESMEMF |
Type | Variable Area Water Flowmeters |
Name | electromagnetic flow meter sea water flow measuring instruments |
Nominal Diameter | DN10~DN3000 |
Measured medium | conductive liquid,sewage,sea water etc. |
Medium temperature | -20~180℃ |
Electrode Material | SS316,HB,HC,Titanium,Tantalum,Platinum-iridium,Tungsten Carbide |
Lining Material | PTFE,FEP,Neoprene rubber,Polyurethane rubber |
Connection Form | Flange,Wafer,Plug-in,Thread,Clamp |
Converter Type | Integrated or split |
Power Supply | 220V AC, 24V DC,3.6V Lithium Battery |
Output | 4-20mA,Pulse,Frequency,RS-485,Hart,ModBus,RS232 |
When choose a magnetic flow meter generally should consider the following main items:
1. measuring fluid
The fluid conductivity should be more than 5µ/cm;
The fluid temperature should be below 180℃
2.instrument diameter
The instrument diameter is not always same with pipeline size, depending on flow rate.
Generally, if the velocity is in the range of 0.1~15m/s,flow meter diameter is same with pipeline size;
Velocity≤0.3m/s:consider the method of shrinking the pipe to raise the velocity;
Velocity≥15m/s:consider the method of expanding the pipe to reduce the velocity;
3.selection for integrated and split type
(1)integrated type: if the working condition is good, generally choose the integrate type, it means the sensor and converter is integrated.
(2)split type: sensor and converter is installed in different place generally for the following status:
ambient temperature or the converter surface raying temperature is more than 60℃;
flow meter is installed in the high place or inconvenient to see the local display;
strong pipeline vibration;
strong corrosion.
remark: when order the split type magnetic flow meter should note separation distance between
sensor and converter, generally should be less than 100m.
4. electrode material
5.lining material
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Xi 'an ESM Tech Co. Ltd launch its journey as a quality products manufacturer. We are currently producing precision series of products like pressure transmitter ,differential pressure transmitter,ultrasonic sensors, ultrasonic level meter, displacement sensors, safety light curtain sensor,float switch, flow meters etc.
A core of highly profession and experience engineers are engaged with us for research and development process. Our range of equipment boundary expanded recently to GPS tracking equipment .
Since its establishment, the company growing up to a design and supply chain services. We, developed into a sensor and GPS tracking solution provider, for distributors and agents both at home and abroad.
Today, the company based on the "people-oriented, scientific and technological innovation" concept of the camp, with customers "buy for peace of mind with assured quality", to set foot in the world market.
Welcome to Xi 'an ESM Tech with innovative solution worldwide.
