40W 42W 48W 50W LED Driver Galvanic Isolation with Active Power Factor 0.95 for Hotel Department Home Down Light Panel Light
50 piece(s)Minimum order
Warranty(Year):
3-Year
Lighting solutions service:
Lighting and circuitry design
Place of Origin:
Guangdong, China
Brand Name:
SOLUXLED
Model Number:
HG-PC-PF2240
Output Power:
40-50W
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$1.94-2.14
100 pieces (MOQ)
$4.25-4.80
50 pieces (MOQ)
$1.60-1.90
100 pieces (MOQ)
$1.63-1.97
100 pieces (MOQ)
$0.85-1.00
500 pieces (MOQ) Contact us
Quik Detail
| Warranty(Year) | 3-Year |
|---|---|
| Lighting solutions service | Lighting and circuitry design |
| Place of Origin | Guangdong, China |
| Brand Name | SOLUXLED |
| Model Number | HG-PC-PF2240 |
| Output Power | 40-50W |
| Output Type | Single Phase |
| Input Voltage | AC100-260V |
| Output Frequency | 50/60Hz |
| Output Current | 1500mA |
| Application | indoor lighting |
| Type | constant current |
| Efficiency | 88.9% |
| Size | L105*W47*H30.5mm |
| Protection | Short Circuit Protection |
| Feature | ac power supply |
| Package | plastic cover |
| IP Rate | IP20(Indoor) |
Product Detail
Product Description

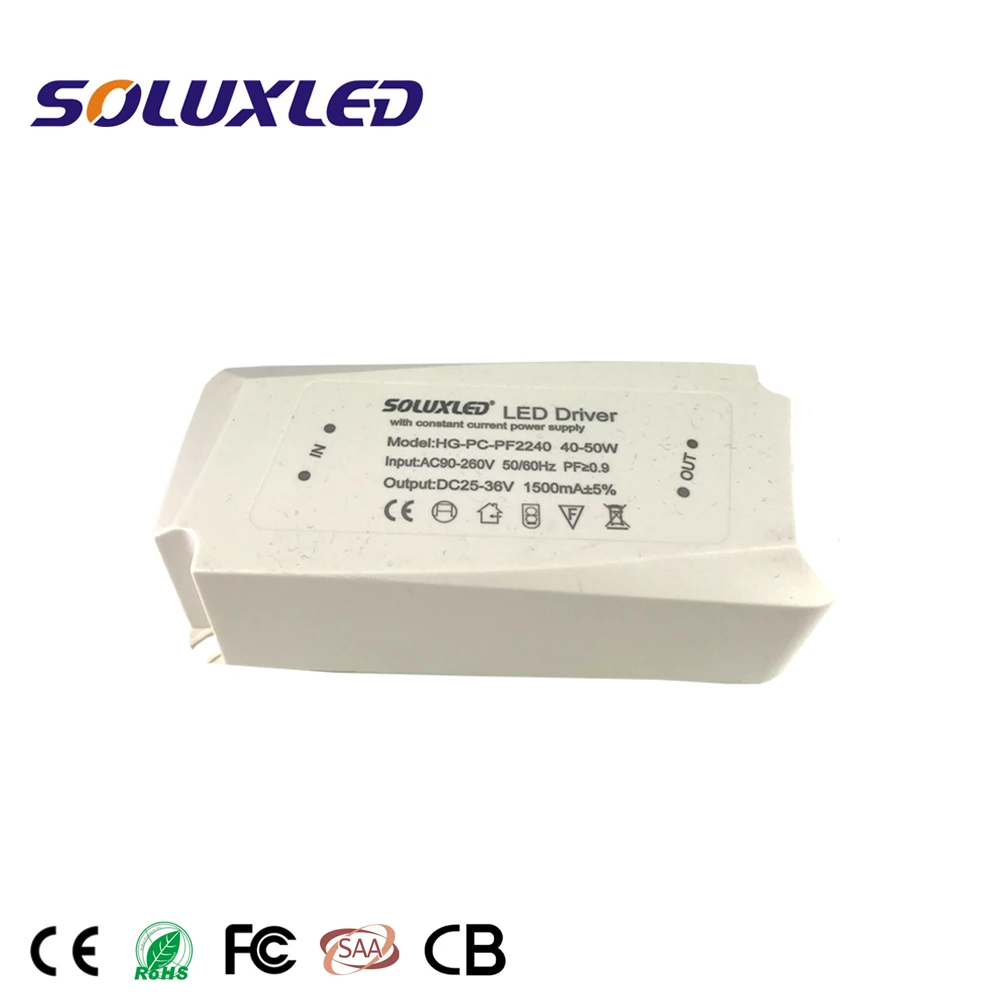

40-50W ac power supply 1500mA PC LED driver
| MODEL | HG-PC-PF2240 | |
| OUTPUT | DC VOLTAGE | DC25-36V |
| CONSTANT CURRENT REGION | 1500mA ±5% | |
| RATED CURRENT | 1500mA | |
| RATED POWER | 40-50W | |
| RIPPLE & NOISE(Max.) | 3.92Vp-p | |
| VOLTAGE RANGE | 24-38V | |
| INPUT | VOLTAGE RANGE | AC90-260V |
| FREQUENCY RANGE | 47-63Hz | |
| POWER FACTOR(Typ.) | 0.97 | |
| TOTAL HARMONIC DISTORTION(THD) | 18% | |
| EFFICIENCY(Typ.) | 88.9% | |
| AC CURRENT | AC270mA | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed. |
| OVER LOAD | Protection type: Shut down o/p voltage, re-power on to recover | |
| Function | DIMMABLE FUNCTION | Non |
| OTHERS | DIMENSION | L105*W47*H30.5mm |
| PACKING | 101.5g | |
| WORKING TEMP. | -30~+70℃ | |
| WORKING HUMIDITY | 20~95% RH non-condensing | |
