40FT/20FT ISO Asphalt High Quality Liquid Bitumen Chemical Storage Tank
Other recommendations for your business
Contact us
Quik Detail
| Type | Tank Container |
|---|---|
| Length (feet) | 20' |
| Capacity | 25000L |
| External Dimensions(l x W x H)(mm) | 6058*2438*2591/mm |
| Internal Dimensions(l x W x H)(mm) | 5898*2352*2393/mm |
| Place of Origin | Henan, China |
| Brand Name | LISHIXIN |
| Certification | CSC |
| Loading Capacity | 25000L |
| Maximum Gross Weight | 34000KG |
| Tare | 3680KG |
| Manhole | Dia. 20inch Seal Plastic-Lined Steel Tank Cover |
| Frame Material | Q345b Square Steel Tube |
| Compartment | Single Compartment |
| Color | Customized |
| Leakage Test Pressure(MPa) | 1.38 |
| Max. Payload (Kg) | 22568 |
| Hydro.Test Pressure(MPa) | 2.18 |
Product Detail
1.Asphalt ISO tank container mainly used for transportation and storage of asphalt products, widely used in asphalt factory & Road Bureau as well as Shipping Company.
2. Asphalt ISO tank container is a pressure vessel mounted in a frame. Frame dimensions comply with the recommendations of the International Standards Organization (ISO). The unit is designed and constructed in accordance with strict international codes for the worldwide carriage of bulk liquids on land, rail and sea.
Detailed Parameter
| Medium | bitumen, asphalt |
| Compartment | 1(one) |
| Loading& discharge | Top loading,bottom discharge |
| Working temperature(ºC) | -20 to +170 ºC |
| volume(m3) | 20m3/40m3 |
| Main materials | carbon steel |
| Tank Thickness | 5mm |
| Tank container dimensions (mm) | 6096*2438*2491(20ft) |
| 12192*2438*2491(40ft) | |
| Corner post materials | 16Mn |
| Manhole cover | 500mm |
| weight | ≤5tons |
| ≤7tons | |
| Paingting | Impeller blasting, Color and logo as your requirements |

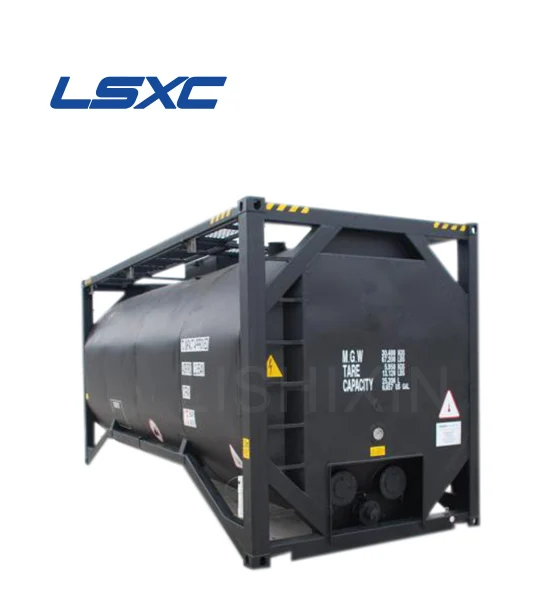

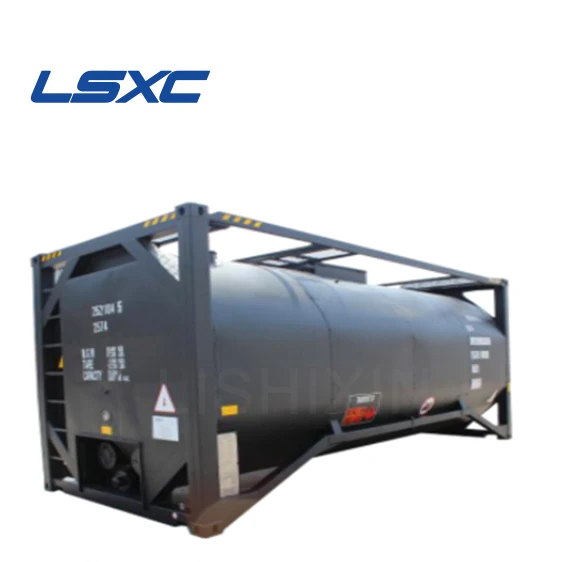

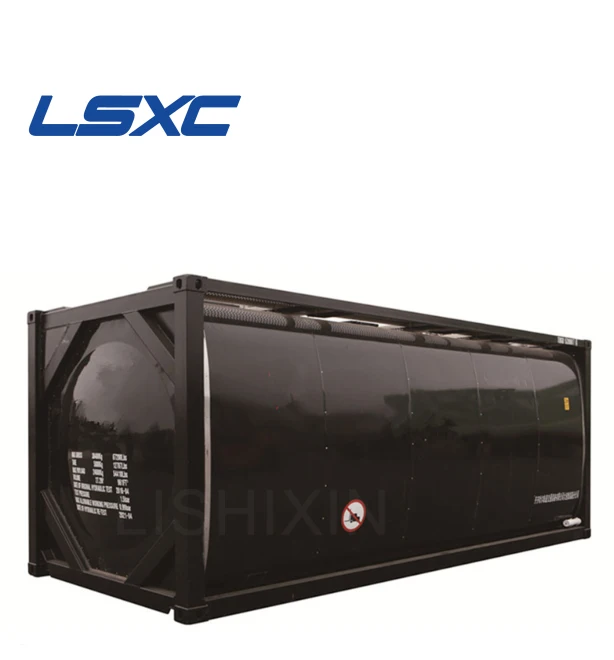

Detailed Image

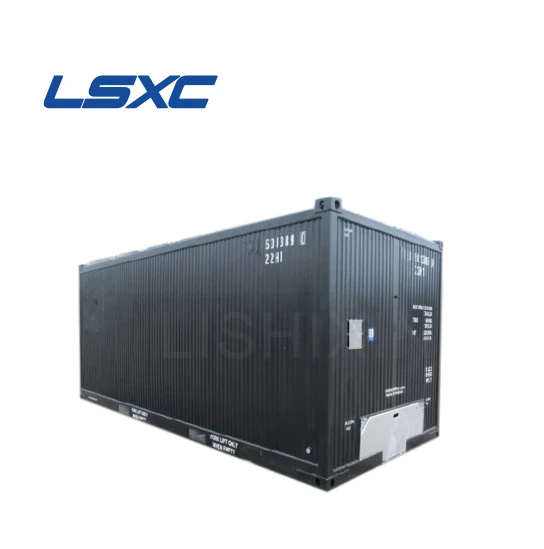

More Style
Packing: Nude Package or According to Customer's Requirements
Delivery: shipped by container shipping or bulk cargo ship
Pre-Sales Service
1.24 hours online timely inquiry reply and consulting support.
2.Sample testing support. View our Factory.
After-Sales Service
1.Most convenient transport and prompt delivery
2.Training how to install the tank, training how to use the equipment.
3. Warranty for 12 months.
4.Life-long maintenance
There are many customers come to visit our factory and the customers have a good evaluation of us. We warmly welcome every customer to visit our factory.
Q: How to ensure your quality of tank container?
A:Our ISO tank container approvals of main classification societies like ABS,CCS,GL,BV and also in accordance with IMDG, RID/ADR, ASME VII DIV2, CFR 48, USDOT (BYSP), TIR, UIC, CSC, TC, UKDFT, FRA
Q:What's your MOQ?
A:1.no matter which model 1set is our MOQ;
Q:What kind of tank container can you provide ?
A:We can manufacture fuel steel tank container, liquid food stainless steel tank container, LPG tank container, LNG tank container and bitumen tank container.
Q:Can a tank container be manufactured to my specifications?
A: we make a range of tanks designed for numerous applications. However, tanks can be manufactured and modified to meet individual requirements.
Q:What is your producing time?
A:6,normally is about 25days,and it depends on your quantity
