40X-1000X Advanced Darkfield Live Blood Analysis Microscope
Other recommendations for your business
Contact us
Quik Detail
| warranty | 2 years |
|---|---|
| customized support | 10 |
| place of origin | China |
| brand name | Honyu |
| Type | Laboratory Microscope |
| Optical system | Infinity Optical System |
| Magnification | 40X-1000X |
| Eyepiece | PL10X22mm |
| Objective | Infinity plan achromatic objectives |
| Nosepiece | quintuple |
| Condenser | Swing-out |
| Viewing head | Trinocular Head Inclined |
| Power Supply | 110/220V |
| Light source | halogen |
| Certification | 1 |
| Theory | Biological Microscope |
| Drawtube | Trinocular |
Product Detail
40X-1000X Advanced darkfield live blood analysis microscope CPD.03.X40T
Description
CPD.03.X40T, is an advanced laboratory biological microscope adopting Infinity Corrected Optical System. It has a standard magnification range of 40X-1000X (1500X can be reached with optional 15X eyepiece). It comes with a gemel trinocular head, a pair of high eye-point wide field plan eyepieces, five infinity plan achromatic objectives, a double layer mechanical stage, coaxial coarse and fine focusing system, swing-out type achromatic condenser, and illumination with imported halogen lamp. This microscope is a professional microscope for medical treatment, laboratories and scientific research.
Features
• Adopting color corrected infinity optical system
• Equipped with five infinity plan achromatic objectives
• Five wide-field magnification power: 40X, 100X, 200X, 400X, 1000X

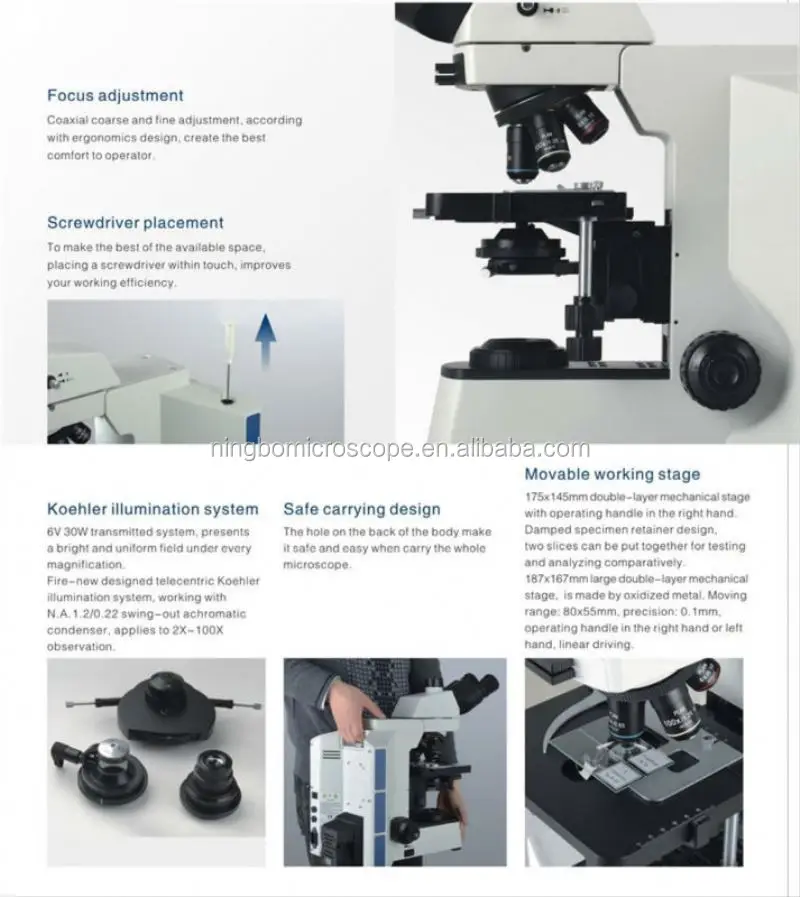

• Coaxial coarse and fine focus system
• N.A.1.2/0.22 swing-out type achromatic condenser
• CE and CFDA Approved and Manufactured Under ISO 9001 Quality Control Standard
Specification
|
Optical system |
Infinity color corrected optical system |
|
Head |
Gemel trinocular head inclined at 30 degree; 360 degree rotatable; interpupillary distance adjustment: 54-75mm; diopter +/-5 adjustable. |
|
Eyepiece |
High eye-point wide field plan eyepiece PL10X22mm, reticle can be assembled. |
|
Objective |
Infinity plan achromatic objectives 4X, WD=7.18mm |
|
Infinity plan achromatic objectives 10X, WD=4.70mm |
|
|
Infinity plan achromatic objectives 20X, WD=1.75mm |
|
|
Infinity plan achromatic objectives 40X(Spring), WD=0.72mm |
|
|
Infinity plan achromatic objectives 100X(Spring, Oil), WD=0.15mm |
|
|
Nosepiece |
Backward quintuple revolving nosepiece |
|
Focusing |
Coaxial coarse and fine focus system with upper limited and tension adjustment; coarse range: 25mm; Division of fine focus: 0.002mm; focus height adjustable. |
|
Stage |
175x145mm double layer mechanical stage, rotatable; with special fabrication processing, anti-corrosion and anti-friction; X, Y moving handwheel in right or left hand; traveling range: 76x50mm, precision: 0.1mm. |
|
Condenser |
N.A.1.2/0.22 swing-out type achromatic condenser |
|
Light Source |
6V/30W halogen, pre-centered, intensity adjustable. |
|
Filter |
Blue |
Optional Accessories
|
Eyepiece |
High eye-point PL10X/22mm with micrometer, diopter adjustable |
|
High eye-point PL15X/16mm |
|
|
Objective |
Infinity plan achromatic objectives 2X |
|
Nosepiece |
Backward revolving quadruple nosepiece |
|
Phase Contrast Attachment |
Infinity plan phase contrast objectives 10X, WD=4.70mm |
|
Infinity plan phase contrast objectives 20X, WD=1.75mm |
|
|
Infinity plan phase contrast objectives 40X, WD=0.72mm |
|
|
Infinity plan phase contrast objectives 100X, WD=0.15mm |
|
|
N.A.1.25 five holes phase contrast condenser(Infinity) |
|
|
Centering Telescope |
|
|
Filter |
|
|
Polarizing Attachment |
Polarizer (45) |
|
Analyzer, 360° rotatable; |
|
|
λ Slide |
|
|
Rotatable Working Stage |
|
|
Polarizer and analyzer can be shift out of light path. |
|
|
Dark Field Condenser |
N.A.0.9 condenser (dry) |
|
N.A.1.25 condenser (immersion) |
|
|
CCD adapter |
1X C-Mount, focus Adjustable |
|
0.50X, For 1/2” C-Mount camera, focus Adjustable |
|
|
0.67X, For 2/3” C-Mount camera, focus Adjustable |
Cameras for this microsocpe:
USB 2.0 Win8 Compatitable Digital Microscope Cameras: 3.1MP, 5.1MP, 8MP, 9MP, 10MP, 14MP:
http://ningbomicroscope.en.alibaba.com/productgrouplist-222006998/USB2_0_CMOS_Camera.html
USB 3.0 Win8 Compatitable Digital Microscope Cameras: 3.1MP, 5.1MP, 8.5MP, 10MP, 14MP:
http://ningbomicroscope.en.alibaba.com/productgrouplist-222014866/USB3_0_CMOS_Camera.html
HDMI/VGA Digital Microscope Cameras
http://ningbomicroscope.en.alibaba.com/productgrouplist-222020919/VGA_Camera.html
1. Goods is packed in strong foam and carton outside;
2. There are many ways available for shipping, express shipping like DHL, UPS, FedEx, EMS, air shipping, sea shipping, railway shipping.
We offer 2 years’ warranty for the optics of the microscopes and 1 year's warranty for the electrical parts (bulbs excluded), all warranty agains factory defect.
1. What is your MOQ?
>>>For most of our products, MOQ is one piece.
2. How to purchase it?
>>>First, please finalize the items, payment methods and shipping ways, share us with your company name(if there is), address and telephone, then we will prepare the invoice for you to make payment. After we get the payment, we will prepare the goods and ship them to you.
3. How to make payment?
>>>You can make payment through bank wire transfer, Alibaba trade assurance, Western Union, or Paypal.
4. What is the lead time?
>>>The lead time differs based on the goods, order quantity.
5. Can you do OEM?
>>>Yes, OEM is available. Logo, user manual and packing can be all OEM.
View more trinocular microscopes, please visit our website:
http://www.ningbomicroscope.com
