5.0 Inch LCD Screen 1MP 6mm Borescope Camera Video Camera 32GB Storage Boiler Tubing Inspection Camera One-handed Operation

US $1,852.00-3,087.00 / set
2 set(s)Minimum order
Place of Origin:
Guangdong, China
Brand Name:
VSNDT
Model Number:
VS-K6020
Warranty:
1 Year
Special Features:
Waterproof / Weatherproof
Sensor:
CMOS
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

Place of Origin

Guangdong, China

Brand Name

VSNDT

Model Number

VS-K6020

Warranty

1 Year

Special Features

Waterproof / Weatherproof

Sensor

CMOS

Style

mini camera

Lens

5-50mm

Function

Waterproof / Weatherproof, Wide Angle

Video Compression Format

H.265

Data Storage Options

SD Card

Customized support

Online technical support, Customized logo, Software reengineering, OEM, ODM

Product Name

Industrial Articulating Videoscope

Diameter

6mm

Length

2.0m

Resolution

1MP

Screen Size

5 inch

Output Port

HDMI video output,Micro USB,TF card slot

DOF

12-200mm/50-infinity

Articulation

360 full way articulation

Storage

32G

OEM/ODM

Customized

Product Detail

5.0 Inch LCD Screen 1MP  6mm borescope Camera  video Camera  32GB Storage Boiler tubing  inspection camera  one-handed operation

Product Description

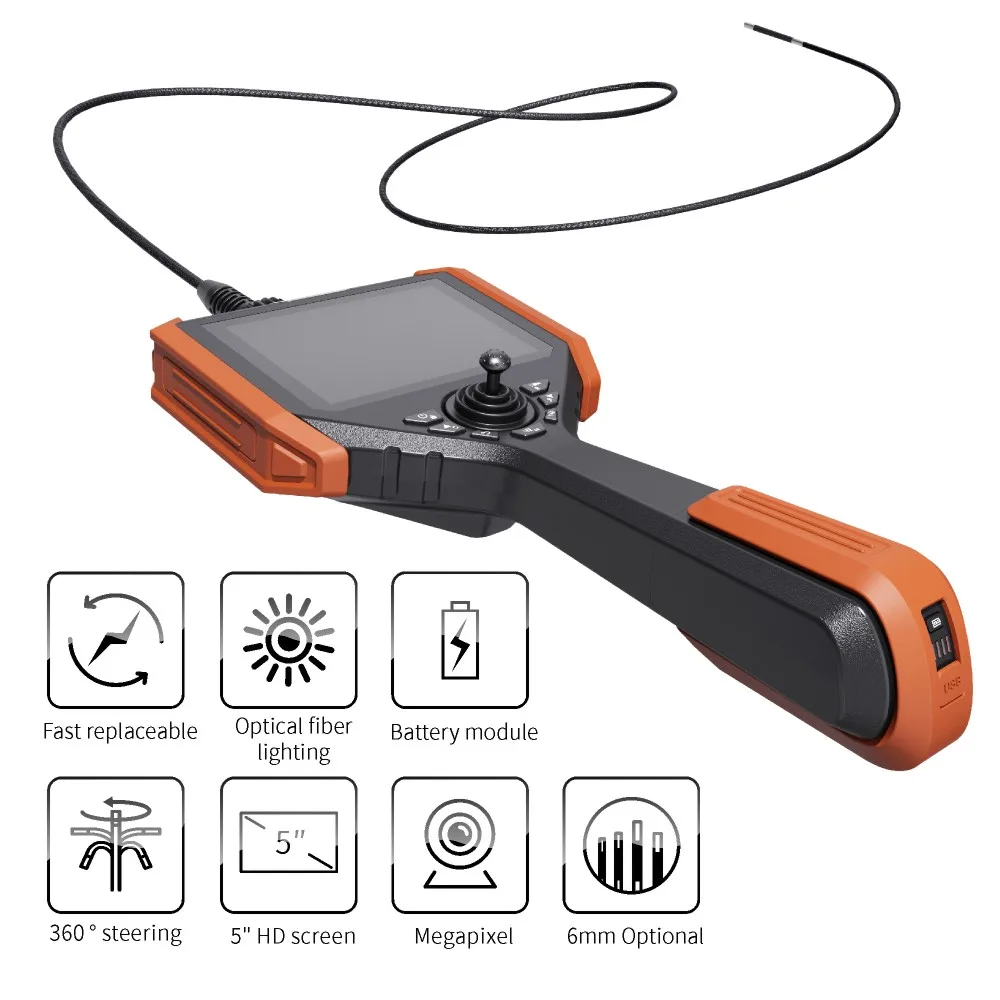

VSNDT VS-K6020 industrial video endoscope, equipped with 5-inch high-definition liquid crystal display, 360-degree omnidirectional guidance function, 720p million high-definition camera, can intuitively judge whether the observation part is qualified, support photo and video archiving, clear picture and video, this series of industrial video endoscope can be applied to precision casting, pharmaceutical manufacturing, automobile manufacturing and other application scenarios.




Technical Parameter

Product Model

VS-K6020

Host Size

350*155*59mm

Display

5 inch high-definition liquid crystal display

Storage

32G

Output Port

HDMI video output,Micro USB,TF card slot

Image/video format

Picture/video format: JPEG (JPG)/AVI

Support Function

With freeze, zoom, photo, flip, video playback, analog ruler functions

Support Language

Chinese (Simplified and Traditional), French, English, German, Spanish, Italian, Japanese

Power

Special rechargeable lithium battery pack, online charging, battery life >4 hours

Bending angle

160°±10°

Pixels

1000,000pixels

Probe length

2m

Diameter

6mm

View angle

90º/120º/140º

DOF

3~70mm/5~100mm

Articulation

360 ° full way articulation

System operating temperature

-10~50

Storage temperature

-20~60

Relative humidity

Maximum 90%, no condensing

Degree of protection

Insertion tube (IP67)

Lens Illumination

LED Integrated lighting

Insert Tube Materials

Flexible (tungsten braided tube)

Packing Case Weight

3.9kg

Packing  L*W*H

47.9*38.7*15.5cm



Product Details

[5 inch high definition liquid crystal display] VSNDT Industrial Endoscopes use 5 inch HD LCD screen, and show you clearly 720P photo and video.





[6mm megapixel micro camera probe] VSNDT industrial endoscope adopts 6mm detection camera micro probe, so that it can easily enter various narrow and closed places, and megapixel can clearly and intuitively capture every detail. Meet different use needs.





[High-power rear LED optical fiber illumination] VSNDT industrial video mirror lens adopts high-power rear LED optical fiber illumination with 8-degree brightness adjustment to adapt to different dark conditions. Provides you with a clearer view.





[Bidirectional 360 ° articulation &high-density tungsten wire material] VSNDT industrial endoscope adopts damping design positioning, 360 ° lens rotation, which can freely control the lens direction, easily pass through narrow bending gaps, and view more flexibly. High tungsten wire weaving material has good durability and corrosion resistance.





[IP67 Waterproof and oil proof] VSNDT Industrial Endoscope snake tube has the performance ofheat onsulation and chemical corrosionp rotection line,and can easily cope with the working environment with oil and water stains.





[Dedicated rechargeable lithium battery pack] The VSNDT endoscope has a built-in dedicated rechargeable lithium battery pack, which supports up to 4 hours of use time and can be easily charged through the USB data cable. Easy to carry.





[Product list] Product list: Device host , Packing casa,tripod,TF card,card reader,charger,data line,instructions,warranty card,Probe wire



Scope of Application



Qualification



Company Information



Shenzhen Vsndt Co.,Ltd is a national high-tech enterprise integrating R&D, production, sales, projects and services. Since its establishment, the company has been focusing on industrial video endoscope and nondestructive internal visual inspection industry. The company has rich experience in internal visual inspection and industrial endoscope product development.



The VSNDT brand series endoscope products we provide have all passed the ISO9001:2015 system certification. At the same time, we have carried out high and low temperature tests, complete machine tests, CE, EMC, IP tests, etc. on the products. We strictly abide by the standards for the products and implement every test to maintain the quality of our endoscopes.



  [Corporate Image Environment Display]



  [Exhibition Style Of The Company]

Packaging & Shipping



FAQ

 Q: Do you provide samples? Is it free or extra?

 A: Yes, we can provide you a sample in a relatively favorable price.

Q: How long is your delivery time?
A: Generally it is 5-8 working days if the gods are in stock, or it is 15-20 working days if not in stock.It is according to stock quantity situation.

Q: If I am interested in your products, can I get one piece sample for test?
A: Of course, as long as we have stock, welcome to start cooperation from sample for test, after test, then we can talk about further cooperation, we wanna longer term cooperation with our client, not just one time business.

Q: How can I buy online for your products?
A: If the products are the standard one, just can place online on trade assurance order on alibaba.com, we will treat your order sincerely and make sure timely delivery.

Q: Can you supply us OEM/ODM service?
A: Yes, if our existing products can't meet your requirement, it's our pleasure to supply OEMODM service for you.
