6mm Mini Metal Pilot Light Waterproof LED Indicator Lamp With 15cm Cable Metal Switches IP67 220V
US $0.33-0.45 / piece
10 piece(s)Minimum order
Whether the smart:
NO
Place of Origin:
Zhejiang, China
Brand Name:
wanshfa
Model Number:
WSF6F-LED/LN
Max. Current:
5A
Max. Voltage:
220V
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$20.00-25.00
50 pieces (MOQ)
$0.35
100 pieces (MOQ)
Contact us
Quik Detail
| Whether the smart | NO |
|---|---|
| Place of Origin | Zhejiang, China |
| Brand Name | wanshfa |
| Model Number | WSF6F-LED/LN |
| Max. Current | 5A |
| Max. Voltage | 220V |
| LED | Yes |
| IP level | IP67 |
| Product nameal | Metal Indicator Light Push Button Switch |
| Terminal type | 2 Pin Terminals |
| Mounting Hole Size | 6mm Diameter |
| Certification | CE |
| LED color | Red/ Green/Blue/White |
| Function | Electronic Control System |
| Brand | WANSHFA |
| Application | Industrial Equipment |
| Head shape | Power LED |
| Material | Nickel plated/Stainless steel/aluminumalloy black |
| Protection Level | IP67,IK09 |
Product Detail
Product Description
Product Features:
1.installation size: 6/8/10/12/14/16/19/22/25/28/30 mm.
2.with lamp voltage: 3-6V/12-24V/110V/220V/3-50V.
3.shell material: brass plated nickel/aluminum oxide black/stainless steel.
4.Wiring mode: terminal post/pin type /5mm lead | wire.
5.head shape: hemispherical head/flat head.
6.waterproof grade: IP65-IP67.
7.the head shape and installation size can be customized.
8.the face can be customized any spray surface DYY icon.
9.can be customized any color, voltage. Two-color indicator, three-color indicator.
Lamp Ratings | ||
Lamp Type | Bidirectional endless LED lamp beads (AC/DC general purpose) | |
Rated Voltage | 3-6V, 12-24V, 220V, 3-48V | |
Rated Current | 3~6V≤20mA 12~24V≤10mA 110~250V≤2mA 5~48V ≤ 6mA; | |
Depressurization mode | 6mm-14mm, ≦220V internal current limiting resistance, ≥ 220V external current limiting resistance 16mm-30mm, 3V-230V are all built-in current limiting resistors | |
LED Color | R: red G: green B: blue 0/A: orange/amber Y: yellow W: white | |
Life | 40000 hours(Reference) | |
Lamp Circuit diagram | The use of AC and DC general LED lamp beads, terminals without positive and negative terminals distinction | |
Power | 0.06W | |
Electrostatic breakdown voltage | 3000V | |
Lighting angle | 120° | |
thermal resistance | ≤ 50℃ /W | |
Maximum allowable iunction emperature | 105℃ -115℃ | |
Note: If you need one-way DC LED lamp beads can be customized: other voltage specifications can be customized according to requirements. Forward voltage: Red/yellow 1.8-2.2V Green/Blue/white 2.8-3.2V. Reverse voltage :5V | ||
Technical Parameters | ||
Operating ambient temperature | -25℃~+55℃(no freezing) The light body must be surrounded by air circulation | |
Working ambient humidity | 45~85%RH(no condensation) | |
Insulation resistance | ≥ 1000M pieces | |
Maximum withstand voltage | 1500 volts, AC 50 Hertz, 1 minute | |
Vibration resistance | 50 Hz, amplitude about 1.2mm | |
Impact resistance | Greater than 10g | |
Resistance to soldering heat | No more than 2 seconds at 320 ° C (or 30 W soldering iron) | |
METAL HOUSING:
▨Stainless Steel Shell
▨Nickel Plated Brass Shell
▨Aluminium Alloy Shell
ADVANTAGES:
▨Anti-corrosion
▨Fire-proof
▨Dust-proof
▨Explosion-proof
▨Waterproof
▨Nickel Plated Brass Shell
▨Aluminium Alloy Shell
ADVANTAGES:
▨Anti-corrosion
▨Fire-proof
▨Dust-proof
▨Explosion-proof
▨Waterproof
PREMIUM WATERPROOF
PREMIUM WATERPROOF
▨IP65 Waterproof Degree
▨Waterproof Silicone Sealing Ring in Internal
▨Waterproof Rubber O-ring Attached
▨IP65 Waterproof Degree
▨Waterproof Silicone Sealing Ring in Internal
▨Waterproof Rubber O-ring Attached
LED ILLUMINATED:
▨High-brightness Pure Color LED Light
▨Long Service Life
▨Voltage Range: 3~250V
▨High-brightness Pure Color LED Light
▨Long Service Life
▨Voltage Range: 3~250V
HIGH QUALITY
FIAME RESISTANCE BASE
FIAME RESISTANCE BASE
▨PA66 Nylon Base▨More safe & reliable
SCREW / SOLDER TERMINAL
▨High Quality Silver Plated Contacts & Terminals
MATCHED CONNECTING SOCKET
▨High Quality Flame Resistant Material
▨Matched for :
6/8/10/12/14/16/19/22/25/28/30 mm.
Diameter Metal Switches
▨Matched for :
6/8/10/12/14/16/19/22/25/28/30 mm.
Diameter Metal Switches
Packing & Delivery
we have the standard cartons and boxes , and every model all have the same as standard boxes and cartons , in case of the product wrong question . because different model has the different product boxes .our cartons all are the natural cartons . and according customs demands , we will put markers on the cartons .

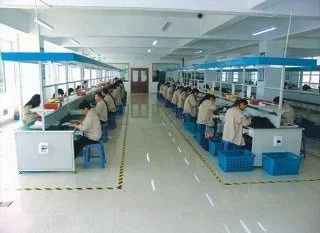

Company Profile
Established in 1995, Yueqing Wanshfa Electronics Co., Ltd. belongs to Wanshfa. We are specialized in designing, researching, manufacturing and selling all kinds of push button switches, boat switches, press-button switches, micro switches, toggle switches, and turning switches. The products are widely used in the fields of electronic instrument, instrument and meter, electromechanical device, broadcast and communication, household electrical appliance, medical appliance, automobile, and automation control.
Always, our company is people-oriented, progressing in science and technology to create quality products. We have many professional engineers in switch industry. Our company strictly carries out ISO9001 interactional quality management standard. Through constant improvement, most of the products have been certified by CQC, CE, and RoHS international systems. Now we are applying for VDE and UL certificates.
Yueqing Wanshfa Electronics Co., Ltd. develops with technology, famous brands, marketing, and human resource, so we work hard and try our best to become a firm with modernized management, international brands, excellent product and global sale.
