BWIN OEM Factory Wholesale Type a of 60 Degree Centering Bit for High Speed Steel Center Drilling Bits
US $0.75-1.20 / piece
10 piece(s)Minimum order
customized support:
OEM, ODM
place of origin:
Guangdong, China
brand name:
BWIN
model number:
5.0mm
drill type:
Center Drill Bit
use:
Metal Drilling
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$3.50-20.00
1 piece (MOQ)
$0.25-8.52
10 pieces (MOQ)
$0.86-15.21
10 pieces (MOQ)
$0.69-18.52
10 pieces (MOQ)
Contact us
Quik Detail
| customized support | OEM, ODM |
|---|---|
| place of origin | Guangdong, China |
| brand name | BWIN |
| model number | 5.0mm |
| drill type | Center Drill Bit |
| use | Metal Drilling |
| finish | Zinc |
| Product name | Center Drill Bits |
| Color | As picture |
| Controlling Mode | CNC |
| Usage | Hole drilling |
| Shank | Straight Shank |
| Diameter | 0.5mm-5mm or as your requirement |
| Length | 50-75mm, or as your requirement |
| Processing Type | Metal |
| Packing | Plastic box |
| Shipment | UPS/Fedex/DHL/TNT/EMS/Sea |
Product Detail
Procuct Name: | 60 Degree DIN333 Type A HSS Center Drill Bit | |
Material: | HSS4241,4341, 6542(Co5%-M35,Carbide are Available) | |
Process: | Fully Ground (Rolled are Available) | |
Flute: | Straight Flutes(2 Flute is Available) | |
Surface: | Bright Finishing(Amber, Tin-coated, AlTiN coated are Available) | |
Size: | 0.5MM-12.5MM | |
Standard: | DIN333A(DIN333B, DIN333R, Extra Long, GOST 14952-75 are Available) | |
Features: | 1.Center drill bits can be used to make conical holes for a lathe center in order to make a starting point for a standard twist drill, designed to prevent the twist drill from walking, as well as for producing center holds in components or work pieces with require machining between centers. 2.Available for all Kinds of Materials: Metal, Alloy, Copper, Iron, Wood, Aluminum, and so on. 3.Durable and Resistance: Center drill bit is made of HSS high speed steel, with extremely sharp blade, low consumption and durable with impact resistance, wear resistance. 4.center drills have flutes and cutting points on both ends. this allows the user with the ability to reverse the drill and utilize both ends. 5.Easy cutting with high speed and excellent offtake of chips.suitable for products with straight flute, oblique flute and spiral fiute, etc. 6.60 degree countersink angle fits all standard centers. 7.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. | |
For other sizes, types, materials, standard, process, packages, Please contact us! | ||

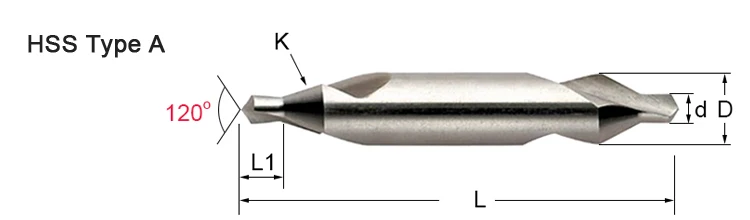

Drill Dia.(d) | Body Dia.(D) | Overall Length.(L) | Cutter Length(L1) |
A1.0mm | 4 | 35 | 1.7 |
A1.5mm | 4 | 35 | 2.6 |
A2.0mm | 5 | 40 | 3.1 |
A2.5mm | 6 | 45 | 3.8 |
A3.0mm | 8 | 50 | 4.6 |
A4.0mm | 10 | 55 | 5.9 |
A5.0mm | 12 | 63 | 7.2 |
A6.0mm | 14 | 69 | 7.2 |
A6.3mm | 16 | 71 | 8.9 |
A8.0mm | 20 | 80 | 11.1 |
A10.0mm | 25 | 100 | 13.8 |
Drill Dia.(d) | Body Dia.(D) | Overall Length.(L) | Cutter Length(L1) |
B1.0mm | 4 | 35 | 1.3 |
B1.25mm | 5 | 40 | 1.6 |
B1.6mm | 6.3 | 45 | 2 |
B2.0mm | 8 | 50 | 2.5 |
B2.5mm | 10 | 56 | 3.1 |
B3.15mm | 11.2 | 60 | 3.9 |
B4.0mm | 14 | 67 | 5 |
B5.0mm | 18 | 75 | 6.3 |
B6.3mm | 20 | 80 | 8 |
B8.0mm | 25 | 100 | 10.1 |
B10.0mm | 31.5 | 125 | 12.8 |
Drill Dia.(d) | circular arc(R) | Body Dia.(D) | Overall Length.(L) | Cutter Length(L1) |
1.0 | 2.5 | 3.15 | 31.5 | 3.0 |
1.25 | 3.15 | 3.15 | 31.5 | 3.35 |
1.6 | 4 | 4 | 35 | 4.25 |
2.0 | 5 | 5 | 40 | 5.30 |
2.5 | 6.3 | 6.3 | 45 | 6.70 |
3.15 | 8 | 8 | 50 | 8.50 |
4 | 10 | 10 | 56 | 10.6 |
5 | 12.5 | 12.5 | 63 | 13.2 |
6.3 | 16 | 16 | 71 | 17.0 |
8.0 | 20 | 20 | 80 | 21.2 |
10.0 | 25 | 25 | 100 | 26.5 |
12.5 | 31.5 | 31.5 | 125 | 16.5 |
Drill Dia.(d1) | Body Dia.(d2) | Overall Length.(L1) | Cutter Length(L2) |
1 | 4 | 40 | 1.6 |
1.5 | 4 | 40 | 2.1 |
2 | 6 | 50 | 2.6 |
2.5 | 6 | 50 | 3.1 |
3 | 8 | 50 | 4 |
4 | 10 | 55 | 5 |
5 | 10 | 70 | 6 |
6 | 12 | 75 | 8 |
Drill Dia.(d1) | Body Dia.(d2) | Overall Length.(L1) | Cutter Length(L2) |
1.0 | 4 | 40 | 1.6 |
1.5 | 6 | 50 | 2.1 |
2 | 8 | 50 | 2.6 |
2.5 | 10 | 60 | 3.1 |
3 | 12 | 60 | 4 |
4 | 14 | 70 | 5 |
5 | 18 | 75 | 6 |
6.3 | 20 | 80 | 8 |
