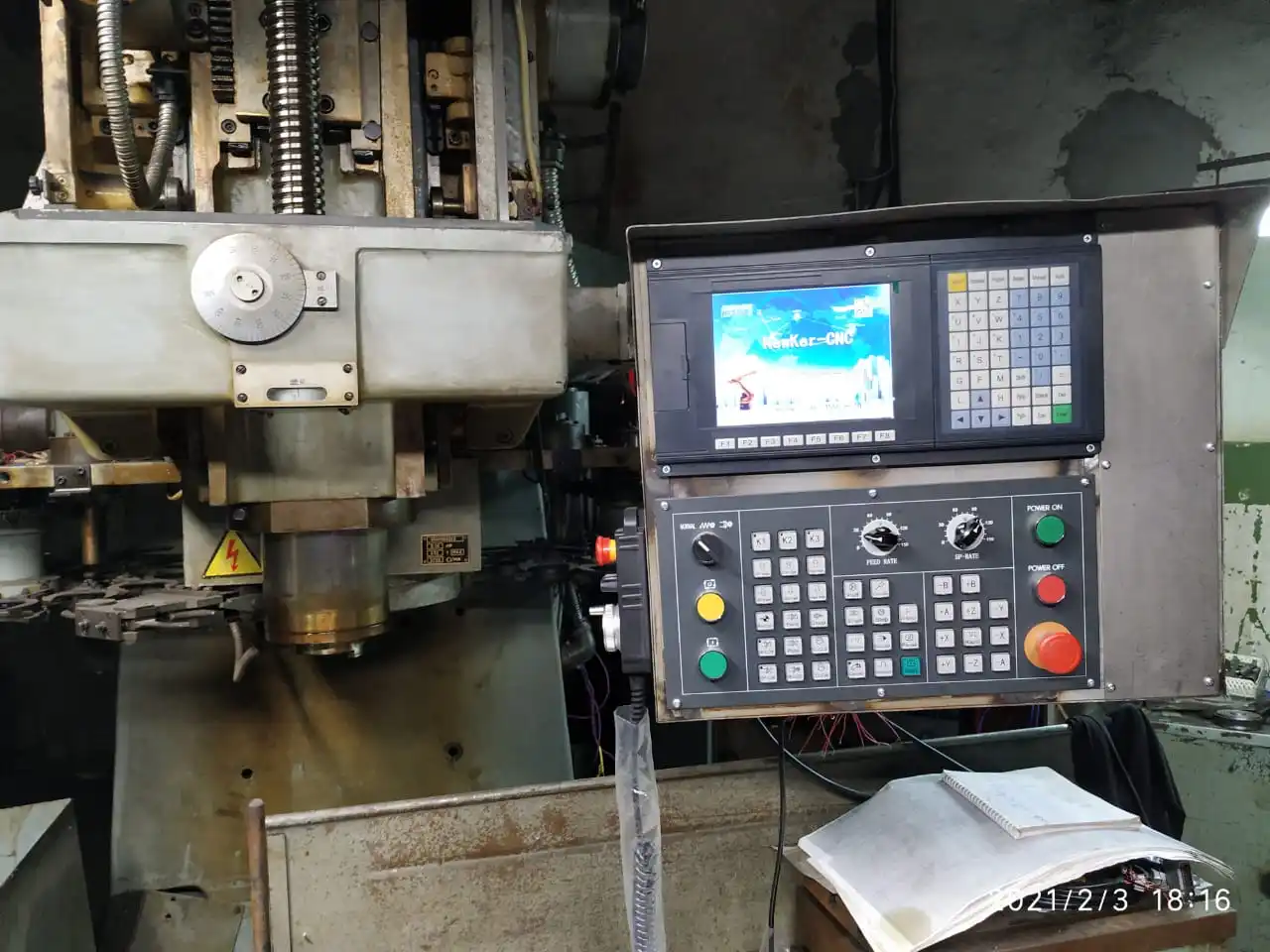

Best-selling 3 Axis 4 Axis CNC Moter Controller for Milling Drilling Absolute Type Retrofit Kit Control
US $429.00-499.00 / piece
1 piece(s)Minimum order
place of origin:
Sichuan, China
application:
MILLING MACHINE
video outgoing-inspection:
Provided
machinery test report:
Provided
brand name:
NEWKer-CNC
dimension(l*w*h):
400*245*125
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$234.00-378.00
1 set (MOQ)
Contact us
Quik Detail
| place of origin | Sichuan, China |
|---|---|
| application | MILLING MACHINE |
| video outgoing-inspection | Provided |
| machinery test report | Provided |
| brand name | NEWKer-CNC |
| dimension(l*w*h) | 400*245*125 |
| warranty | 2 years |
| Dimension for hole | 380*226 |
| Speed | 30m/min |
| Axis | 3/4/5axis |
| CPU | ARM(32bits)+DSP+FPGA |
| Interface | USB+RS232 Communction Port |
| Port | 24input 24output |
| Function | PLC+ATC |
| Display | 8 Inch Real Color LCD |
| Program | User Macro Program |
| User Store Room | 128Mb |
| Condition | New |
| Marketing Type | Ordinary Product |
| Showroom Location | Turkey, Viet Nam, Indonesia, Pakistan, India, Russia, Thailand |
| Applicable Industries | Machinery Repair Shops, Manufacturing Plant, Farms, Energy & Mining, OEM, turning, milling |
| Core Components | PLC, cnc controller, macro program, CNC, OEM |
| Weight | 10 |
Product Detail
Parameter details | ||||||
System Function | G code shows | |||||
number of control axis | 3~4 (X,Y,Z,A) | Locate rapidly: | G00 | |||
The smallest programming: | 0.001mm | Straight line interpolation | G01 | |||
The most programming: | ±99999.999mm | Arc interpolation: | G02/03 | |||
Feed speed: | 0.001~15m/min | high speed deep drilling loop | G73 | |||
Continuous manual: | one axis or two axis at the same time | point drilling loop | G81, G82 | |||
Line interpolation: | Straight line, arc, screw thread interpolation | Line cutting drilling loop | G73 | |||
Cutter compensation: | Length of the compansation、nose of tool compensation | Boring loop | G85, G86, G89 | |||
Spindle function: | gear、Double analog control、Rigid tapping | Tapping loop | G74, G84 | |||
Handwheel function: | panel、handheld | program loop | G22, G800 | |||
handwheel processing: | The handwheel processing function | local coordinate system: | G52 | |||
Screen protection: | The screen protection function | check skip | G31, G311 | |||
Communication function: | RS232、USB interface | polar programming | G15/16 | |||
Compensation function: | cutter, clearance, screw, radius compensation | metric and inch programming | G20/21 | |||
Edit program: | relative/absolute programming, hybird programming | program mode | G90/91 | |||
Preread function: | Preread 10,000 short straight lines | processing plane | G17, G18, G19 | |||
limit position function | hard limit, soft limit | workpiece coordinate system: | G54~G59 | |||
Password protection: | Multilevel password protection | tool length compensation | G43, G44, G49 | |||
Input/output: | I/O 24*24 | tool radius compensation | G45~G48 | |||
PLC programme: | All open PLC design | C tool radius compensation | G40, G41, G42 | |||
Acceleration and deceleration control: | Straight line、Index | Accurate positioning/continuous path processing | G60/G64 | |||
Number of encoder: | any setting | returns the starting point | G26, G261~G264 | |||
User macro program: | Have | returns the fixed point | G25, G61, G60 | |||
Electrical gear function: | Have | returns the reference point | G28, G281~G284 | |||
delay function | G04 | |||||
auxiliary function: | S、M、T | |||||
Product features
Never Crush the machine, the system with memorial function (Abosolute feature)
Needn't install hard limit with this 3 axis control wood drilling and milling machine and back to the zero point (Abosolute
feature)
Adapt bus modbus technology, ARM + DSP + FPGA technology
USB and RS232 port, DNC function of USB (NEW)
Network remote technology and could diagnose the system online (NEW)
User's storage is 128M and could be infinite number of program (NEW)
Abosolute type of motor (17bits multi circle) controlling technology (NEW)
The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)
The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)
All closed-loop with grating ruler control and the accuracy is <2um (NEW)
Preread the short line program to satisfy with high speed engraving and cutting (NEW)
Needn't install hard limit with this 3 axis control wood drilling and milling machine and back to the zero point (Abosolute
feature)
Adapt bus modbus technology, ARM + DSP + FPGA technology
USB and RS232 port, DNC function of USB (NEW)
Network remote technology and could diagnose the system online (NEW)
User's storage is 128M and could be infinite number of program (NEW)
Abosolute type of motor (17bits multi circle) controlling technology (NEW)
The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)
The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)
All closed-loop with grating ruler control and the accuracy is <2um (NEW)
Preread the short line program to satisfy with high speed engraving and cutting (NEW)
