Blow Moulding Machines for Bottles / Pet Bottle Machine / 19l Bottle Blow Molding Machine

US $3,200.00-3,700.00 / set
1 set(s)Minimum order
plastic processed:
PET
max.bottle height(mm):
300
neck diameter(mm):
28
max.bottle diameter(mm):
150
bottle volume(ml):
2000
place of origin:
Jiangsu, China
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

plastic processed

PET

max.bottle height(mm)

300

neck diameter(mm)

28

max.bottle diameter(mm)

150

bottle volume(ml)

2000

place of origin

Jiangsu, China

brand name

AK-MACHINE

voltage

25KW

dimension(l*w*h)

1.55*0.82*2.00m

clamping force (kn)

100

power (kw)

12

weight (kg)

1000

automation

Semi-automatic

warranty

2 years

key selling points

Easy to Operate

machinery test report

Provided

video outgoing-inspection

Provided

core components

Bearing

Product name

semi-automatic blowing molding / pet blow moulding machine price

Key words

plastic bottle making machine / pet bottle manufacturing plant

Machine type

semi-automatic pet bottle blowing machine

Container Material

PET

Container volumer

200ml~2000ml

Theoretic output(Psc/hr)

1000bph(500ml)

Cavity

2 cavitiy

Clamping force

100KN

Production Capacity (BPH)

1000

Type

stretch blow moulding machines

Hollow part volume

200ml~2L

Product Detail

Product Description
1000 bottles per hour semi-automatic PET water bottle blow blowing molding machine
Cavity
2
Output
2000
Max.volume
2L
Size
148*60*213cm
Weight
0.82ton
application
water/juice/carbonated beverage bottle
Bottle neck
28/30/38/45
Bottle size
350/500/600/750/1000/1500ml or more
AK-32 PET stretch blow moulding machine has a plenty of assistant units to increase the machine's performance such as air storage unit to keep the air pressure stable grease-lubricating unit to reduce mechanical parts' wear and tear and multi-utilization air entry unit to meet air compressed air high-pressure single entry mode and high-pressure & low-pressure double entry mode.
Simple operation and high control precision
AK bottle blow unit is equipped with specially designed PLC control system. It controls the whole bottle production process through a soft touch pad with time control precision up to 0.01 second.
  • High quality pneumatic unit

Pneumatic unit provides power for machine movements including machine driving and bottle blowing. AK-32 is equipped with world famous brand components (Festo) to reduce the noise save energy and produce the high quality production

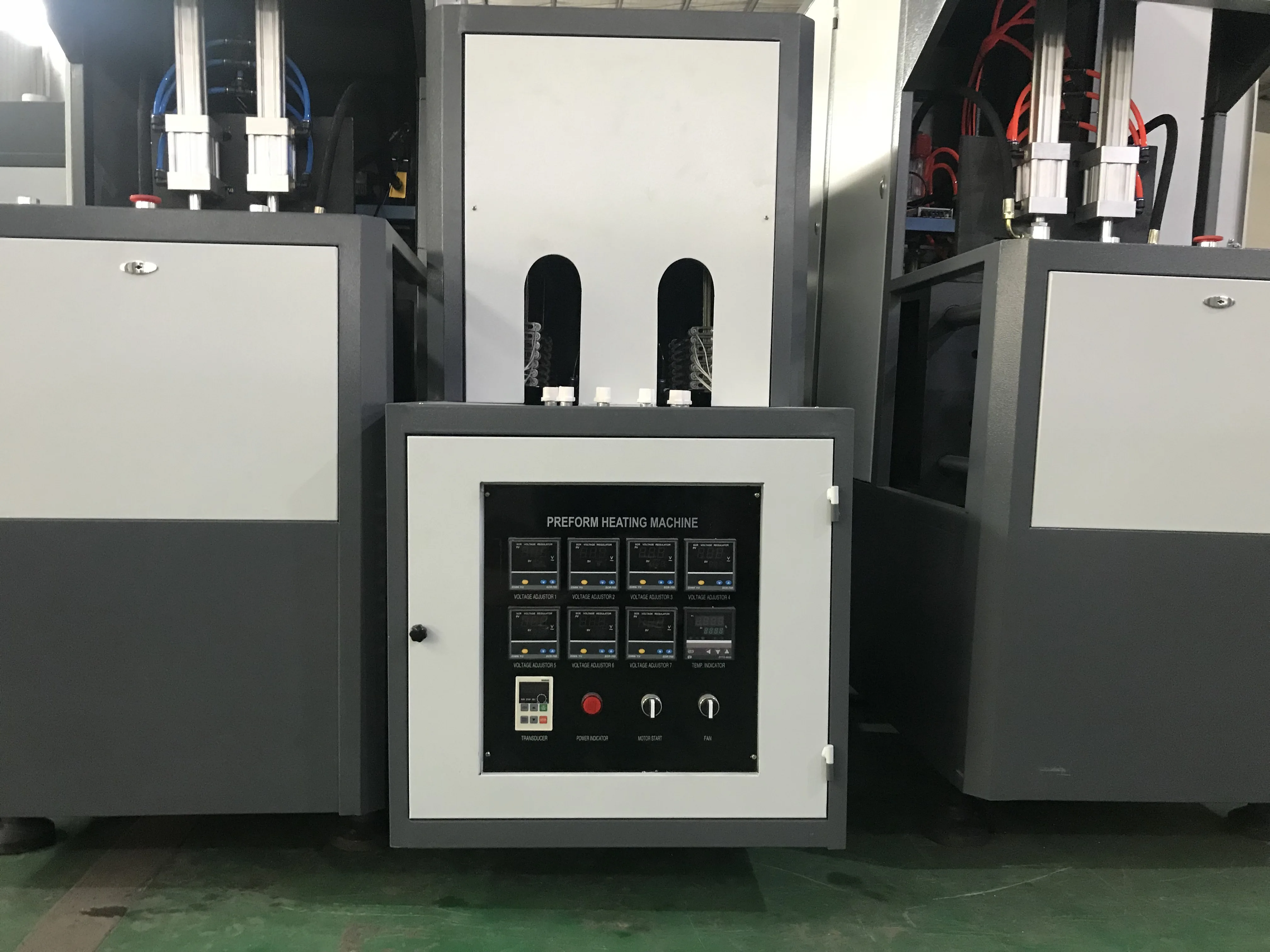

Powerful heating capacity with perfect heating result
AK series preform heater adopts infrared lamp as heating unit. Infrared has powerful thermal-radiation capacity which can heat up preform to required temperature in a very short time while the strong thermal-penetrability provides continuous and uniform heating inside of preform and over surface of preform.
Detailed Images
Related Products
Contact Us
Packing&Shipping
All the machines packed in wooden case packing with plywood.
After Sales Service
FAQ
Q: Are you trading company or manufacturer ? A: We are factory.   Q: How long is your delivery time? A: Generally it is 20-30 days,if complete production line it is 45-60 days.   Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance  Before shippment.
