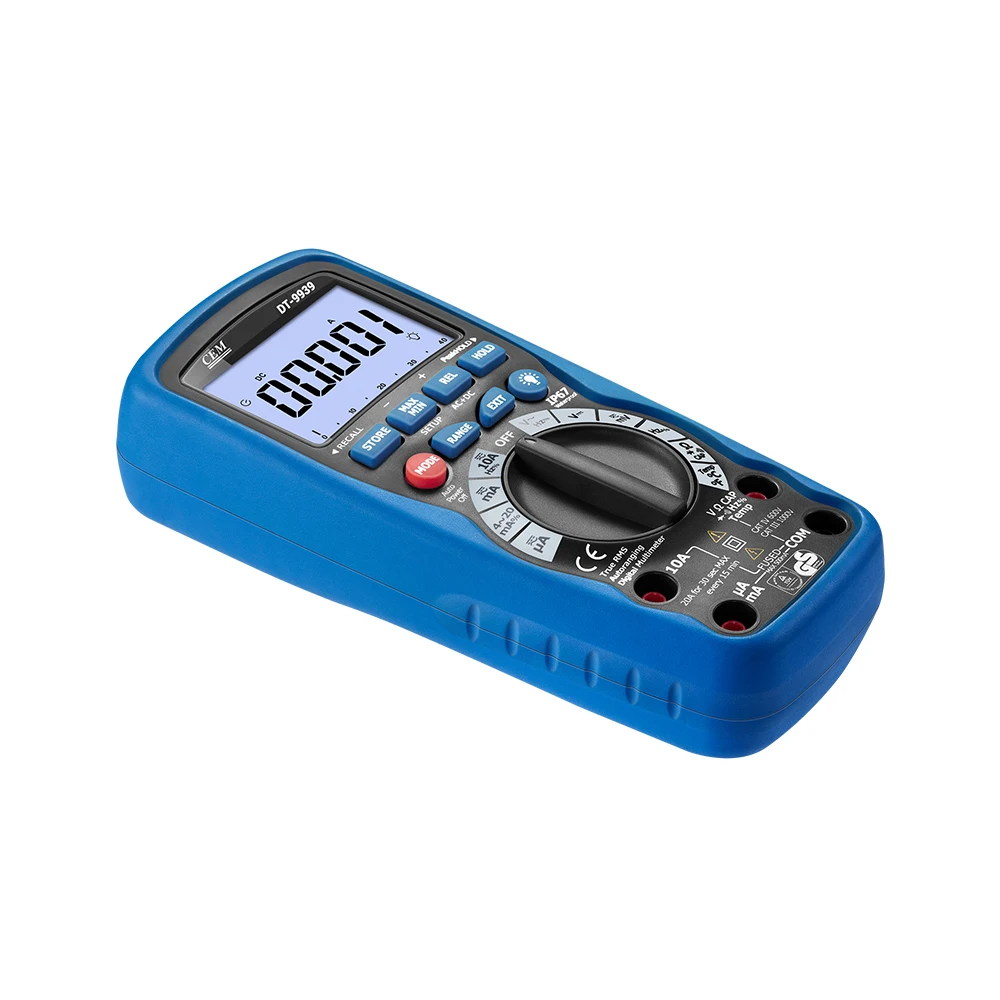

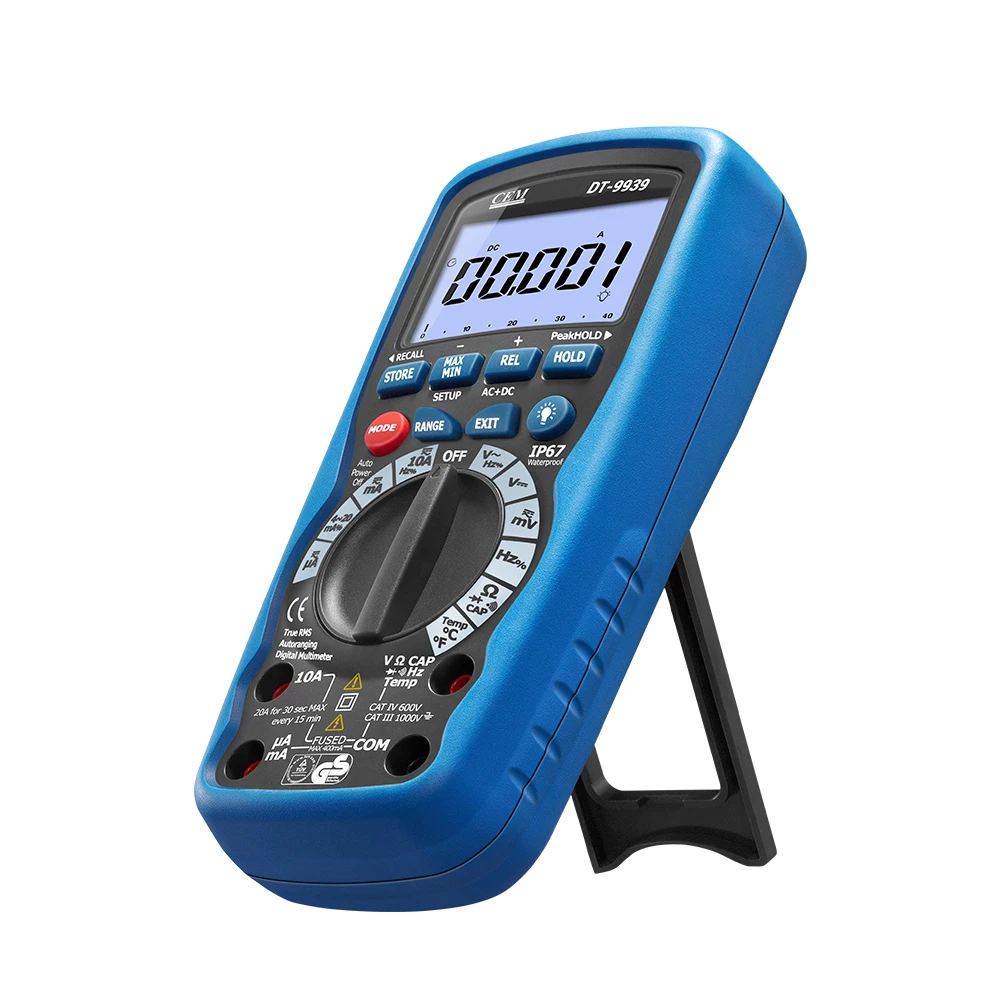

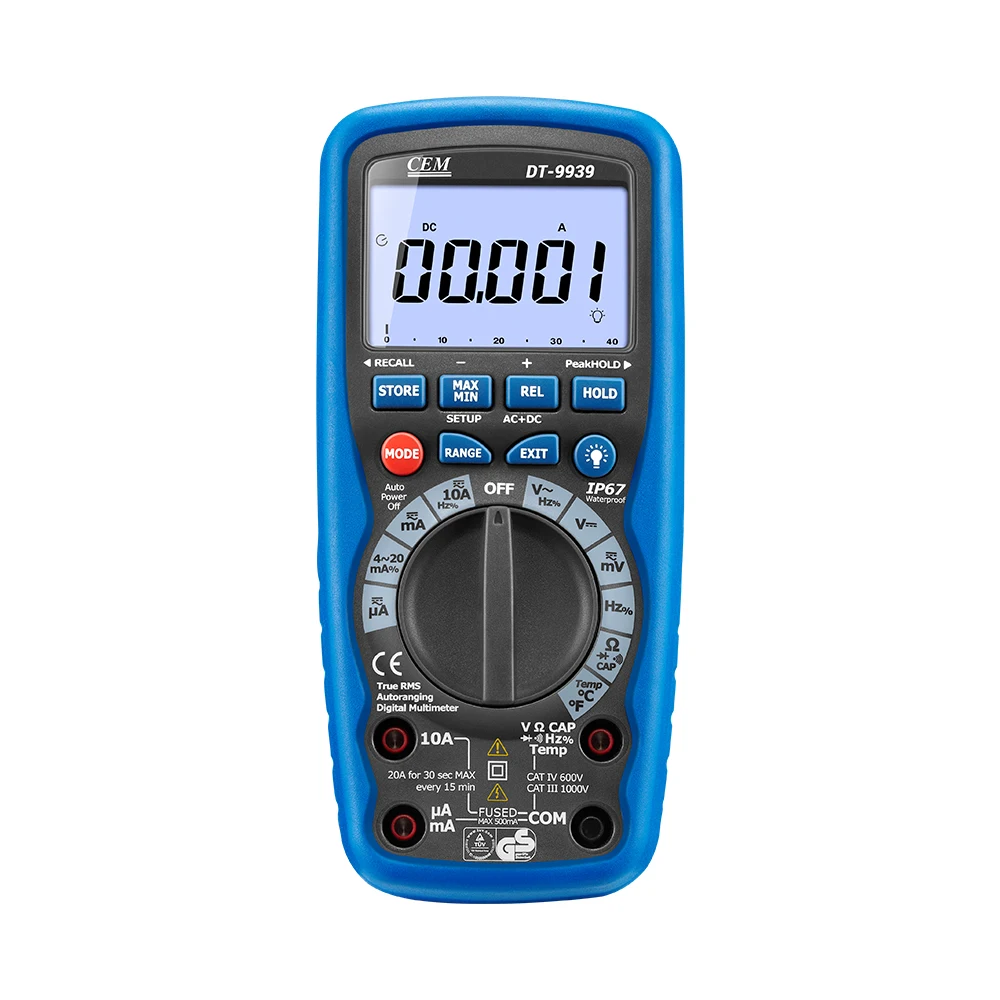

CEM DT-9939 CAT III 1000 V Input Protection 9999 Recording IP67 Waterproof Digital Analog Multimeter Price
Other recommendations for your business
Contact us
Quik Detail
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | CEM |
| Model Number | DT-9939 |
| Measuring Current Range | 10A |
| Measuring Voltage Range | 1000V |
| Measuring Resistance Range | 40MΩ |
| Measuring Capacitance Range | 10mF |
| Operating Temperature | 0-50C Degree |
| Dimensions | 183mm x 82mm x 55mm |
| Feature | Standard, Dustproof, Waterproof |
| Max. AC Voltage | 1000 V |
| Max. DC Voltage | 1000 V |
| Max. AC Current | 10A |
| Max. DC Current | 10A |
| Parameters Measured | Temperature (K), Low Input Impedance, DC Current, AC Voltage, Frequency, Temperature (IR), Temperature, DC Voltage, Duty Cycle, Capacitance, Continuity, Diode, Conductance, Resistance, AC Current |
| low battery indicator | Yes |
| Display | 40000 Counts |
| Frequency | 10MHz |
| Warranty | 1 year |
| AC DC Voltage | 1000V |
| Protesction Grade | IP67 |
| Voltage DCaccuracy | 0.06% |
| Diode Check | YES |
| Duty Cycle | 99.90% |
| True RMS | YES |
| Product Name | DIgital multimeter |
Product Detail
Please contact us to get a better price !
DT-9919/9929/9939/9949/9959 are the new Professional Digital Multimeters which provide much more safe measurements with double molded plastic housing design and IP67 waterproof function. 9949/9959 performance like datalogger & True RMS AC voltage and current measurements, 50,000 counts resolution and a 0.03% basic DC accuracy within the reach of more customers. The large LCD display with analog bargraph and backlit ensure that readings are easy to read under all circumstances. All inputs are protected to EN 610101-1 CATIV 600V/CATIII 1000V.
Safety Conformance
EN61010-1 CAT IV 600V, CAT III 1000V
1000V input protection on all ranges
10A/1000V & 0.5A/1000V fuses protection on current ranges
| Features | DT-9919 | DT-9929 | DT-9939 | DT-9959 |
| 40,000 counts high resolution (0.01mV, 0.01µA, 0.01) | * | * | * | |
| 50,000 counts high resolution (0.01mV, 0.01µA, 0.01) | * | |||
| Triple LCD display with bargraph & Backlit | * | * | * | |
| AC+DC Measurement | * | * | * | |
| 9999 Readings memories | * | * | * | |
| True RMS measurement & Peak capture mode | * | * | * | * |
| 1000V input protection on all ranges | * | * | * | * |
| 4-20mA process loop measurements with % reading | * | * | * | * |
| Data Hold/MAX/MIN recording mode | * | * | * | * |
| IP67 Waterproof and Auto Power Off | * | * | * | * |
| Wide capacitance range | * | * | * | * |
| Wireless USB interface | * | |||
| Bluetooth interface with Meterbox iMM software | * |
| Specifications | |||
| Function | Max. Range | Max. Resolution | Basic Accuracy |
| Voltage DC | 1000 V | 10µV | ±0.03% (9959) ±0.06% (9929/9939) ±0.06% (9919) |
| Voltage AC | 1000 V | 10µV | ±1.0% |
| Current DC | 10A | 0.01µA | ±1.0% |
| Current AC | 10A | 0.01µA | ±1.5% |
| Resistance | 40M | 10m | ±0.3% |
| Duty Cycle | 99.90% | 0.10% | ±1.2% |
| Frequency | 10MHz | 0.001Hz | ±0.1% |
| Capacitance | 40mF | 10PF | ±3.5% |
| Temperature | 1200ºC/2192ºF 760ºC/1400ºF (9919) | 0.1ºC/ºF | ±1.0% |
| Diode Check | |||
| Continuity Test | |||
Size(HxWxD): 132mm x 65mm x 35mm
Weight: 205g
Accessories:
Test leads, 2 x 1.5V “AAA” battery, type K temperature probe (212T/215)
and gift box with carrying case.
