CO2 Laser Engraving Machine 1290
US $2,000.00-3,000.00 / set
1 set(s)Minimum order
applicable material:
Acrylic, Crytal, Glass, Leather, MDF, paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood
engraving area:
1,200 x 900mm
laser type:
CO2
engraving speed:
0 -60,000mm/min
graphic format supported:
AI, BMP, Dst, DXF, PLT
condition:
New
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$3,148.00-3,150.00
1 set (MOQ)
$39,000.00
1 set (MOQ)
$18,500.00
1 set (MOQ)
$13,180.00-14,280.00
1 set (MOQ) Contact us
Quik Detail
| applicable material | Acrylic, Crytal, Glass, Leather, MDF, paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood |
|---|---|
| engraving area | 1,200 x 900mm |
| laser type | CO2 |
| engraving speed | 0 -60,000mm/min |
| graphic format supported | AI, BMP, Dst, DXF, PLT |
| condition | New |
| cnc or not | Yes |
| cooling mode | WATER COOLING |
| place of origin | Shandong, China |
| brand name | SPC laser |
| dimension(l*w*h) | 1,720x 1,210 x1,070mm |
| laser source brand | IPG |
| laser head brand | Raytools |
| servo motor brand | Yaskawa |
| guiderail brand | HIWIN |
| control system brand | Cypcut |
| weight (kg) | 5600 KG |
| key selling points | High-accuracy |
| warranty | 3 years |
| mode of operation | continuous wave |
| configuration | bench-top |
| feature | Air-cooled |
| After-sales Service Provided | Engineers available to service machinery overseas |
| performance | engraving and cutting |
| colour | offwhite, black, bule and so on(optional) |
| Application | Laser Engraving |
| Applicable Industries | Building Material Shops, Machinery Repair Shops |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Core Components | Pressure vessel, motor, Bearing, Pump, Gearbox, Engine |
Product Detail
CO2 laser engraving machine 1290
The unique decelerate design make the mechanical system move stably and smoothly. The edge of cutting is smooth and there is no sawtooth. The software adopts. continuous curve method to get faster cutting speed.
Specification:
Laser- type:Sealed CO2 laser tube
Laser power: 80W ,100W,130W,150W,200W (GSI) (optional )
Cutting area:1,200 x 900mm
Whole machine size:1,720x 1,210 x1,070mm
Cutting speed: 0 -24,000mm/min
Resetting positioning accuracy: ±0.05mm
Working voltage: AC 110 - 220V±10%, 50 - 60Hz
Gross power: <1,200W
Operating temperature: 0 - 45°C
Operating humidity: 5- 95%
Graphic format supported: BMP,PLT, DST, DXF, and AI
Driving system: stepper
Cooling mode: water-cooling and protection system
Auxiliary equipments: Exhaust-fans, air-exhaust pipe
Controlling software: DSP control system.
Compatible software: CorelDraw AutoCAD Photoshop
Net Weight: 280kg
Applicable materials:

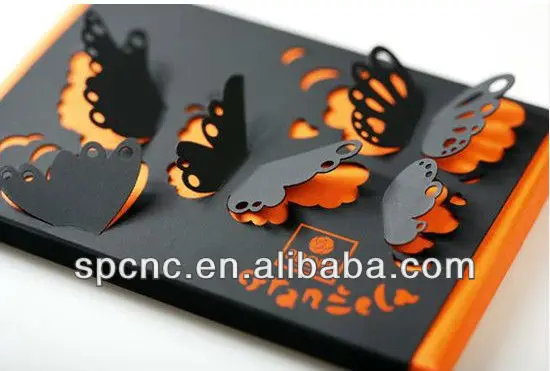

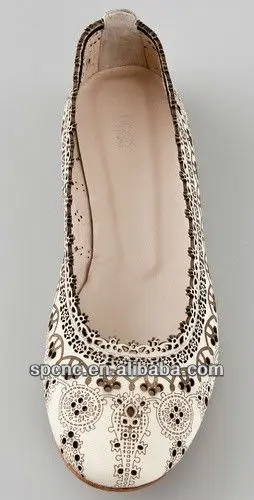

wood, organic glass, plastic, garments, paper, leather, rubber,and other nonmetal materials.
Applicable industries:
advertisement, arts and crafts,shoes,toys, computerized embroidery and clipping, garments,model and construction industry.
