Chemical, Food, Refining, Clay Electroplating Use of Centrifuge

US $9,300.00 / set
1 set(s)Minimum order
place of origin:
Henan, China
product type:
centrifuge
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
PLC, Engine, Bearing, motor
brand name:
TOPER
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

place of origin

Henan, China

product type

centrifuge

video outgoing-inspection

Provided

machinery test report

Provided

core components

PLC, Engine, Bearing, motor

brand name

TOPER

voltage

380V/400V

power(w)

7.5kw

dimension(l*w*h)

1700*1200*1250mm

warranty

12months from delivery

key selling points

Long Service Life

Capacity

401-500l/h

Weight (KG)

1500

setting speed

2000RPM

Specification

use of centrifuge

Material

PP or stainless steel

Autoamtic type

automatic feed &discharge

Price

best factory price

Drum diameter

800mm

Drum volume

90L

Drum limit

120kg

Drum speed

1200r/min

Customized

Yes

Product Detail

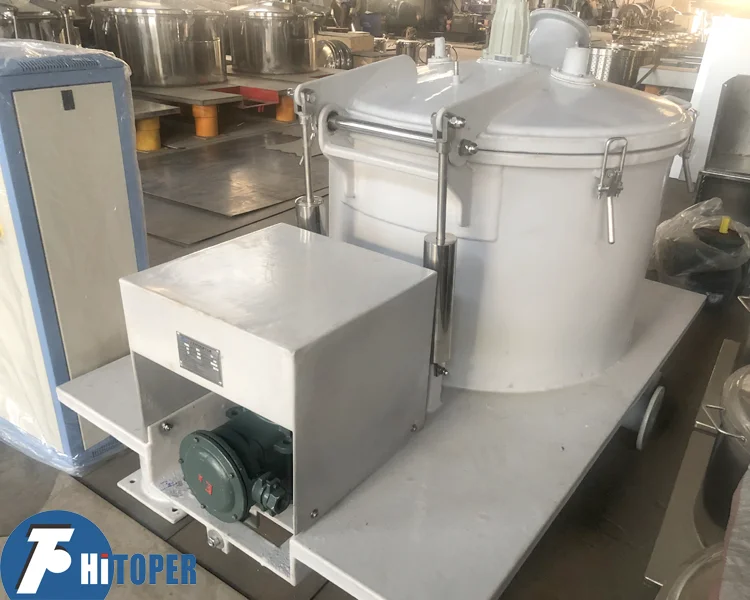

Chemical, medicine, food, refining, clay electroplating use of centrifuge



This solid liquid separation centrifuge is a kind of improved centrifuge base on SD series three feet up discharge centrifuge. This centrifuge is especially excellent corrosion resistance, the ability of various concentrations of acid, alkali, salt, strong oxidants, organic compounds and all other strong corrosive chemical media. For the efficient anti-corrosion lining plastic centrifuge centrifuge, using roll lining form, the centrifugal attached to the surface layer of plastic coating, resistant to acid, alkali, salt and other properties.



With the features of reduce labor intensity, quick discharging, easy cleaning filter bag, the PSD series centrifuge machine has received good reputation. With the construction coated with plastic, it's the best choice for you to fight with chloride. Also with this type centrifuge, we got rid of traditional suspending type of three legs support, it adopts flat-plate counterweight and high viscosity damping agent vibration isolator for absorbing the vibration, and the installation don't need concrete foundration,



Structure & principle,

1) Structure: Optional shell configuration flip and the feed pipe, washing pipe, observation window, exhaust hole lightening hole. Drum, inner and outer surface of the housing, the machine parts exposed surfaces polished (lined) process.
2) a closed structure, drum and the shell, flip and other components lined with plastic manufacturing.
3) stand as the thick steel plate, stainless steel or lined with plastic lining surface
4) Transmission and brake: normal motor (or explosion prevention motor) + inverter + power consumption brake.

use of centrifuge use of centrifuge



This is material of stainless steel for your reference, the centrifuge with plastic coating is the same.



The drum runs with high-speed by motor, materials enter the drum from top feed pipe ,then run forward to the shell of the drum by centrifugal force, in this case liquor pass through the sieve pore and sieve pore of the shell, then be discharged. Then solid be hold in the drum. After the separation open the machine, loosen the lock blocks on lip ring, and suspend the lip ring together with the filter bags containing cake to discharge. Loosen the grip, make sure the filter bag open, then the filter cake will automatic drop down.

use of centrifuge



Application,

1. Chemical industry: gypsum, ammonium sulphate, glauber's salt, copper, nickel sulfate, ferric sulfate, sulfur acid, potassium chloride, acetic acid, borax, soda, rubber additives, dyes, pigments, plastic raw materials, soap, grease, various types of resins and other chemical products.

2.The food industry: salt, MSG, food additives, chemical seasoning, starch, sugar.

3. Mining and metallurgy, copper, zinc, aluminium, mineral and metal refining, etc.

4. Environmental protection,gypsum, water purifying sludge and sewage sludge treatment.



Technical parameters,

Type

Drum

Separation factor

(w2r/g)

Motor power

(KW)

Weight(kg)

Dimension(mm)

(L×W×H)

Dia.(mm)

Volume(L)

Load limit(kg)

Rotation speed (r/min)

PD800

800

100

135

1200

645

7.5

1500

1680×1300×980

PD1000

1000

175

250

1000

560

11

2500

2000×1550×1280

PD1200

1200

280

300

960

620

18.5

3000

2260×1750×1300

PD1250

1250

300

350

960

645

18.5

3800

2260×1765×1350

PD1500

1500

600

650

650

355

22

4800

2600x2135x1620



Optional device,

1. Safety protection: Nitrogen protection (anti-explosion) system, vibration protection, temperature protection, electric-mechanical interlocking, speed monitoring and overload protection.
2. CIP system: Cleaning ball and spray pipe.
3. Washing mode: Atomized nozzle rinsing, feed disk washing, pulse type washing.
4. Nitrogen protection system: Automatic control device, hydraulic sealing device and gas-liquid separator.

5. External construction: Multiple constructions including big hinged cover, fully hinged cover and flat cover.
6. Feed type: inclined feed disk, side feed, middle feed pipe and material level detection device.
7. Scraper discharge: Pneumatic, hydraulic and liquid-phase skimming disc.
8. Motor drive: Common motor, inverter-duty motor and explosion-proof motor.

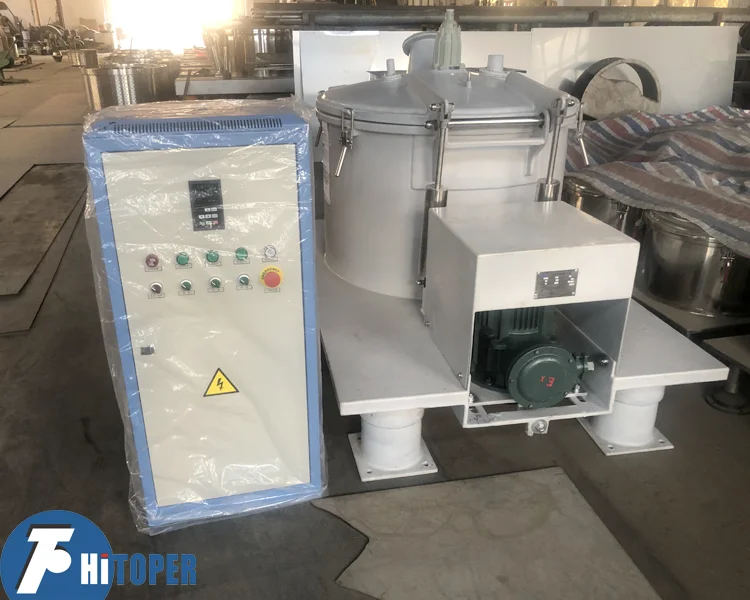

Details pictures,

use of centrifuge



use of centrifuge  use of centrifuge



About the package and delivery,

use of centrifuge



Exported wooden package and delviery by sea, by air, or by train.

use of centrifuge





Company infos,

 1. About Toper
Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment.
2. Global service
Since 2006, Zhengzhou Toper has supplied products and service to over 200 enterprises of 30 more countries and areas excluding China mainland.
Southeast Asia: Indonesia, Malaysia, the Philippines, and Thailand; West Asia: Turkey, Uzbekistan and Tajikistan; Northeast Asia:Mongolia; Middle East: Israeli, Palestinian, Oman, Bahrain; Europe: Russia, Italy, Spain, Ukraine, Finland, Poland, Romania; North America: Canada, America; South America: Mexico, Guatemala, Argentina, Brazil, Chile, Peru, Bolivia; Africa: South Africa, Algeria and so on.
Our products are well-known at home and abroad. We have thousands of users throughout China and clients in the world markets. "Establish TOPER brand for the satisfaction of users" is our persistent pursuit.
3. Products
Full automatic filter press, membrane filter press, mechanical compress filter press, jack compress filter press, cast iron plate and frame filter press, stainless steel filter press, round plate filter press, belt squeezing filter press, belt thickening and dewatering filter press, three-foot centrifuge, flat panel filter press, horizontal screw sedimentation centrifuge, tubular centrifuge, vacuum disc type filter, various filter equipment, filter plate and filter cloth and so on.
4. Application
Our filter and separation equipments are widely used in mining, metallurgy, petroleum, chemical, environmental protection, electroplating, food,oil, biological, beverage, brewing, textiles, printing and dyeing, papermaking, inorganic salt, coal washing, sewage treatment, ceramics, leather such industries
5. Factory Capability
Manufacture Experience: since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipments.
6 Technology CapabilityWe join and make the standard of filter press industry.
7. Our Superioritywe are one of the TOP 3 in the field of filter press of China.
8. Factory ScaleMore than 250,000 square metre land area and continue developing
