Chemxin 23 Support Media 6mm 13mm 19mm Inert Alumina Ceramic Ball for Petrochemical Industry
Other recommendations for your business

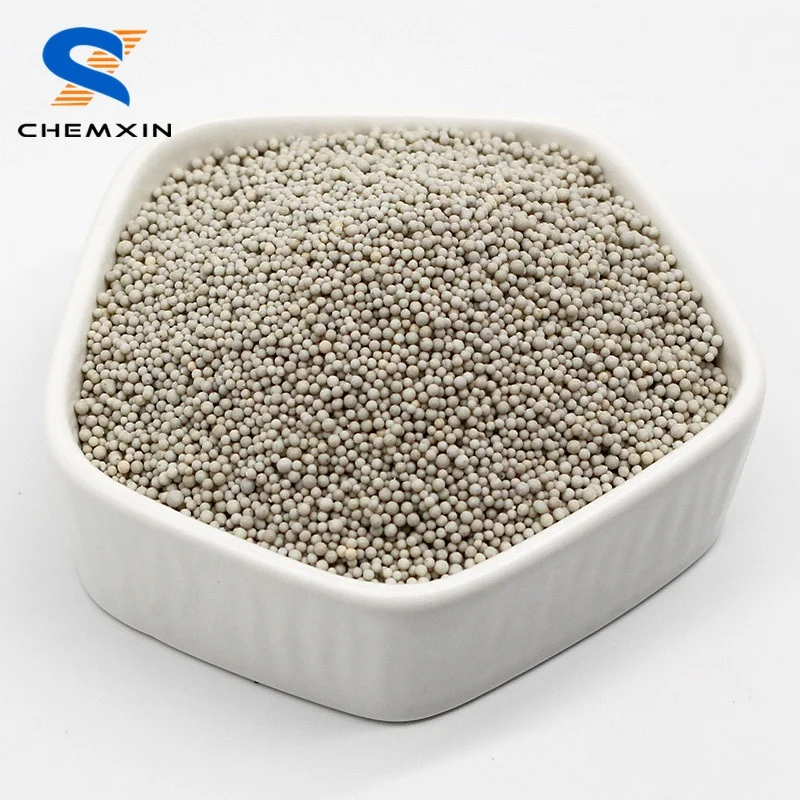

High Density 3mm 6mm 10mm Support Media 17-19% Alumina Ceramic Balls for Hydroprocessing Application
Contact us
Quik Detail
| Place of Origin | Jiangxi, China |
|---|---|
| Type | Ceramic Balls |
| Application | Industrial Ceramic |
| Material | Alumina Ceramic |
| Model Number | ceramic ball |
| Brand Name | CHEMXIN |
| Certificate | BV |
| Color | grey |
| Size | 3-50mm or customized |
| Al2O3 Composition | 17-23% |
| Bulk density | 1.35 g/cm3 |
| Quality Management | ISO9001,ISO1 4001,ISO1 8001 |
| Moh's hardness scale | >6.5 |
| Water absorption | <1.0wt.% |
| Keywords | ceramic ball |
Product Detail

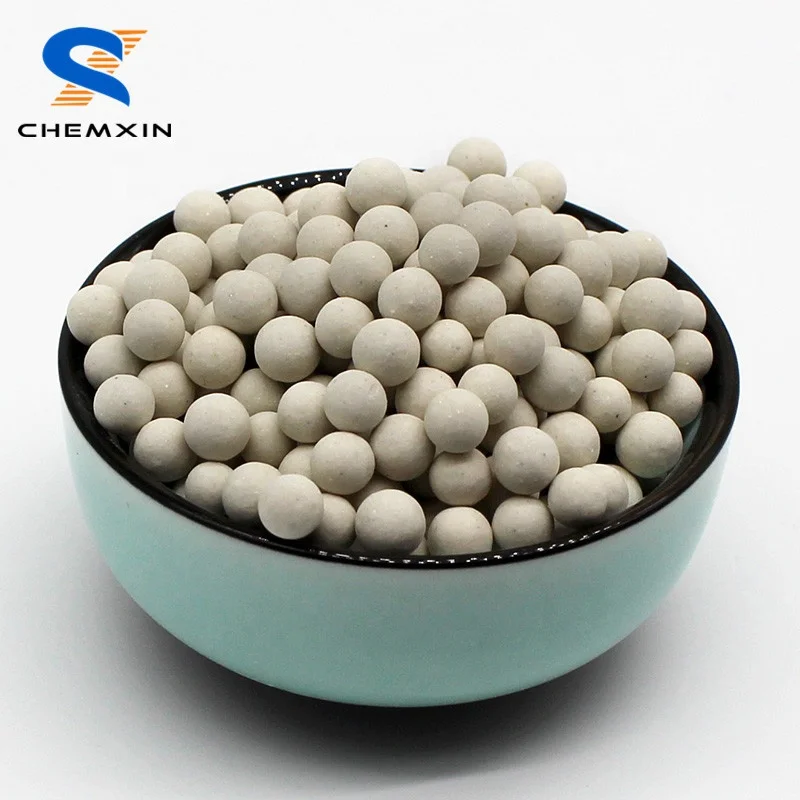

Chemxin 23 support media 6mm 13mm 19mm inert alumina ceramic ball for petrochemical industry
The Chemxin 23 Support Media is one of the new media in the industry with unmatched impact resistance, thermal shock, crush strength, andsurvivability. Products to these specifications are manufactured from very high quality chemical-porcelain clay materials, which has quite excellentstability, high mechanical strength and resistance to thermal shock, This makes them all ideal choice for support of all types of catalyst.
Technical Parameter:
| Model | Chemxin 23 | |||
| Color | Light Grey | |||
| Shape | Ball | |||
| Typical Technical Composition | Min. % | Max. % | Usual% | |
| SiO2 | 64 | 75 | 68.4 | |
| Al2O3 | 18 | 26 | 24.5 | |
|
Fe2O3 |
****** |
1.6 | 0.9 | |
| TiO2 | ****** | 1.4 | 0.96 | |
| CaO | ****** | 1.65 | 0.42 | |
| MgO | ****** | 0.6 | 0.38 | |
| Na2O | ****** | 2 | 1.12 | |
| K2O |
****** |
3.5 | 3.28 | |
| Al2O3+SiO2 |
90 |
96 | 92.9 | |
| Physical properties | ||||
| Index |
Value |
Value | ||
| Leachable Iron |
≤ 0.1% |
****** |
||
| Apparent Porosity by Weight | 2-6% | ****** | ||
| Moh's Hardness Scale | >6.5 | ****** | ||
| Water Absorption | <1.0 wt.% | ****** | ||
| Acid Resistance | >99.8% | ****** | ||
| Thermal Conductivity | 0.9-1.0 w/m2.k | ****** | ||
| Thermal Expansion @ 500 | 0.20% | ****** | ||
| Specific Heat | 628-837j/kgq | ****** | ||
| Thermal Shock Stability, 1000 then water cooling | 10 times | ****** | ||
| Max. Operating Temperature | 1050°C | 1922 | ||
| Specific Density | 2200 kg/m3 | 137 lb/ft3 | ||
| Bulk Density (Packing Density) | 1300 kg/m3 | 81 lb/ft3 | ||
| Crush Strength | ||||
| Size | Crush Strength | |||
| Nominal Size | (lbs) | (kg) | (N/pc) | |
| mm | inch | min. | min. | min. |
| 3 | 1/8" | 84 | 38 | 372 |
| 6 | 1/4" | 209 | 95 | 931 |
| 10 | 3/8" | 282 | 128 | 1254 |
| 13 | 1/2" | 616 | 280 | 2744 |
| 16 | 5/8" | 770 | 350 | 3430 |
| 19 | 3/4" | 1738 | 790 | 7742 |
| 25 | 1" | 1936 | 880 | 8624 |
| 38 | 1-1/2" | 2156 | 980 | 9604 |
| 50 | 2" | 3564 | 1620 | 15876 |
CHEMXIN is one of the biggest leading manufacturer of adsorbents, tower support medias and tower packings in China. Our factory covers an area of 42,000M2 with fully automatic production lines, intelligent warehouse, perfect production system, as well as excellent quality control system throughout all stages of production. We have nearly 20 years of factory production experience enables us to guarantee customer satisfaction.
At present, our company is sinopec network resource market supplier. Our products have been widely used in electricity, petroleum, chemical, metallurgy, environmental protection, pharmaceutical, aerospace, aviation and other industries throughout the country. Exports to more than 130 countries and regions overseas. We have provided products and professional services for dozens of the world's top 500 for many years, like SINOPC, AIRLIQUID, GE, BAYER, TATA GROUP, SORBEAD ect.
