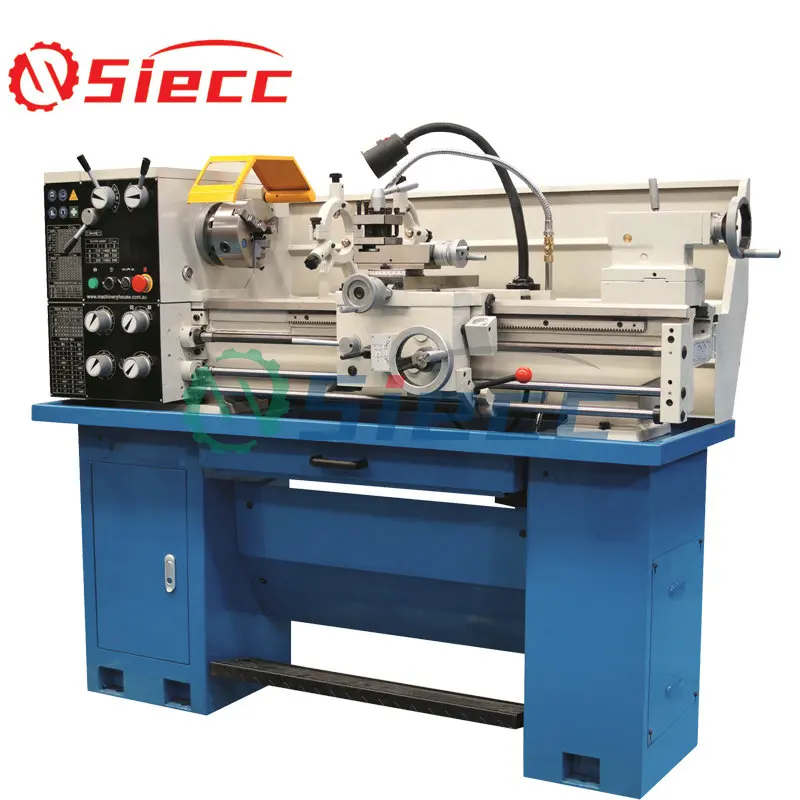

Chinese Lathe Manufacturer High Precision Lathe Manual Metal Lathe Machine CQ6236G
US $7,000.00 / set
1 set(s)Minimum order
place of origin:
Jiangsu, China
brand name:
SIECCTECH
voltage:
380V/50HZ/3PH
After-sales Service Provided:
Engineers available to service machinery overseas
Condition:
New
Certification:
CE/ISO/SGS/GOST
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$4,500.00-5,000.00
10 sets (MOQ)
$4,000.00-5,000.00
1 set (MOQ)
$4,500.00-5,000.00
10 sets (MOQ)
Contact us
Quik Detail
| place of origin | Jiangsu, China |
|---|---|
| brand name | SIECCTECH |
| voltage | 380V/50HZ/3PH |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Condition | New |
| Certification | CE/ISO/SGS/GOST |
Product Detail
Product Description
| Model No. | CQ6232G x750 CQ6232G x1000 |
| Item No. | CQ6236G x750 CQ6236G x1000 |
| Specifications | |
| Distance between centers | 750/1000 mm |
| Swing over bed | 330 mm 360mm |
| Swing over gap | 476 mm 491mm |
| Swing over cross slide | 198 mm 212mm |
| Bed width | 187 mm |
| Taper of spindle bore | MT5 |
| Spindle nose | D1-4 |
| Spindle bore | 38 mm or 52mm |
| Step of spindle speeds | 8 |
| Range of spindle speeds | 70-2000 rpm |
| Range of cross feeds | 0.018-0.238 mm/r |
| Range of longitudinal feeds | 0.078-1.044 mm/r |
| Range of inch threads | 2-1/4-40 T.P.I |
| Range of metric threads | 0.45-10 mm |
| Top slide travel | 76 mm |
| Cross slide travel | 175 mm |
| Tailstock quill travel | 92 mm |
| Taper of tailstock quill | MT3 |
| Motor | 1.5 kw |
| Packing size | 1740/1950 x 750 x 1510 mm |
| Net weight | (750mm) 570/620kgs (1000mm) 640/690kgs |
| Standard Accessories | Optional Accessories |
| 3-jaw chuck (160mm) | Quick change tool post |
| 4-jaw chuck (200mm) | Turning tools |
| Face plate (250mm) | Micro carriage stop |
| Steady rest | Halogen work lamp |
| Follow rest | Leadscrew cover |
| Splash guard | Chuck guard |
| Stand & oil tray | Tool post cover |
