Double Head Spindle 1325 ATC CNC Router Machine with Saw Blade Servo Motor
Other recommendations for your business
Contact us
Quik Detail
| positioning accuracy (mm) | 0.03 mm |
|---|---|
| number of axes | 4 |
| no. of spindles | Double |
| working table size(mm) | 1300×2500 |
| machine type | CNC Router |
| travel (x axis)(mm) | 1300 mm |
| travel (y axis)(mm) | 2500 mm |
| repeatability (x/y/z) (mm) | 0.03 mm |
| cnc or not | CNC |
| place of origin | Shandong, China |
| brand name | ACCTEK |
| voltage | AC380V, 50/60HZ, 3PH |
| dimension(l*w*h) | 3500*2250*1880mm |
| weight (kg) | 1600 |
| control system brand | Syntec |
| warranty | 3 years |
| key selling points | Multifunctional |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| core components | motor |
| Working are | 1300x2500x250mm |
| Spindle | 9.0KW Air Cooling Spindle |
| Optional function | Saw cutting head |
| Controller | Taiwan SYNTEC system |
| Motor and driver | Taiwan Delta servo |
| Transmission | helical rack&Taiwan TBI Ball Screw |
| Working table | T-slot&air absorbing table with PVC protection |
| Inverter | Delta Inverter |
| Rail | Taiwan HIWIN linear guide rail |
| Optional | Side rotary attachment |
| Condition | New |
| Warranty of core components | 1.5 years |
| Applicable Industries | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction works , Advertising Company, Other |
Product Detail
提示信息

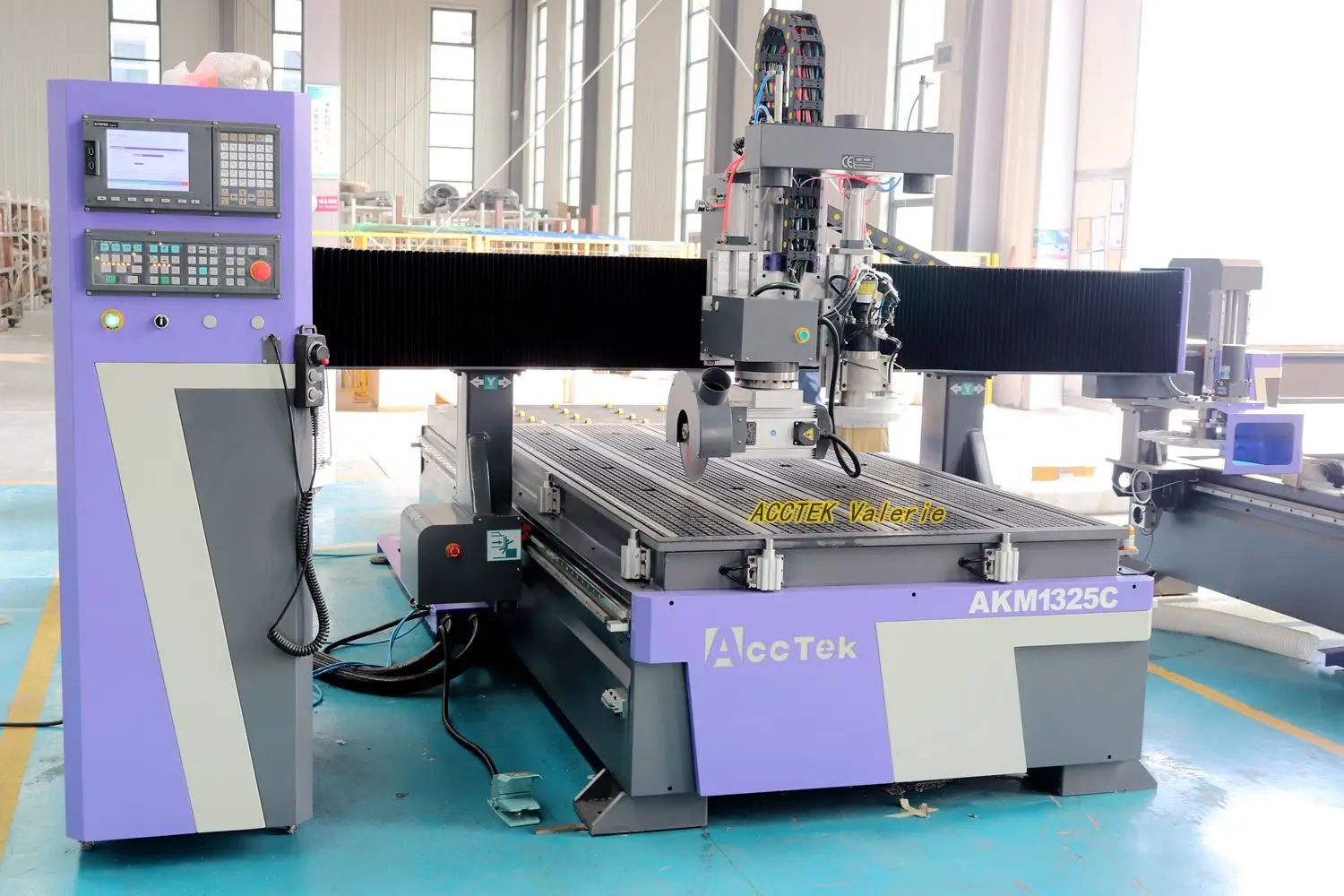

Double Head spindle 1325 ATC CNC Router Machine with Saw Blade Servo Motor
Features of wood cnc router
1.The working size is 1300*2500*250mm,for the Z axis can be increased.
2.9kw ATC spindle with 11kw Taiwan DELTA inverter(top brand in the world,global warranty service).
3. Taiwan Delta Servo system (famous brand in the servo system ).
4.SYNTEC control system (famous brand ,mulifunctional ,and longer life time).
5.Rotary device is available for processing cylinder object, but at a very economical price.
6.With linear tool changer, constructed with world-class components, consistent high performance.
7.Featuring Italian high frequency air-cooling electronic spindle and world-class servo motor and driving system.
8.Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down power and also enables you to clamp the workpiece in place.
9.Taiwan Original TBI ball screw for Z travel.
10.Taiwan HIWIN Linear guide.
11.The Linear auto tool changer storage with 8 pieces.
12.Saw for cutting material with diameter 320mm
Machine Details of wood cnc router
»Two heads: atc 9.0kw air cooling spindle, rotate speed 0-24000rpm. Well-known brands, long working life, low noise, strong cutting ability to ensure the long time working.
Circle saw for cutting, diameter 320mm, max cutting thickness about 50mm, no need layered cutting.
»Taiwan Syntec control system with handwheel: Easy operation. Support offline operation, more stable.
»Linear type Tool changer: With 8pcs/10pcs tool holders and tool shanks, can save working time and will work so convenient.
»Controller cabinet: contains Taiwan Delta servo driver system, Taiwan Delta inverter, Taiwan Syntec 6MB
controller system, French Schneider electrical components, and other orderly electrical parts. Every cables has clear mark, very easy to recognize, and very safe.
Technical data of wood cnc router
|
X Y Z working area
|
1300*2500*250mm
|
|
Whole structure
|
Heavy duty frame
|
|
Table surface
|
T-slot & Vacuum with vacuum pump
|
|
Movement parts
|
X,Y axis by gear, Z axis by Taiwan TBI Ball screw
|
|
Spindle
|
9.0KW atc air cooling spindle
|
|
Spindle speed
|
0-18000 RPM
|
|
Drive Motor
|
Taiwan Delta 750w servo motor and drivers
|
|
Max. Rapid Travel Rate
|
30000 mm/min
|
|
Max. Working speed
|
10000mm/min
|
|
Control System
|
Taiwan Syntec 6MA/B with handwheel
|
|
Software
|
Type3, Artcam, Ucancam
|
|
Machine precision
|
0.01mm
|
|
Repositioning precision
|
0.03mm
|
|
Command
|
G code
|
|
Working Voltage
|
AC 220/380V, 50/60HZ
|
|
Net weight
|
1600KG
|
|
Dust Collector
|
3.0kw double bags dust collector
|
|
Inverter brand
|
Taiwan Delta inverter
|
Applications of wood cnc router
1) Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2) Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3) Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4) Artwork and Decoration
Wood crafts; gift box; jewelry box, etc.
5) Others
Relief sculpture and 3D engraving and Cylindrical object, etc.
Payment of wood cnc router
*We accept T/T or Western Union or Trade Assurance on Alibaba, you can pay 30% in advance, 70% before delivery.
*The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.
*After you agree, please finish the balance. Finally,we arrange the delivery.
Delivery of wood cnc router
*Outside package: Standard marine export plywood case .
*Inner package: Stretch film and plastic film for humidity .
*We can package according to your requests.
After-sale Services of wood cnc router
1)1years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2)Lifetime maintenance free of charge.
3)Free training course at our plant.
4)We will provide the consumable parts at an agency price when you need replacement.
5)24 hours on line service each day, free technical support.
6)Machine has been adjusted before delivery.
7)Our staff can be sent to your company to install or adjust if necessary.
