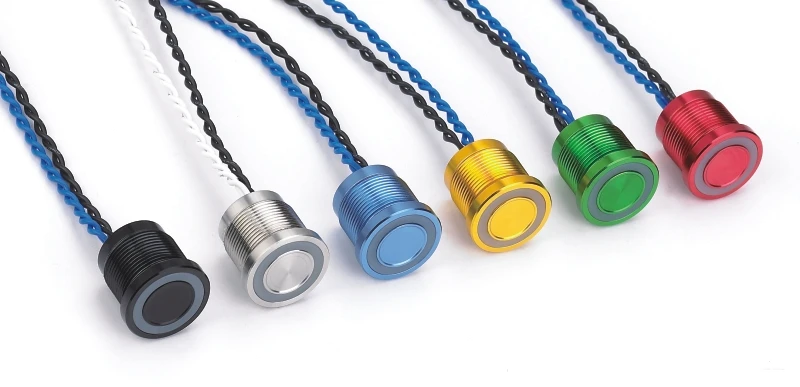

ELEWIND 19MM Piezo Switch With Circle Light( Different LED Color Fo Choose)
Other recommendations for your business
Contact us
Quik Detail
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | ELEWIND |
| Model Number | PS193P10Y |
| Max. Current | 200mA |
| Max. Voltage | 24VAC/DC |
| LED | Yes |
| Crust Material : | Stainless steel 316L or Aluminium |
| Install diameter : | 19mm hole diameter |
| Crust color: | Black or Silver |
| Life : | 5 Million |
| Standard : | Rohs, CE |
| Operation force: | 2 to 6 (N) |
| Operation temperature: | - 40 to +75 degree |
| Wire connection: | Multi-wire leads section 0.22mm2 length 300mm,twisted by pair. |
| Certification | CE,Rohs |
| Protection Level | IP68 |
Product Detail
PS193P10Y
-
Install diameter : 19mm hole diameter
-
Rated current : 200mA
-
Rated voltage : 24VAC/DC
-
Crust Material :Silver Black Aluminium or Stainless steel 316L
- Function: Push Pulse ON (Latching can be customized)
-
Crust color: Black or Silver
-
LED Voltage: 5V,12V,24V
-
LED Color: Red,Green,Blue,Yellow, Orange,White (RGB Tri-color can make)
-
IP rated : IP68
-
Life : 5 Million
-
Standard : Rohs, CE
-
Operation force: 2 to 6 (N)
-
Operation temperature: - 40 to +75 degree
-
Wire connection:Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
Other Relative Piezo switch:
2000pcs/15workdays
Payment term:
T/T or paypal before shipment
Trade term:
FOB or EXW Shanghai or Ningbo
Packing detail
Neutral packing, export standard carton
The switches are put in foam box,then paper box
All of the productions are inspected carefully before delivery
Delivery time
We can delivery products within 15days for below 2000pcs after receiving payment. It depends on the quantity ordered
Min.order
It is no MOQ for common products
The MOQ is 200pcs for customize productions
