Economical Laboratory Scale Rolling Ball Mills Machine/5L 10L 15L 20L Dry Wet Ball Mill/ Lab Tumbler Rolling Mill
US $700.00-1,000.00 / set
1 set(s)Minimum order
output (kg/h):
0.1 - 5 kg/h
feeding size (mm):
1 - 10 mm
output size (mesh):
300 - 500 mesh
power (kw):
0.37
range of spindle speed(r.p.m):
60 - 570 r.p.m
material:
SUS304, SUS304L, SUS316, SUS316L, Other
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$2,700.00-3,000.00
1 set (MOQ)
$2,700.00-3,000.00
1 set (MOQ)
$1,800.00-2,600.00
1 set (MOQ)
$1,160.00-1,260.00
1 set (MOQ) Contact us
Quik Detail
| output (kg/h) | 0.1 - 5 kg/h |
|---|---|
| feeding size (mm) | 1 - 10 mm |
| output size (mesh) | 300 - 500 mesh |
| power (kw) | 0.37 |
| range of spindle speed(r.p.m) | 60 - 570 r.p.m |
| material | SUS304, SUS304L, SUS316, SUS316L, Other |
| application | Chemicals Processing, Plastics Processing, Food Processing |
| type | Ball Mill |
| Product Type | powder |
| place of origin | Jiangxi, China |
| brand name | WKD |
| voltage | 220/50hz |
| dimension(l*w*h) | 730*415*260mm |
| weight (kg) | 30 KG |
| warranty | 1 Year |
| key selling points | High-accuracy |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| core components | motor |
| Application | Fine Grinding |
| Product name | wet ball mill 15L |
| Machine Type | Grinder Mill |
| Usage | Make Super Fine Powder |
| Suitable for | Laboratory Resaerch |
| Machine Name | lab roll ball |
| Fineness | 80-600mesh |
| Capacity | 0.5-30kg/h |
| Feature | High Efficency Powder Grinding Machine |
| Grinding media | Steel Ball |
| Condition | New |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Restaurant, Home Use, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops |
| Showroom Location | Saudi Arabia, Indonesia, Mexico, Argentina, Chile, Romania, Bangladesh, Kazakhstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia, Morocco |
| Warranty of core components | 1 Year |
| Marketing Type | IN STOCK |
Product Detail
Product Description
item | WQM lab roll ball mill |
Output (kg/h) | 0.1kg/h - 5kg/h |
Feeding Size (mm) | 1mm - 10mm |
Output Size (mesh) | 300mesh - 500mesh |
Power (kW) | 0.37 |
Range of Spindle Speed(r.p.m) | 60r.p.m - 570r.p.m±10 |
Jar Material | different jar material to meet for different material |
Application | Medicine Processing, Chemicals Processing, Food Processing, mineral processing etc |
Condition | New |
Type | Laboratory Ball Mill |
Product Type | Powder Grinding |
Grinding | dry or wet method |
Place of Origin | China |
Voltage | 220V or do as per your request |
Dimension(L*W*H) | 730*415*260mm |
Weight (KG) | 32KG |
Warranty | 1 Year |
Key Selling Points | Easy to Operate, and super powder milling |
Applicable Industries | Energy & Mining, Other |
Product Introduction for laboratory roller ball mill machine
Lab roll mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production. The
machine is preferred equipment for scientific research, education, experiment and production due to its advantages such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.
machine is preferred equipment for scientific research, education, experiment and production due to its advantages such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.
Features for hot rolling mill lab scale
1. Compact structure, easy operation
2. High efficiency and uniform granularity
3. Milling pot in different size can be put on the driven rubber roller within a certain range by means of adjusting space between
the rubber rollers.
4. It is convenient to change pots and suitable for both wet and dry grinding.
2. High efficiency and uniform granularity
3. Milling pot in different size can be put on the driven rubber roller within a certain range by means of adjusting space between
the rubber rollers.
4. It is convenient to change pots and suitable for both wet and dry grinding.
5. wet and dry
Working principle for lab rolling mill machine
When lab rolling ball mill works, the grinding media and the materials inside the tank are rotated to a certain height. Due to the gravity, they fall down from the tube wall. Materials are crushed by impact action of the grinding media, friction and shearing action of grinding media’s rolling and sliding.

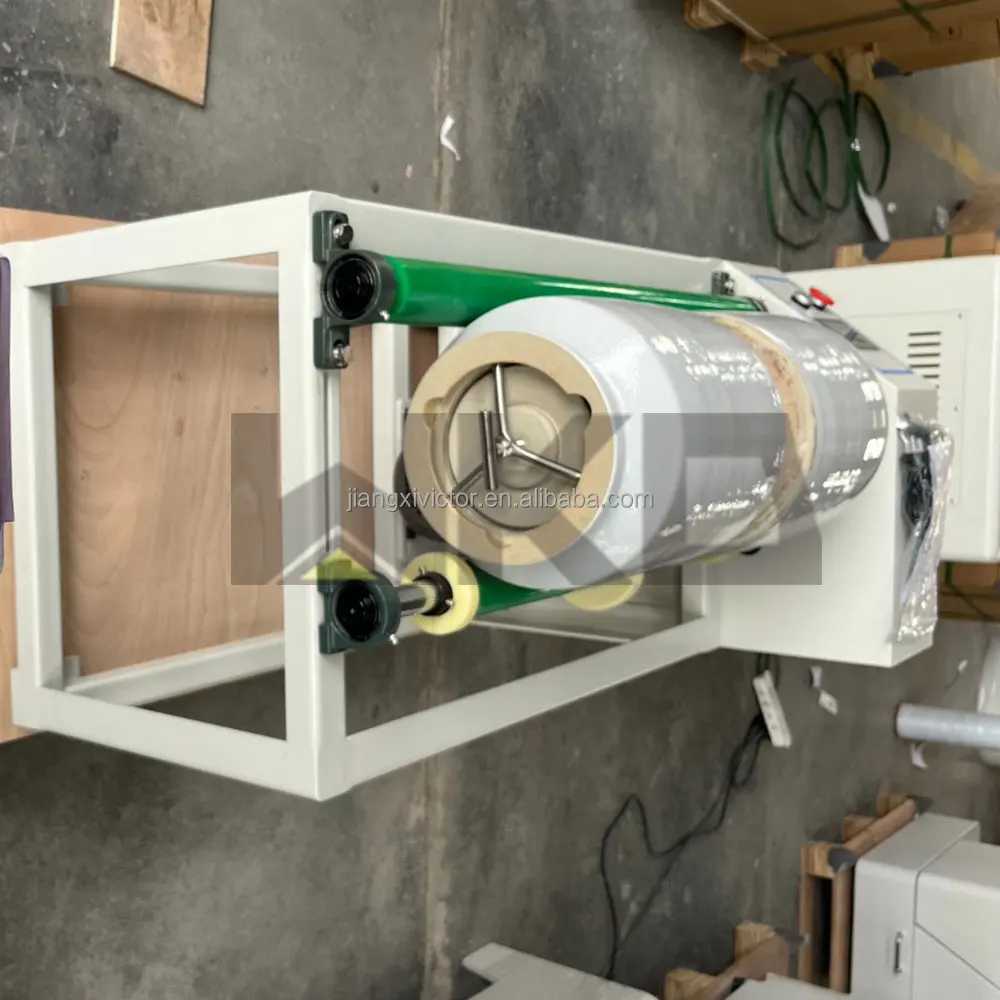

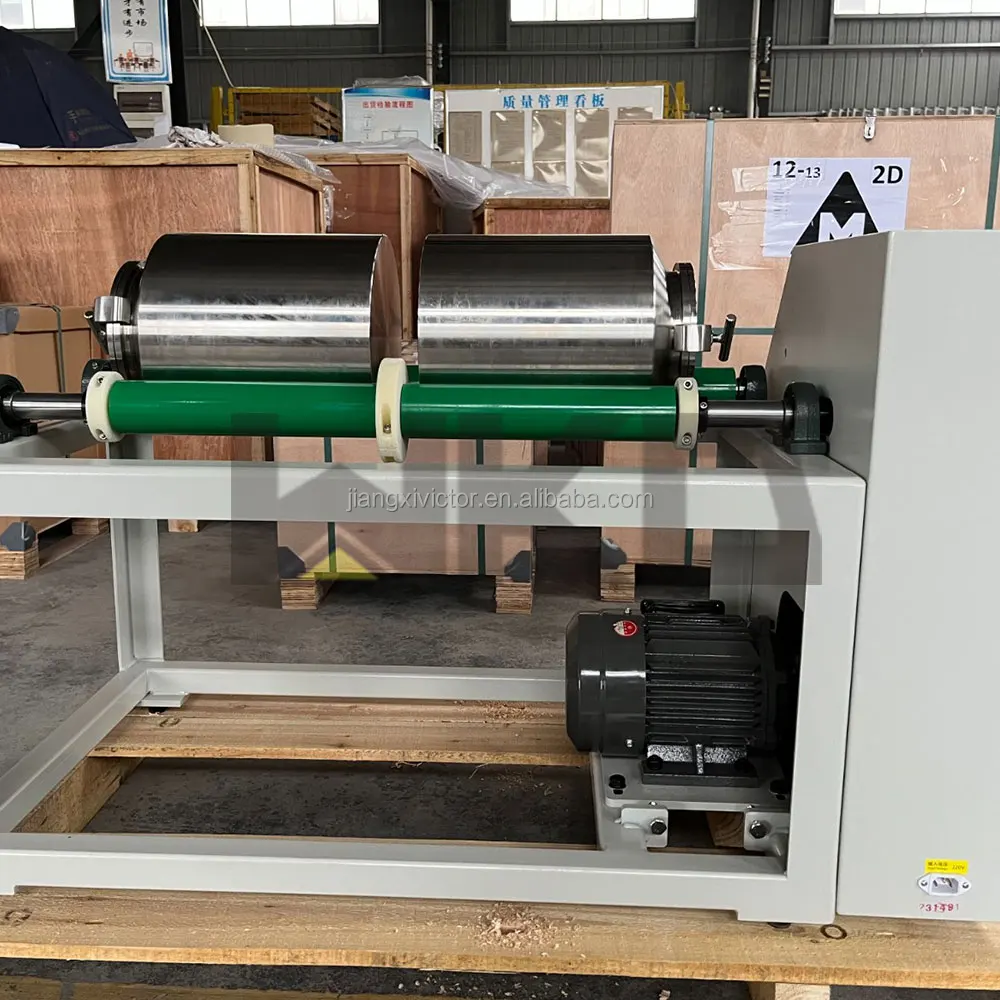

Detailed Image
Technical Parameter
Technical Parameter for super fine powder grinding machine lab roll ball mill
Model No. | QM-5 | QM-15 | ||||||||||||
Dimension / Weight | 730*415*260mm/32kg | 840*435*270mm/43kg | ||||||||||||
Motor Specification | Y0.37-4B3 | Y0.75-4B3 | ||||||||||||
Specification of Frequency Converter | 0.4kw/220v | 0.75kw/220v | ||||||||||||
Rotation Speed Range | 60-570rpm±10 | 60-570rpm±10 | ||||||||||||
Adjustable Space between Rollers | 120mm | 140mm | ||||||||||||
Space between Stations | 260mm | 340mm | ||||||||||||
Max Load Per Jar | 35kg | 80kg | ||||||||||||
Volume of Matched Jar | 0.5-5L | 10-15L | ||||||||||||
