FLYGOO Good Quality Small Portable 2G Industrial Air and Water Ozone Generator for Sewage Water Sterilization
1 unit(s)Minimum order
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
Pump
place of origin:
Guangdong, China
brand name:
Flygoo
warranty:
1 Year
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$585.00-630.00
1 unit (MOQ)
$15.00-18.00
5 units (MOQ)
$700.00-784.00
2 units (MOQ)
$318.00-374.00
2 units (MOQ) Contact us
Quik Detail
| video outgoing-inspection | Provided |
|---|---|
| machinery test report | Provided |
| core components | Pump |
| place of origin | Guangdong, China |
| brand name | Flygoo |
| warranty | 1 Year |
| productivity | 100L/Hour |
| weight (kg) | 6 kg |
| Ozone capacity | 2Gr |
| O3 concentration rate | 5~15mg/m3 |
| Power | 55W, 0.55kw |
| Size | 250*180*480mm, 250*180*480mm |
| Material | Stainless Steel, Carton Case |
| Ozone Technology | High Voltage Discharge |
| Product Weight | 6kgs |
| Warranty | 12 Months |
| Cooling Method | Air cooling |
| Gas feeding | Dry atmosphere air |
| Condition | New |
| Applicable Industries | hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Food Shop, Energy & Mining |
| Showroom Location | None |
| Warranty of core components | 1 Year |
| Weight | 6kgs |
| Marketing Type | New Product 2024 |
Product Detail
FLYGOO Good Quality 3gr Industrial Air and Water Ozone Generator for Sewage Water Sterilization
Product Description
The FG-H series units are designed for heat-resistant quartz glass structure dielectric (patent), with large power IGBT modules.The structure is extremely stable, long lifespan and high discharge efficiency. The units are air-cooled and feature in-built in air pump. The units generating components are housed in an all stainless steel enclosure and touch screen are easy to use and view.The unit feature: timer remote control, LCD display, IOT WiFi control, various ozone output(10-100%).

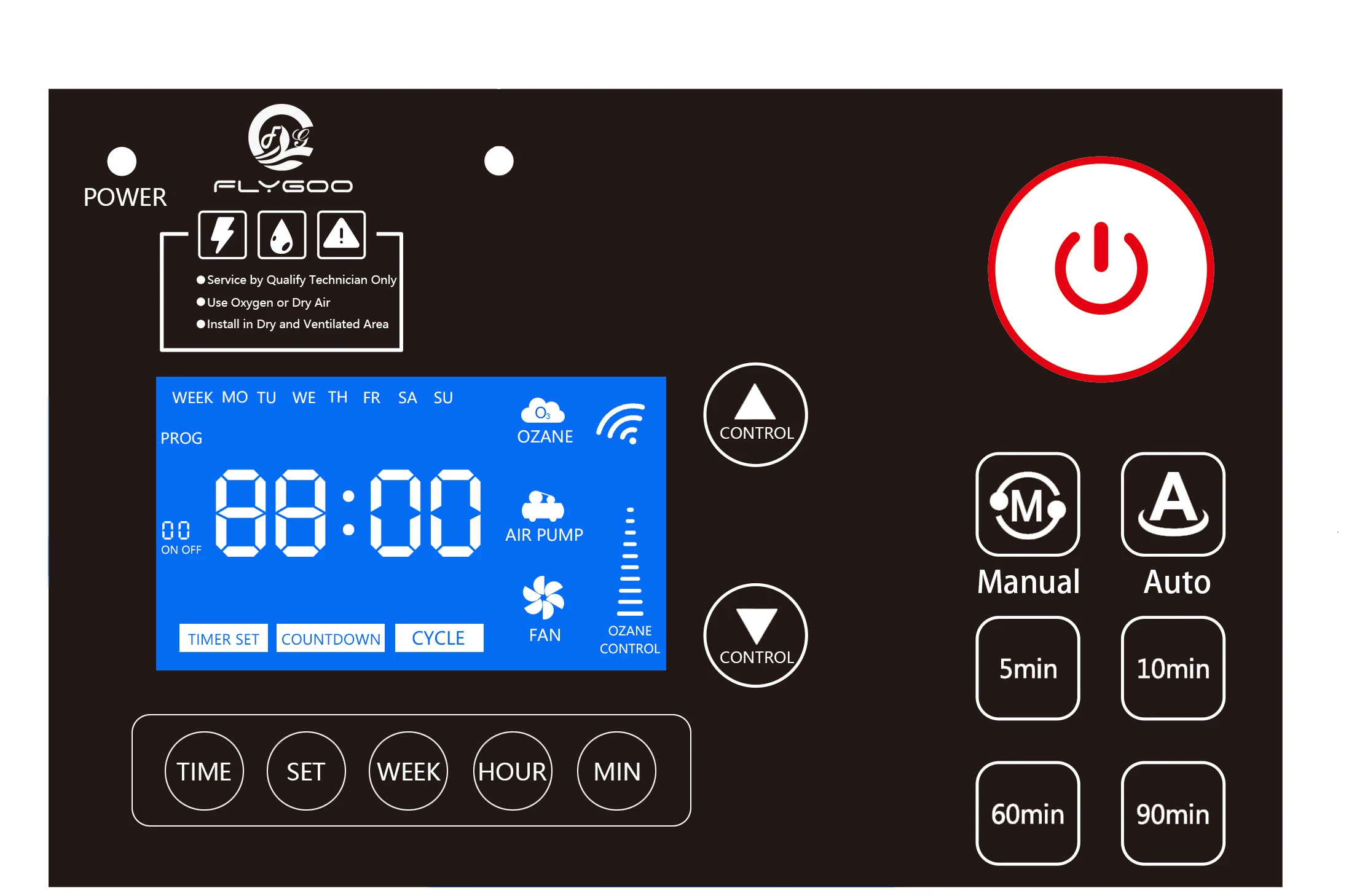

New FG Ozonator Control Panel Instructions：Weekly Programmable Timer Setting Mode；Countdown Control；Cycle Time Control；Manual Control
Product Paramenters
Item | Unit | FG-H | ||||||||
Ozone Output | g/hr | 2 | 5 | 3 | 15 | 5 | ||||
Ref. Disinfection Area* | m2 | 20-30 | 550 | 30-40 | 700 | 40-90 | ||||
Power | w | 55 | 65 | 85 | ||||||
Control | / | IOT WiFi /Remote Control/ Hand Manual | ||||||||
Electric | VAC/Hz | 220~240/50~60; 110/60 | ||||||||
Gas Feed | / | Dry Clean Air | ||||||||
Ozone Concentration | mg/l | Air supply:5~15 | ||||||||
Size(L*W*H) | mm | 250*180*480 | ||||||||
Weight | kg | 5.0 | 5.4 | 6.0 | ||||||
Cooling Way | / | Air-cooled | ||||||||
Inner Air Pump | Yes/No | Yes | ||||||||
Ambient Humidity | % | <70 | ||||||||
Ambient Temperature | ºC | <40 | ||||||||
Core technique
Product Features
New FG Ozonator Control Panel Instructions
Ozone Generator Features:
1. Multi-point malfunction detection of power supply: Over voltage, over current, and over temperature protection.
2. The equipment utilized large power IGBT modules,extremely stable, high-efficiency dehydroxylation quartz tube structure.
3. Adjustable ozone output, which will change ozone output & concentration for meeting with different lines requirements.
4. With condenser and filters for remove water which can protect the ozone unit for long service life in good working condition.
5. Water cooling system: 24/7 continuous working.
6. Corona discharging ozone technology
7. Variable timing control
8. Stainless steel enclosure
9. CE, ROHS Certification
1. Multi-point malfunction detection of power supply: Over voltage, over current, and over temperature protection.
2. The equipment utilized large power IGBT modules,extremely stable, high-efficiency dehydroxylation quartz tube structure.
3. Adjustable ozone output, which will change ozone output & concentration for meeting with different lines requirements.
4. With condenser and filters for remove water which can protect the ozone unit for long service life in good working condition.
5. Water cooling system: 24/7 continuous working.
6. Corona discharging ozone technology
7. Variable timing control
8. Stainless steel enclosure
9. CE, ROHS Certification
