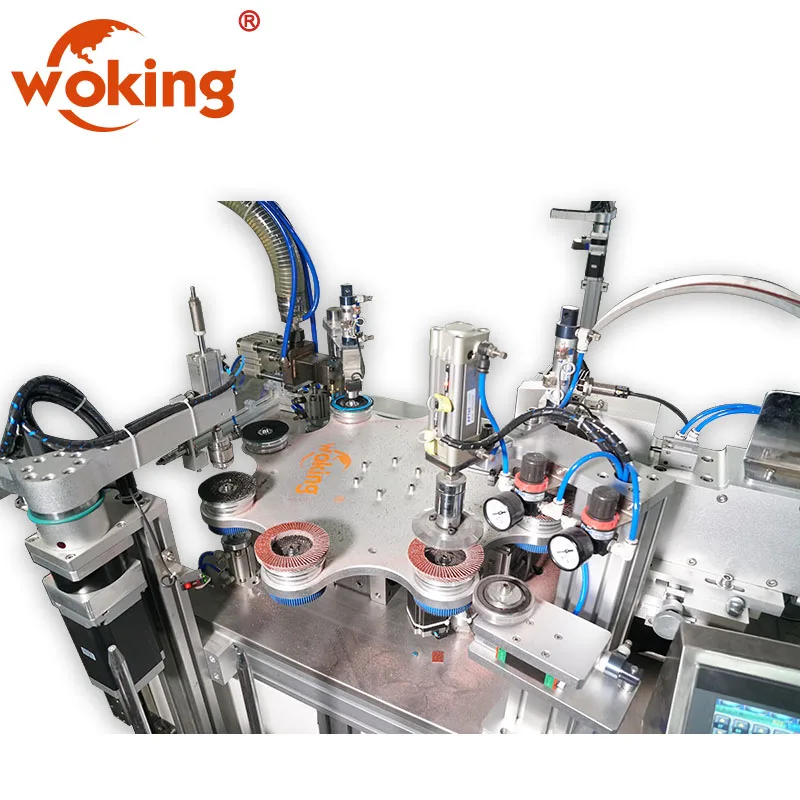

Full-Automatic Flap Disc Machine

US $16,764.71-17,647.06 / set
1 set(s)Minimum order
place of origin:
Henan, China
brand name:
WOKING
Condition:
New
After-sales Service Provided:
Engineers available to service machinery overseas
Model:
T27 & T29
Size of flap disc:
100mm to 180mm
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

place of origin

Henan, China

brand name

WOKING

Condition

New

After-sales Service Provided

Engineers available to service machinery overseas

Model

T27 & T29

Size of flap disc

100mm to 180mm

Voltage

380v/50HZ(as Customers' Request )

Auxiliary Voltage

24 V

Operation

Electromechanical

Flap size range

Width(22mm to 39mm) x Length(14mm to 25mm)

Gluing pump

Heating water circulation

Gluing pump volume

30 kgs & 300 kgs

Productivity

6800 Pieces / 10 hours

PLC language

English

Product Detail

Product Description


In abrasives industry, what most relies on manual and labor is the producing process of flap disc.With the increasing labor cost,it is likely that automated production is the best solution.However,the Germany,Italy etc. brand of full automatic flap disc machines are too expensive for manufacturers to buy. Therefore, this is the reason that promote our WOKING brand made in China Full automatic flap disc machine.
SPECIFICATIONS FOR Full automatic flap disc making machine
Host Machine
Flap disc size
Dia: 100mm to 180mm;
Type:T27 & T29
Host Machine
Backing Pad material
Fiber glass, Plastic
Host Machine
Flap sheet Size
Width(22mm to 39mm);
Length(14mm to 25mm)
Glue System
Function
Heating water circulation
Host Machine
Glue control
2g to 35g; error ± 0.3g
Host Machine
Glue volume
30 kgs or 300 kgs
Package
Host machine
1400mm(L) x 1250mm(W) x 1750mm(H)
Package
Glue system
950mm(L) x 680mm(W) x 1460mm (H)
Package
Feeding system
1170mm(L) x 460mm(W) x 1460mm(H)

Main Features

A. Head System

① Using lift model to ensure that the product defect rate less than 1%~2%
② Using Head tilt operation to finish T29 type producing
③ When converting different types of products can be achieved quickly adjusted conversioin.
④ Muted effect,low noise and vibration,excellent durability,the worker operation improved,environment has been greatly imporved.
⑤ An inspection system to prevent an erronous operation.
⑥ High utilization of emery cloth strips.

B. Turntable System

Each Pallet smooth transition fast,precise prositioning,good durability.

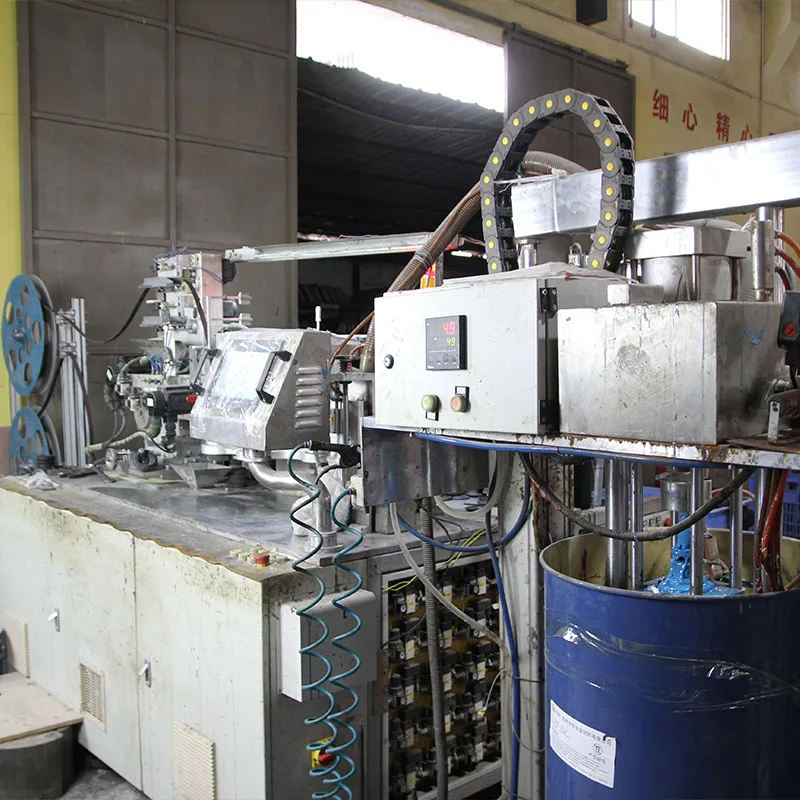

C. Gluing System

① Smart thermostat water circulation system.For adhesive road achieve comprehensive heating.In order to get better performance of the glue,ensure the stability of setting abrasive sheets.
② Gluing system with the last design,ensure accuracy of the glue volume,consistency and durability,the stability of product quality is guaranteed.

D. Convey Machine

All intelligent automatic feeding,feed off,abrasive cloth roll can be change quickly and easily.

Our Service

Pre-Sales Service

* Abrasive jumbo cloth roll manufacturer in Henan.

* Sample testing support.

* View our Factory.

After-Sales Service

* 7x24 After Sale Service

* With us your money in SAFE your business in SAFE.

Flap disc machines

1.Slitting width: 6-500mm

2.Slitting variable speed:2-10 m/min

3.Electromagnetic variable force control: 25 N.m

4.Knife variable setting presure: 200-800 Kgf

5.Pneumatic Pressure: 0.7 Mpa

6.Slitting accuracy:±0.5 mm

7.Overall machine dimensions: 1.5x1.05x1m(LxWxH)


1.Volume:1.5 Cubic Meter
2.Out Size: 1.8m x 1.4m x 1.3m
3.Inner Size:1.5m x 1.0m x 1.0m
4.Power:16 KW

5.Temperture:0 to 300 ℃ (±2℃)

6.Layer:2 layers/3 layers available

Package
Delivery
Packaging
Size
1400mm(L)×1250mm(W)×1750mm(H)
Weight
850 KGS



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
