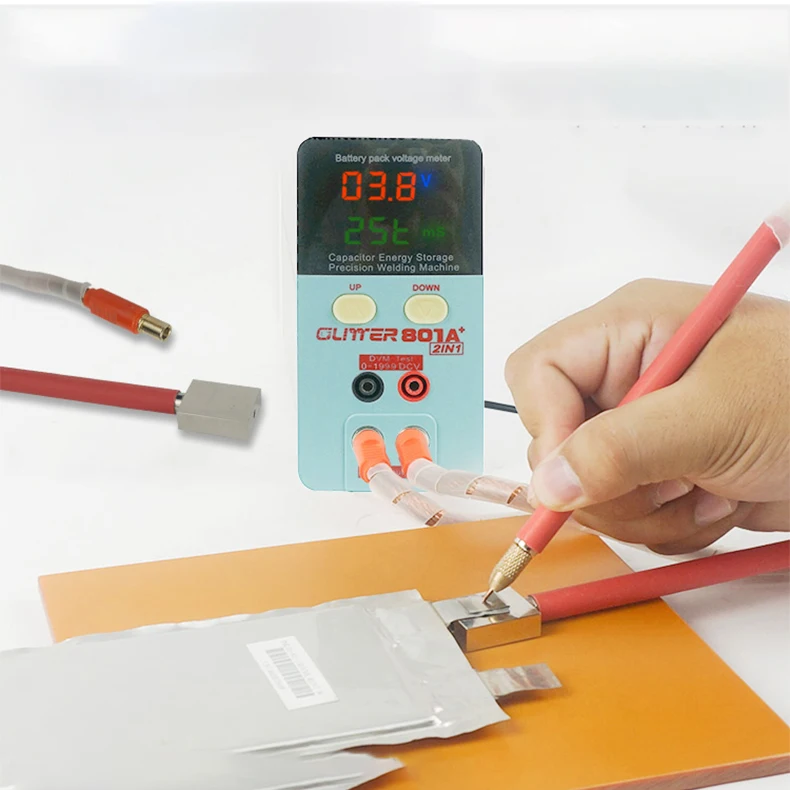

Glitter 801A+ 2 in 1 Welding and Test Voltage Welding Machine 70B Split Welding Pen Battery Pack Spot Welder for 18650 Battery

US $105.00-115.00 / piece
1 piece(s)Minimum order
condition:
New
place of origin:
Guangdong, China
brand name:
Glitter
rated capacity:
12kva
max. welding thickness:
0.3mm
usage:
spot welding
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

condition

New

place of origin

Guangdong, China

brand name

Glitter

rated capacity

12kva

max. welding thickness

0.3mm

usage

spot welding

voltage

220V, 110V

warranty

1 Year

power (kw)

11.6KW

weight (kg)

4

Product Detail

Features:

1. Compared to the traditionalAC spot weldingmachine,the

new-designed 801A+ capacitor energy-storage spot welder has no interfere to the electric circuit, no more tripping problems.

2.The 801A+adopts the latest energy-gathered pulse welding technology, it has agreat welding power, the welding spot is nice and elegant,ensuring you a reliableweldingeffect.

3.The maximum welding power of the machine can be up to 11.6KW meeting the needsforlarge-batterieswelding.

4.The welding power can be adjusted conveniently via two buttons according to thethickness of welding objects, the LED screen will display the welding parameters.

5.The machine is equipped with two super capacitors which have long working-life andlarge capacity, ensuring the lowpower-consumption and high output welding work.

6.The 'AT’automatic welding mode helps you finish the welding workefficiently.

7.Compatible with 7 series mobile welding pen.

8.The compact aluminum alloy shell can effectively dissipate heat.

9.With 0~199V voltage detection function,detect the voltage value of battery quickly.

Applications:

1. Production of small battery packs for mobile electronic devices.

2. Welding of lithium polymer batterycell phone batteryand protective circuit board.

3. Spot welding leaders to different metal projects,such asiron,stainless steel, brass nickel,molybdenum and titanium.

Model    GLITTER 801A+

Voltage Output 5.8V(DC)

Voltage InputAC 100-240V 50/60HZ

Peak Welding Energy58J

Pulse Power 11.6KW(Peak)

Trigger ModeAT

AT mode--automatic welding(no foot pedal control, suitable for welding

a large number of batteries for a long time).

Energy Grade0-99T

Welding ModeSeparated-style spot weldingpen

Pluse Time0~5mS

Preload Delay200~500mS

Adapter Parameter15V1.3A(Peak)

First Charging Time30~40(mins)

Measuring voltage:0~199V

70A Separated Spot Welding Pen Welding Thickness:

1) Pure nickel welding to 18650 battery:0.05~0.15mm

2) Nickel-plated welding to 18650 battery:0.05~0.2mm

3) With fixed seat butt welding:0.3mm
