HUALONG Machinery Italian CNC 4+1 Axis Marble Saw Granite Cutting Machine CNC Granite Bridge Saw Stone Slab Cutting Machine
US $32,000.00-34,000.00 / set
1 set(s)Minimum order
Type:
Stone Cutting Machine
Use:
stone cutting milling engraving
Production Capacity:
high
Place of Origin:
Fujian, China
Brand Name:
Hualong
Voltage:
220/380V
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$129,000.00-139,000.00
1 set (MOQ)
$21,500.00-24,500.00
1 set (MOQ)
$38,000.00-41,000.00
1 set (MOQ)
$85,000.00-115,000.00
1 set (MOQ)
$90,000.00-120,000.00
1 set (MOQ)
Contact us
Quik Detail
| Type | Stone Cutting Machine |
|---|---|
| Use | stone cutting milling engraving |
| Production Capacity | high |
| Place of Origin | Fujian, China |
| Brand Name | Hualong |
| Voltage | 220/380V |
| Power | 32.5 kw |
| Dimension(L*W*H) | 6200x3380x3000mm |
| Weight | 6000 kg |
| Warranty | 2 years |
| Key Selling Points | Multifunctional |
| Cutting thickness (max) | 200mm |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Core Components | motor, Bearing, Gear, servo motor, servo driver, touch screen, computer, worm reducer, gearbox, gear, linear guide, helical gear rack, bearings, hydraulic motor, hydraulic pump |
| Control system | Italian CNC |
| Max. diameter of blade | 650mm |
| Cutting head rotation | 0-360° |
| Blade tilt | 0-45° |
| Worktable tilt | 0-85° |
| Guide rail | Hiwin linear guide |
| Nesting | Manual or automatic |
| Lubrication | Automatic |
| Structure | monoblock |
| Showroom Location | None |
| Condition | New |
| Warranty of core components | 2 years |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Construction works , Stone Processing |
| Marketing Type | New Product 2024 |
Product Detail
CNC Stone Bridge Saw
HLNC-650+ is a numerically controlled fully interpolated 4 axis bridge saw with tilting head and tilting table to carry out any type of machining, cutting (straight or curved, vertical or inclined), 2D profiling, milling and 2D engraving operations, on slabs and stone blocks.
This machine can work one shot or step by step to shape marble, granite, composite stone and ceramic pieces.
This machine can be very customized, it is the perfect solution for shops with high productivity of:
* kitchen countertops
* vanity tops
* wall panels for interiors and exteriors
* flooring
* doorsteps, staircases and thresholds
* street furniture
* bas-reliefs
Main Features:
1) 4 axis lnterpolation control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Blade can rotate 0°-360° and tilt 45° for any direction's cutting.
4) Working platform can tilt 85 degrees, easy for slabs loading.
5) Manual cuts available for simple machining.
6) Nesting manual / automatic to optimize slab surface usage
7) Optional - Engraving module with electro-spindle exellent for milling & 2D carving.
8) Optional - Vacumm manipulator for workpieces handling.
9) Optional - Photo slab for nesting and avoiding defects.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
11) Optional - Slab thickness probe
12) Optional - Tool measuring system
Technical Data | ||||||
Modle No. | HLNC-400+ | HLNC-650+ | ||||
Diameter of saw blade | mm | ø400 | ø650 | |||
Blade mitering | ° | 0-45 | 0-45 | |||
Dimension of working platform | mm | 3500x2100 | 3500x2100 | |||
Max. cutting length | mm | 3500 | 3500 | |||
Max. cutting thickness | mm | 70 | 200 | |||
Max. lifting stroke | mm | 250 | 300 | |||
Max. lifting weight by sunction cups | kg | 100 x 2 | 100 | |||
Power of main motor | kw | 15 | 18.8 | |||
Power of electric spindle motor | kw | 5.5 | 5.5 | |||
Power of cutter frame reciproctating motor | kw | 2 | 2 | |||
Power of crossbeam shifting motor | kw | 1.1 | 1.1 | |||
Power of hydraulic station motor | kw | 2.2 | 2.2 | |||
Power of lifting motor | kw | 0.85 | 0.85 | |||
Gross power | kw | 28.7 | 32.5 | |||
Water consumption | m3/h | 2 | 2 | |||
Gross weight | kg | 4500 | 6000 | |||
Dimensions (L x W x H) | mm | 5800x3380x2770 | 6200x3380x3000 | |||

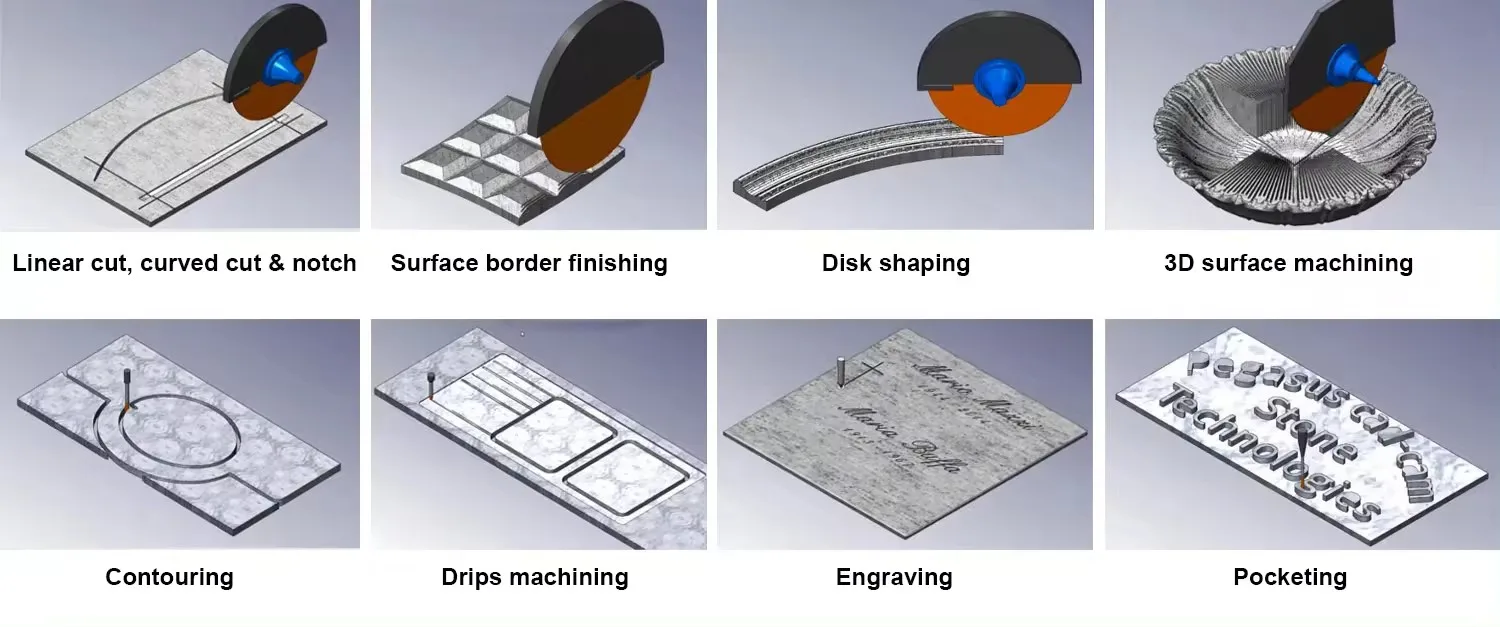

Application fields:
Cnc machines can be customized according to the Customer’s needs about production and space available into his factory.
Sole Engraving Module (Optional)
Type: electric spindle
Power: 5.5 kw
Power: 5.5 kw
Rotating speed: 0-24000 rpm
Comparing with maniacal spindle, the rotating speed of this electric spindle is super higher. It makes engraving fine and faster,
or makes curve cutting, corner cutting by milling much faster too.
Control system -- CNC
Brand: Esa
Original: Italy
Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job
easy, perfect and high efficient.
easy, perfect and high efficient.
Digital Servomotor
Brand: ESA
Original: Italy
A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs,
creates a reliable controlling power for X, Y, Z and C axises
Original: Italy
A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs,
creates a reliable controlling power for X, Y, Z and C axises
Software - Pegasus CAD/CAM
Brand: PegasusOriginal: Italy
* Easy to Use -- Very user-friendly, it does not require any advanced computer skill.
* Reliable -- Frequent updates and high-quality support.
* Powerful -- Different modules and tools for plenty of technologies and machinings.
* Easy to Use -- Very user-friendly, it does not require any advanced computer skill.
* Reliable -- Frequent updates and high-quality support.
* Powerful -- Different modules and tools for plenty of technologies and machinings.
Electro-spindles
of high quality controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 6000 rpm, so
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
Vacuum Manipulator
Spindle vacuum cups for handling cut pieces, making it possilble to minimise material wastage and streamline cutting operation.
Double Manipulators are optional.
Slab Thickness Detector (optional)
Origin: China
System to automatically detect the thickness of the slab.
System to automatically detect the thickness of the slab.
Blade Presetting Unit (optional)
Automatically measuring blade diameter and diamond tool
Electric Cabinet
Branded electric companets such ESA, Schneider, Sanch are adopted to ensure stable performance.
Slab Image Capture(Optional)
The application allows to acquire and process the slab photo, by correcting the lens distortion and rectifying it. Through the
acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to
be machined; it is also possible to qualify the slab edge geometrically.
acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to
be machined; it is also possible to qualify the slab edge geometrically.
Rubber Platform (Optional)
Waterproof and no deformation
Safeguard Door (Optional)
Safe light curtain is recommended for preventing work-related injuries.
Galvanization (Optional)
Galvanizing can prevent the immersion of air, water and other corrosive media to steel, improve the corrosion resistance of the
machine, enhance mechanical strength, and extend the service life.
machine, enhance mechanical strength, and extend the service life.
Linear Guide
Brand: Hiwin Original: Taiwan, China
Famous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.
