High Low Voltage 1-35kv Cold Shrinkable Straight Tube Insulation Connection Sleeve 25-400mm Cold Shrinkable Straight Tubing
US $0.85-1.00 / piece
200 piece(s)Minimum order
Place of Origin:
Jiangsu, China
Brand Name:
Volsun
Model Number:
V9540
Type:
Insulation Sleeving
Material:
Silicone
Application:
High Voltage
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$0.28-0.50
1000 pieces (MOQ)
$2.10
100 meters (MOQ)
$0.80-3.20
500 pieces (MOQ)
$0.45-0.50
100 meters (MOQ) Contact us
Quik Detail
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Volsun |
| Model Number | V9540 |
| Type | Insulation Sleeving |
| Material | Silicone |
| Application | High Voltage |
| Rated Voltage | 1kV |
| Tensile Strength | Excellent |
| Color | Customzied |
| Size | Customized Size |
| Feature | Excellent Electrical Insulation |
| Certification | ROHS |
| Sample | Sample Avaliable |
| Standard | NEMA |
| Density | 1.45-1.5g/cm3 |
| MOQ | 100pcs |
| Shape | Custom Shape |
| Customized | Accpet |
Product Detail
Product Description

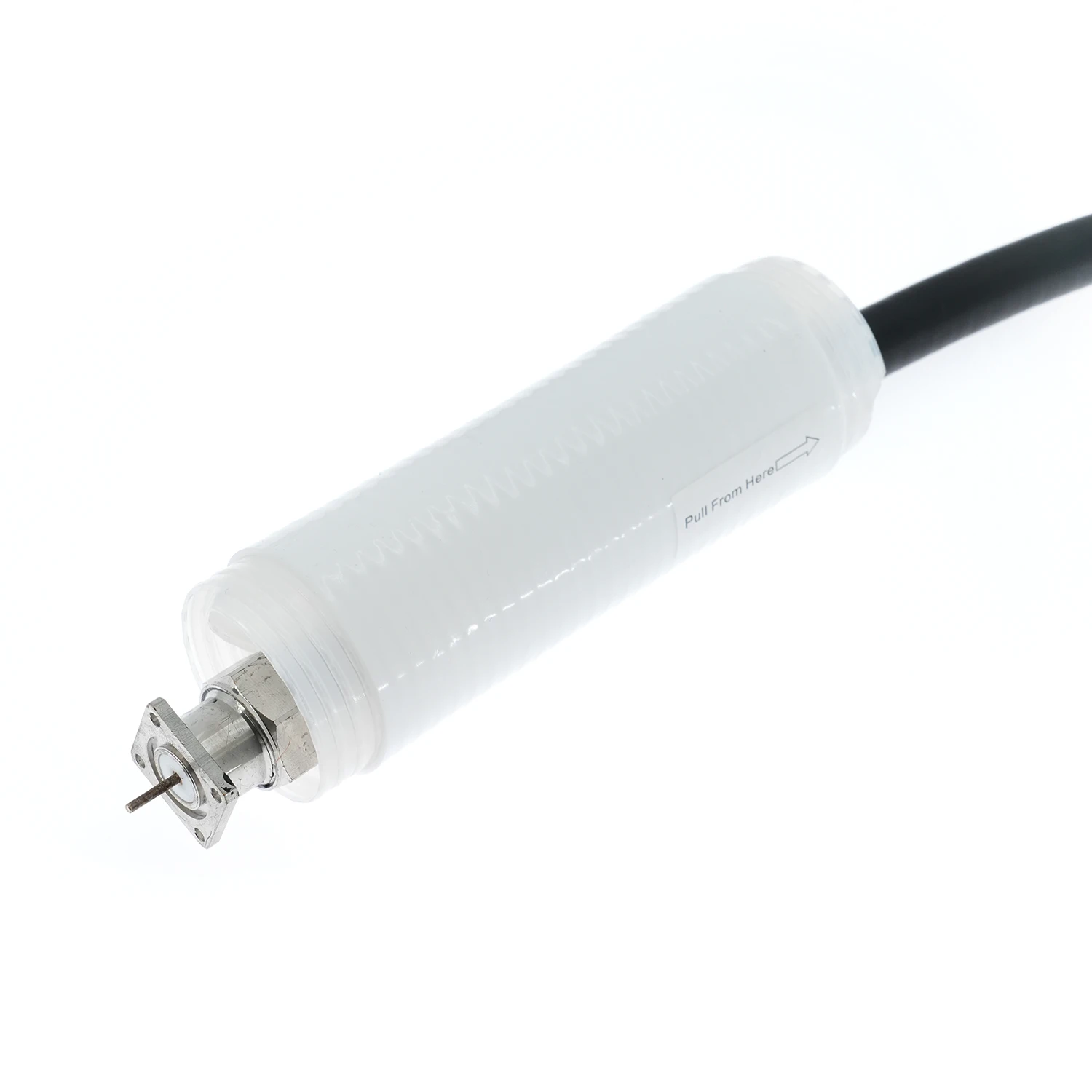

cable accessories RFS cable cold shrink tube IP68
RUBLS-SILIC Silicone Rubber Cold shrink tube Series Cold Shrink Lug and Connector Insulators is made of special purpose silicone rubber with a high shrink ratio and excellent physical and mechanical properties like slab and prick resistance. reliably seals electrical connections of electric communications and cable televisions against water and moisture and effectively insulates wire and cable connections or joints and other electrical connections.
Features:
1.Operating temperature:-60°C~200°C
2.Waterproof and Sealing Class: IP68
3.Shrink Ratio :5:1
4.Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance
5.Simple installation
6.Standard color:Black,white,grey,etc
2.Waterproof and Sealing Class: IP68
3.Shrink Ratio :5:1
4.Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance
5.Simple installation
6.Standard color:Black,white,grey,etc
Technical Performance
Properties | Typical Data | Test Method |
Shore Hardness | 40±5A | GB/T 531-2008 |
Tensile Strength | ≥9.0MPa | GB/T 528-2009 |
100% Stress at Definite Elongation | ≤1.2MPa | GB/T 528-2009 |
200% Stress at Definite Elongation | ≤2.0MPa | GB/T 528-2009 |
Elongation at Break | ＞800% | GB/T 528-2009 |
Tear Strength | ≥35kN/m | GB/T 529-2008 |
Dimensions
Size | Inner Diameter (mm) | Min Cable Outer Diameter (mm) | Max Cable Outer Diameter (mm) | Full Recovered Length (mm) |
VS15-2 | 15 | 5 | 13 | 50 |
VS28-6 | 28 | 7.0 | 25.0 | 150 |
VS40-5.5 | 40 | 11.0 | 33.0 | 140 |
VS45-7 | 45 | 13.5 | 39.0 | 178 |
VS60-9 | 60 | 20.5 | 51.0 | 230 |
VS70-8 | 70 | 25.0 | 63.0 | 203 |
Size is available to customize
Company Show
Suzhou Volsun Electronics Technology Co.,Ltd. was founded in 2006. We keep focusing on the R&D, production and sales in
insulation, sealing & protection solutions for over 18 years.
Quality is our culture. Volsun has a modern quality management system, which has passed a series of quality system certification
such as IATF16949, ISO9001 etc.
Up to now, Volsun cooperated with customers from 88 countries, we offer suitable sealing, waterproof solutions for some well-know
enterprises in communication,Automobile, Power industry etc.
insulation, sealing & protection solutions for over 18 years.
Quality is our culture. Volsun has a modern quality management system, which has passed a series of quality system certification
such as IATF16949, ISO9001 etc.
Up to now, Volsun cooperated with customers from 88 countries, we offer suitable sealing, waterproof solutions for some well-know
enterprises in communication,Automobile, Power industry etc.
Certifications
Abroad Exhibition
Las Vagas AAPEX
Moscow Expo
Hannover Messe
Packing & Delivery
Trade terms | FOB, EXW, CIF, DDU, DDP, CFR |
Payment terms | T/T, L/C, Negotiable |
Supply capability | 1,000,000 pieces per month |
Lead time | usually 2-3 working days |
Shipment | Express, Air, Sea |
Port | Shanghai, Ningbo, Shenzhen |
Sample availability | Yes |
Sample time | usually 1-2 days |
Packaging | Normal: Plastic bag & Carton & Pallet Special: Customized packing |
FAQ
Q 1. How long is the payment term?
A: We accept T/T 50% deposit and 50% balance against B/L or L/C copy at sight, also accept Western Union, VISA and Paypal.
Q 2. What is the normal lead time for product orders?
A: The average lead time for prototype/first piece is 7~10 days, if tooling is involved, the lead time for production tooling is 10 days, and the average production time after sample approval is 2-3 weeks.
Q 3. What is your standard packaging?
A: All goods will be packed in cartons and loaded on pallets. Special packing methods are acceptable when needed.
Q 4. Can you tell us the monthly production capacity of your products?
A: It depends on the model, we produce more than 1500 tons of rubber materials per month.
Q 5. What kind of certificates do you have?
A1: We have ISO9001:2015 ,IATF16949:2016, ISO14001:2015 ,ISO45001:2018 certified
A2: We have various rubber compounds approved by UL, ROHS and REACH.
Q6: How to check the quality of bulk order?
A1: We provide pre-production samples to all customers before mass production if needed.
A3: We accept third-party inspection, such as SGS, TUV, INTERTEK, BV, etc.
Q 9: Can you provide customized service?
A: Yes, we accept customization and can produce products in different sizes, packaging, colors according to requirements.
A: We accept T/T 50% deposit and 50% balance against B/L or L/C copy at sight, also accept Western Union, VISA and Paypal.
Q 2. What is the normal lead time for product orders?
A: The average lead time for prototype/first piece is 7~10 days, if tooling is involved, the lead time for production tooling is 10 days, and the average production time after sample approval is 2-3 weeks.
Q 3. What is your standard packaging?
A: All goods will be packed in cartons and loaded on pallets. Special packing methods are acceptable when needed.
Q 4. Can you tell us the monthly production capacity of your products?
A: It depends on the model, we produce more than 1500 tons of rubber materials per month.
Q 5. What kind of certificates do you have?
A1: We have ISO9001:2015 ,IATF16949:2016, ISO14001:2015 ,ISO45001:2018 certified
A2: We have various rubber compounds approved by UL, ROHS and REACH.
Q6: How to check the quality of bulk order?
A1: We provide pre-production samples to all customers before mass production if needed.
A3: We accept third-party inspection, such as SGS, TUV, INTERTEK, BV, etc.
Q 9: Can you provide customized service?
A: Yes, we accept customization and can produce products in different sizes, packaging, colors according to requirements.
