High Quality Input 9-36v 12v 24v 12/24v Step Down 12vdc 60w Voltage Regulator 12v/24v to 12V 5a Isolated Dc Dc Converter
Other recommendations for your business
Contact us
Quik Detail
| Network | None |
|---|---|
| Place of Origin | Guangdong, China |
| Brand Name | WEMAXPOWER |
| Model Number | WMX-DSD9-36S1205-I |
| Type | DC/DC Converters, Isolated |
| Output Type | Single Phase |
| Output Current | 5A |
| Output Frequency | / |
| Size | 58*40*22mm |
| Weight | 90G |
| Product name | 9-36v to 12v 5a isolated converter |
| Application | Motor/Monitoring/Home Appliance/Car,etc. |
| Warranty | 12 months |
| Input Voltage | 9-36Vdc |
| Output Voltage | 12Vdc |
| Conversion Efficiency | 94% |
| Waterproof | IP68 |
| Cooling way | Free air cooling |
| Function | Step-down Converter |
| Customized support | YES |
| Certificate | CE & RoHS |
Product Detail
High quality CE RoHS 96w car led step down voltage transformer 60v to 12v 8a dc dc converter

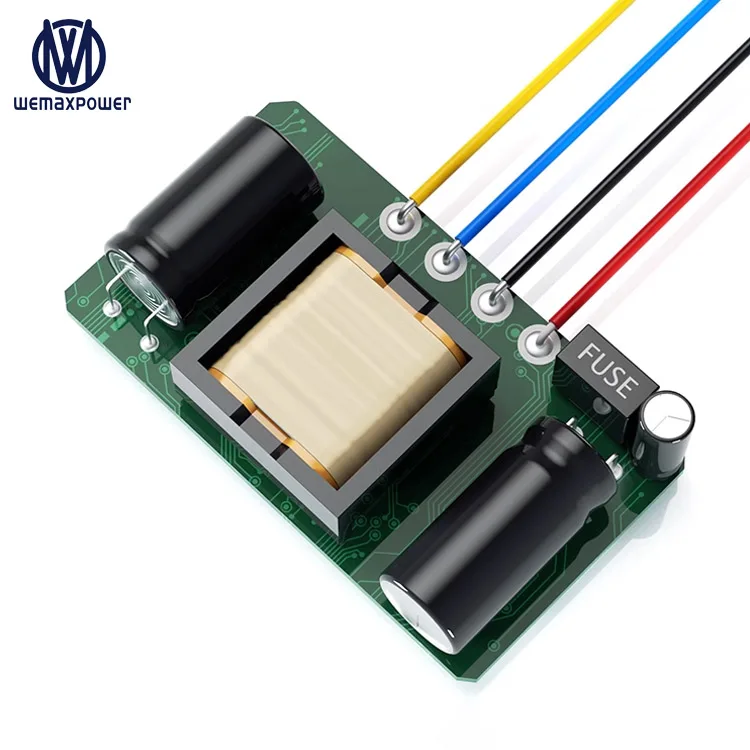

9-36v to 12v 5a isolated converter
1. Light weight, small size, easy install
2. Supports wide range voltage input
3. Imported industrial grade power chips
4. Synchronous rectification technology with high conversion efficiency
5. Sufficient power
6. Isolation transformer, isolation voltage: 1500VDC
7. Isolate power supply, isolate input and output from each other, refuse to burn out expensive load equipment, safe and reliable
8. ABS tough shell, flame retardant and explosion-proof, corrosion resistant, antioxidant, good insulation, fast heat dissipation
9. Waterproof (IP67 waterproof grade), shockproof, moisture-proof, dustproof
10. Adapt to ambient temperature -20~85 ° C
11. Multiple protection functions. Over current, over voltage, over temperature protection, short circuit protection, strong anti-interference ability
12. Widely used: various instrument fields such as intelligent robots, communication base stations, industrial control, power supply systems, onboard equipment, computer peripherals, digital products, etc
|
|
Product Name |
9-36v to 12v 5a isolated converter |
|
Model NO. |
WMX-DSD9-36S1205 |
|
|
Input Voltage |
12/24Vdc (9~36Vdc) |
|
|
Output Voltage |
12Vdc |
|
|
Output Current |
5A |
|
|
Output Power |
60W |
|
|
Input wire length |
13~15cm |
|
|
Output wire length |
13~15cm |
|
|
Working Temperature |
-40°c ~ +80°c |
|
|
Waterproof |
IP67 |
|
|
Converter type |
Isolated |
|
|
Shell material |
Plastic |
|
|
Dimension & N.W |
58*40*22mm, N.W: 90g |
|
|
Protections |
Over-load, Over-current, Over-temperature, Over-voltage |
|
|
1) If you are not familiar with how to choose the appropriate converter module, you should know the power of load equipment (based on equipment label and parameter labeling) before purchasing. 2) If you need to work for a long time, you should choose the power module with higher power. The actual power of load equipment is 30%~80% of the rated power of the module. 3) Full load and overload have a great impact on the stability, temperature and service life of the module. At any time, it may cause irreparable damage. |
||
Q: Why choose us?
A: Guangzhou Wemaxpower technology Co., Ltd is the dc dc converters manufacturer for more than 8 years.The performance of the converters are very stable.And the product technology is updated every year. We are the direct manufacturer, supply OEM/ODM service.
Q: Are there any requirements for product load?
A: Yes, the dc dc converters are with fixed voltage output, so it can not be used for charging the batteries directly. If you have any requirement for charging the batteries, you may choose the dc dc chargers.
Q: Why are other products cheaper than yours?
A: Because other suppliers use cheap components, the products are not enough power output. Our products are uesed imported components, they can support long-term full load work.
Q: What about your after sales-service?
A: 1.Guarantee time: 1 year
2.Return policy: we can exchange goods if there is any quality problem.
Q: Our Payment & Logistics
A: 1.Payment terms L/C,T/T,Western Union,MoneyGram,Paypal.etc.
2.Shipping terms: By DHL, UPS, FedEX, TNT, EMS,Sea.etc
Q: What can you get from us?
A: 1.Excellent products (unique design, strict quality control )
2.Great service(OEM,ODM, after-sales services, fast delivery)
3.Professional business consultation.
Q: What is the MOQ of the 9-36v to 12v 5a isolated converter?
A: Low MOQ, 5 units for sample testing is available.
