High Speed 4 6 8 Colors Plastic Film Full Servo Flexo Printers With Sleeve FFS Bag Gearless CI Flexo Printing Machine
US $300,000.00-400,000.00 / set
1 set(s)Minimum order
Type:
Flexographic Printer
condition:
New
plate type:
Letterpress
place of origin:
zhejiang
brand name:
changhong
usage:
Paper Printer, Label Printer, Plastic Bag, Non Woven Bag, paper bag
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$195,000.00-196,000.00
1 set (MOQ)
$40,000.00-50,000.00
1 set (MOQ)
$577,000.00-578,000.00
1 set (MOQ)
$575,000.00-576,000.00
1 set (MOQ)
$40,000.00-50,000.00
1 set (MOQ)
$115,000.00-116,000.00
1 set (MOQ)
$195,000.00-196,000.00
1 set (MOQ) Contact us
Quik Detail
| Type | Flexographic Printer |
|---|---|
| condition | New |
| plate type | Letterpress |
| place of origin | zhejiang |
| brand name | changhong |
| usage | Paper Printer, Label Printer, Plastic Bag, Non Woven Bag, paper bag |
| automatic grade | Automatic |
| color & page | 4 Colors |
| voltage | 380V |
| weight | 2000 |
| print speed | 500m/min |
| warranty | 1 Year |
| structure | CI |
| After-sales Service Provided | Video Technical Support |
| Printing material | Label.Non-woven Fabric. Paper. Film.OPP.PE.BOPP.PE.NY.PET.CPP |
| Product name | CI Flexo Printing Machine |
| Certification | ISO9001 CE |
| Printing type | Flexo Press |
| Printing Width | 600mm 800mm 1000mm |
| Printing colors | 1-10 Unit |
| Advantage | High Speed Running |
| Printing color | 4/6/8 Colors |
| Machine name | Automatic Flexographic Printing Machine |
Product Detail
提示信息
Subtitle/CC
Speed
Quality
Audio Track
Speed
Subtitle/CC
Audio Track
Quality

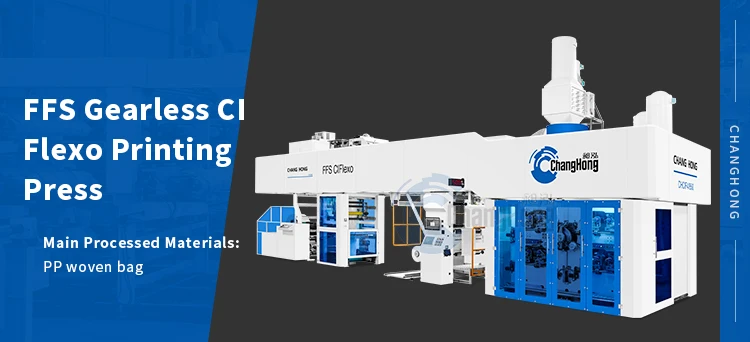

Flexographic printing machines for PP woven bags are specialized machines that are designed specifically to print high-quality graphics and images on the surface of PP woven bags. The machine utilizes a flexographic printing method that involves the use of flexible printing plates made of rubber or photopolymer. These plates can be easily mounted on a printing cylinder that transfers the ink onto the surface of the PP woven bag.
TECHNICAL SPECIFICATIONS | ||||||||
Model | CHCI8-600F | CHCI8-800F | CHCI8-1000F | CHCI8-1200F | ||||
Max. Web Width | 650mm | 850mm | 1050mm | 1250mm | ||||
Max. Printing Width | 550mm | 750mm | 950mm | 1150mm | ||||
Max. Machine Speed | 500m/min | |||||||
Printing Speed | 450m/min | |||||||
Max. Unwind/Rewind Dia. | φ800mm (Special size can be customized) | |||||||
Drive Type | Gearless full servo drive | |||||||
Plate thickness | Photopolymer plate 1.7mm or 1.14mm (or to be specified) | |||||||
Ink | Water base ink or solvent ink | |||||||
Printing length (repeat) | 300mm-800mm (Special size can be customized) | |||||||
Range Of Substrates | LDPE; LLDPE; HDPE; BOPP, CPP, PET; Nylon, PAPER, NONWOVEN | |||||||
Electrical supply | Voltage 380V. 50 HZ.3PH or to be specified | |||||||
1. High speed printing: The flexographic printing machine for PP woven bag is designed to achieve high-speed printing that can accommodate a large volume of printing requirements.
2. Multiple color printing: This machine can print up to 8 colors thereby, making it possible to create more elaborate and colorful designs on PP woven bags.
3. Precise printing: The machine ensures precise registration of printing, thereby improving the quality and clarity of the printed images.
4. Easy operation: Flexographic printing machine is user-friendly and can be easily operated by anyone. It is easy to set up and use, thus saving time and reducing wastage.
5. Durability: The machine is built with durable materials to ensure longevity and reliability. It can handle heavy production cycles without breaking down.
6.Environmentally friendly: The flexographic printing machine for PP woven bag uses eco-friendly inks that are less harmful to the environment, making it a sustainable solution for printing on PP woven bags.
ChangHong Printing Machinery Co.， Ltd is a professional printing machinery manufacturing company which integrates scientific research, manufacture, distribution, and service. We are the leading manufacturer for width flexographic printing machines.
Now our main products include CI flexo press, economical CI flexo press, stack flexo press, and so on. Our products are large-scale sold throughout the country and exported to South-east Asia,Middle-east, Africa, Europe, etc.
Q1: What is flexographic printing?
A1: Flexographic printing is a type of printing process that uses a flexible printing plate to transfer ink onto a substrate. It is a popular printing technique for packaging materials, including PP woven bags.
Q2: What is a PP woven bag?
A2: PP woven bags, also known as polypropylene woven bags, are a type of packaging bag made from woven polypropylene fabric. They are commonly used for storing and transporting a wide range of products, including agricultural products, food, and chemicals.
Q3: What is a flexographic printing machine for PP woven bags?
A3: A flexographic printing machine for PP woven bags is a specialized printing machine that is designed to print high-quality graphics and texts onto PP woven bags. These machines use a flexible printing plate to apply ink to the bag, and can print up to 8 colors at a time.
Q4: What kind of ink is used for flexographic printing on PP woven bags?
A4: The ink used for flexographic printing on PP woven bags is typically a water-based or solvent-based ink that is specially formulated for use on PP woven fabric.
