Hot Sale Forced Air Circulation Drying Oven
Other recommendations for your business
Contact us
Quik Detail
| type | Drying Oven |
|---|---|
| application | Chemicals Processing, Food Processing |
| place of origin | Guangdong, China |
| brand name | FBL |
| voltage | 220V 50HZ |
| power(w) | 850W |
| dimension(l*w*h) | 750*700*700 mm |
| key selling points | Competitive Price |
| warranty | One Year |
| weight (kg) | 80 |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| core components | motor |
| material | SUS304, SUS304L, SUS316, SUS316L |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Product name | Hot Sale Forced Air Circulation Drying Oven |
| Shell Material | Spray-paint Anti-corrosion |
| Liner Material | 304 Stainless Steel |
| Temp. Range | RT+10~250/300 °C |
| Temp. Stability | ±1.0°C |
| Working Temp. | +5~40°C |
| Chamber Capacity (L) | 40 |
| Inner Dimension (W*D*H,mm) | 340*310*340 |
| Weight | 53KG |
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Showroom Location | United States, India |
| Marketing Type | Hot Product 2019 |
| Warranty of core components | 1 Year |
Product Detail

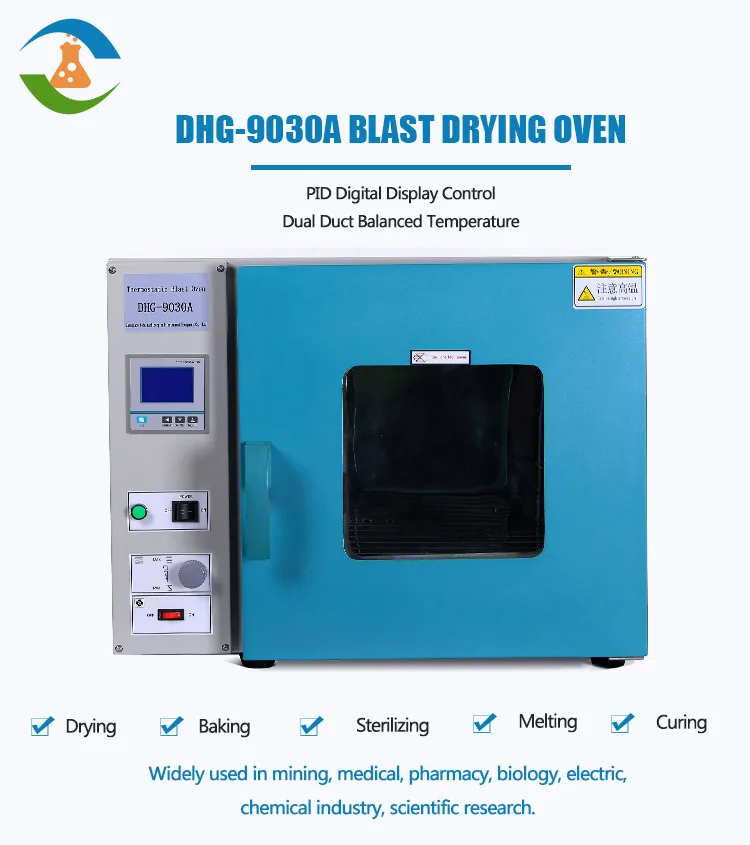

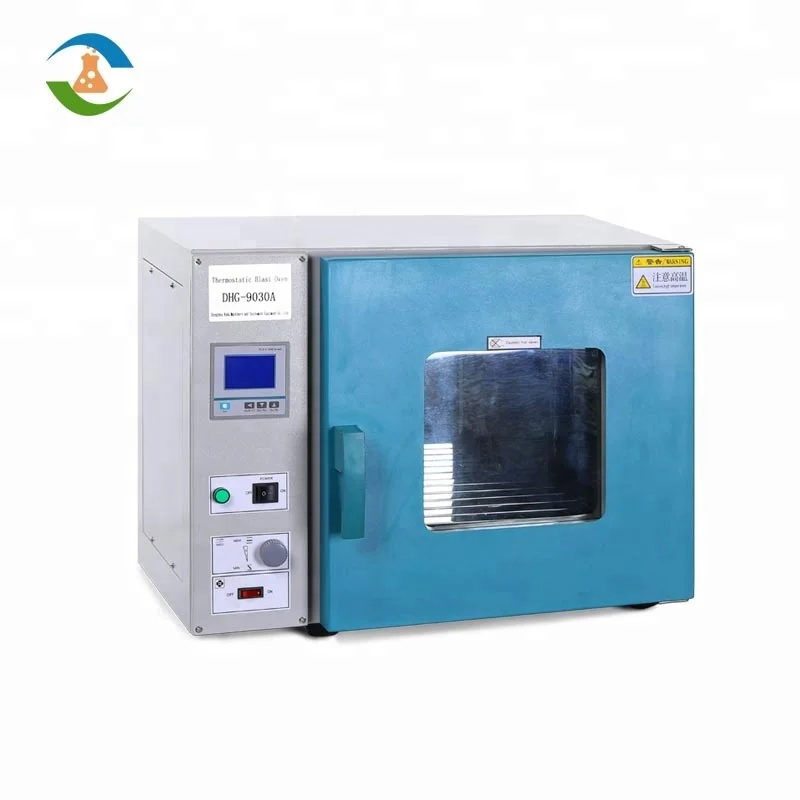

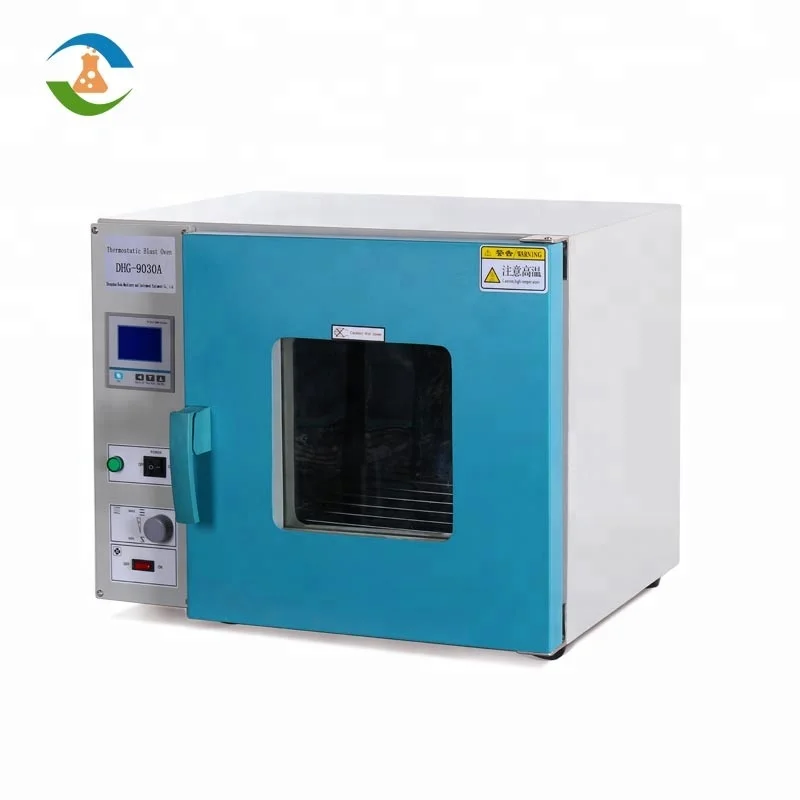

Hot Sale Forced Air Circulation Drying Oven
The Forced Air Circulation Drying Oven adopts hot air circulation system. hot air convection oven is composed of blower fan and proper air channels, which is capable of continous operation under high temperature, and improved the uniformity of the temperature inside the working chamber. Now the electric blast drying oven is widely applied for drying,baking wax-melting and sterlization for industrail in mining enterprises,laboratories,research units and so on.
| Model | DHG-9030A | DHG-9070A | DHG-9140A | DHG-9240A | DHG-9420A | DHG-9620A | DHG-9920A |
| Power Supply | 220V/50HZ | ||||||
| Shell Material | Spray-paint Anti-corrosion | ||||||
| Liner Material | 304 Stainless Steel | ||||||
| Temp. Range | RT+10~250°C | RT+10~300°C | |||||
| Temp. Stability | ±1.0°C | ||||||
| Temp. Analysis | 0.1°C | ||||||
| Working Temp. | +5~40°C | ||||||
| Input Power (W) | 850 | 1100 | 1550 | 2050 | 3500 | 4000 | 6000 |
| Chamber Capacity (L) | 40 | 72 | 151 | 216 | 393 | 672 | 960 |
| Inner Dimension (W*D*H,mm) | 340*340*340 | 400*400*450 | 550*500*550 | 600*600*600 | 750*750*700 | 840*600*1335 | 1000*600*1600 |
| Overall Dimension (W*D*H,mm) | 630*600*500 | 680*690*630 | 830*800*720 | 900*870*840 | 1050*950*920 | 980*800*1710 | 1140*800*2150 |
| Shelves (Pcs) | 1 | 2 | 3 | 4 | 5 | ||
| Time Range | 1~9999 min | ||||||
| Optional Configuration | Explosion-proof | ||||||
Features of air oven:

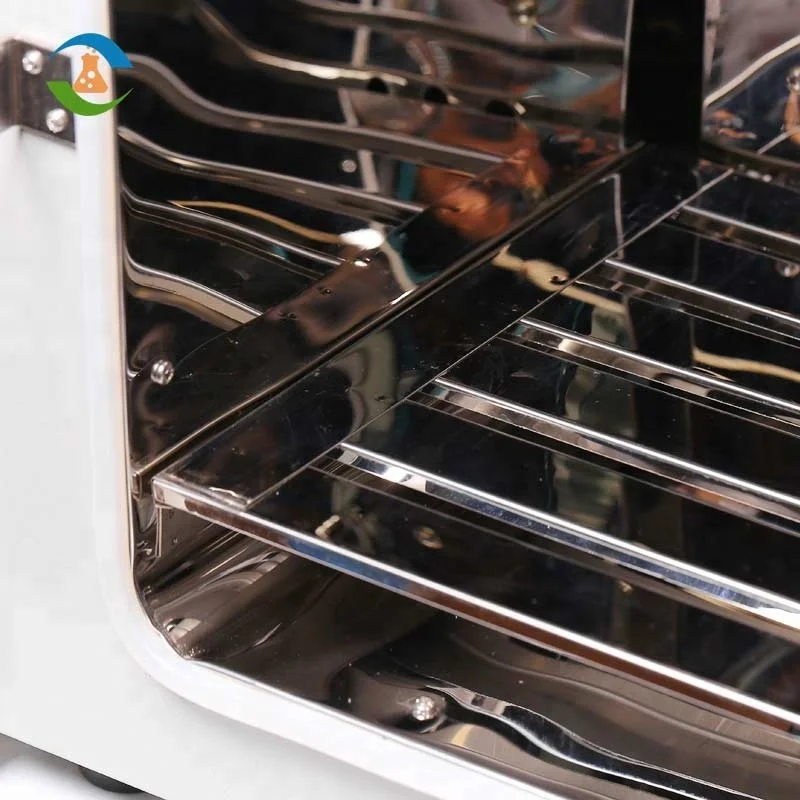

1. With mirror surface in stainless steel, baffle removable, easy to clean
2. It adopts temperature control protection, digital display, microcomputer PID temperature controller with timer function to ensure precise and reliable temperature control.
3. New-style Silicon gasket ensure long-life under high temperature, and easy to replace.
4. Can adjust flow of blast & exhaust in control panel.
5. Independent alarm system for temperature-limiting ensures experiments run safely and no accident would happen.
******Welcome to Contact Us for More Details and Latest Price******
Packaging
-Export plywood case or carton.
-Both neutral and customized packaging are available.
Shipping
-Usually we ship the goods by International Express such as DHL, TNT, EMS, FedEX and UPS for small volume goods, and ship the big volume goods by air or ocean.
1. What's the minimum order quantity?
One set at present.
2. When can the goods be delivered?
2-5 working days after payment for normal models and 5-10 working days for customized model.
3. Can you accept OEM or ODM?
Yes, we can.
4. How to choose the suitable equipment?
Tell us your requirements, our professional sales will introduce you the most suitable model.
