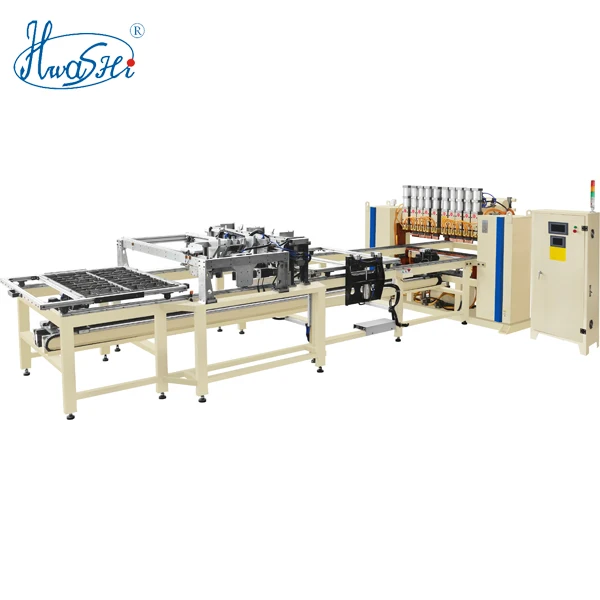

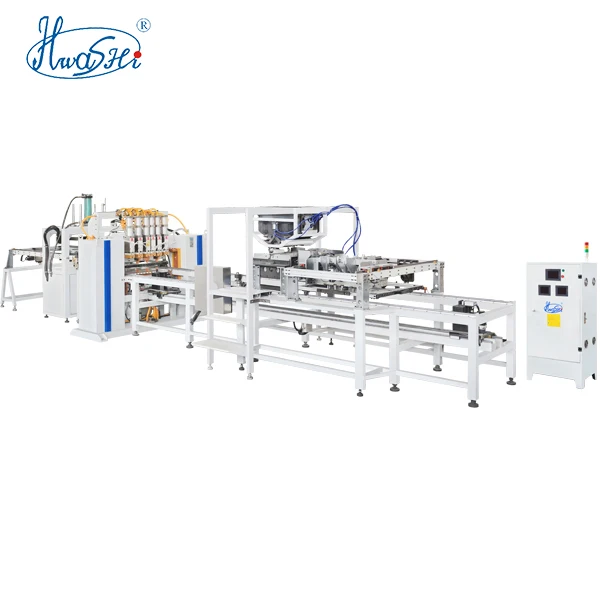

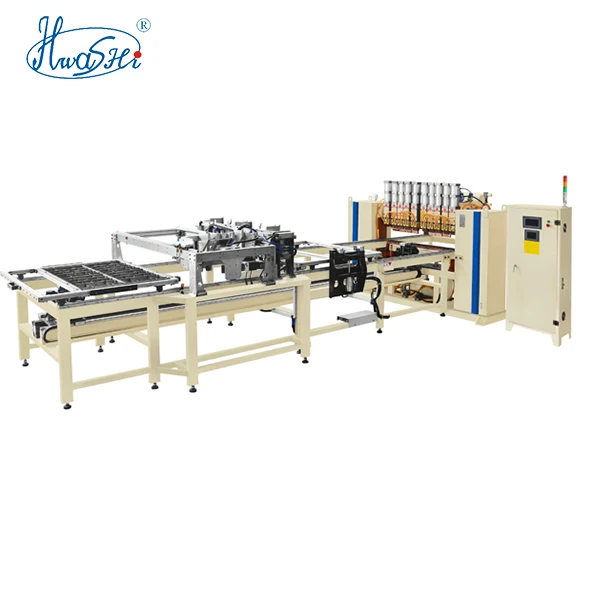

Hwashi Best Price Welded Wire Mesh Machine , Multi-point Wire Rack,Wire Shelf Welding Machine.We Can Supply the Production Line
US $11,209.90 / set
1 set(s)Minimum order
machine type:
Wire Mesh Welding Machine
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump
wire diameter (mm):
2 - 10 mm
production capacity:
100 pieces/hour
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$8,925.00-10,625.00
1 set (MOQ)
Contact us
Quik Detail
| machine type | Wire Mesh Welding Machine |
|---|---|
| video outgoing-inspection | Provided |
| machinery test report | Provided |
| core components | PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump |
| wire diameter (mm) | 2 - 10 mm |
| production capacity | 100 pieces/hour |
| place of origin | Guangdong, China |
| brand name | Hwashi |
| model number | WL-SQ-150k |
| weight (kg) | 300 |
| power (kw) | 50 |
| key selling points | Automatic |
| warranty | 1 Year |
| Voltage | 380V |
| Rated power | 50KVA*3 |
| Capacitance | 73500uF |
| Welding power source | AC Pulsed Power / MF DC power |
| Electrode Stroke | 100mm |
| Electrode Distance | 490-540mm |
| Effective Welding Lenght | 3000mm |
| Effective Welding Width | 2500mm |
| Color | White |
| Mesh Width | 1000/1300/2000mm |
| Condition | New |
| Marketing Type | Hot Product 2019 |
| Warranty of core components | 1 Year |
| Applicable Industries | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location | None |
Product Detail
Product Description
Product Application
Widely used for each kinds of fence , hardware mesh, goods shelf, cages, wire frame, steel plate stiffener and others multiple spot welding. Continuous welding wire mesh whose width is within 2000mm, length is not restricted.
Hwashi Best Price Welded Wire Mesh Machine , Multi-point Wire Rack,Wire Shelf Welding Machine.We can supply the production line
Refrigerator Wire Shelf Production Line Machine Steel Wire Mesh Spot Welding Machine is H-type wire mesh multi-head automatic welding machine. It adopts ten electrodes and equips with automatic feeding system. The wire will be dropped to the fixture automatically to achieve full automatic loading. After that it will automatically execute the feeding and welding. Its one-way and double-layer feeding device can move forward and back automatically to finish the welding and the welding distance can be set at random .It is suitable for the batch production of wire mesh with multiple-points welding.
The welding manner is one-way double-layer automatic stepping feeding with 10 welding heads. The effective welding width is 1200mm while the effective welding length is 1000mm. This machine is composed of main machine body, welding transformer, pneumatic drive device, upper and lower electrodes, automatic wire filling device, electrical control system, cooling system, and PLC operation control system.
Functions Options
1. Power Supply:Type: Three-phase MF DC power supply system OR two-phase AC power supply system Quantity: One set of power supply system OR two sets of power supply system (double efficiency)
2. Feeder: Double-layer automatic feeder (cycle working, accurate stepping position via servo motor) OR manual feeder
3. Unloading Device: Automatic unloading device OR manual unloading device
4. Automatic Bending device
5. Automatic Straightening and Cutting Machine
We can customize the machine according to your requirement, if you need more detailed information about the above functions, please contact us.
Detailed Description
Multiple spot welders can be furnished in many forms. Their design may vary according to the application to be welded and the rate of production required. Most multiple spot welders are dedicated to a specific application, but some may be capable of welding more than one size of a similar configuration workpiece.
we can customized machine and manufacture for you based on your requirements. Also we will give our suggestions base on our experience.
1.This Gantry Row welding machine is specialized in fast production of wire mesh. It is suitable for the product with more y wire and less x wire
2.The welding power source is three-phase. The welding manner is one-way double-layer automatic stepping feeding with 12 welding heads. (adjustable according to your product)
3.The effective welding width is 1200mm while the effective welding length is 3000mm. (adjustable according to your product)
Intelligent welding control system
Automatic welding by inputting coordinate data of welding position, welding current and other data.
Welding Heads and Fixtures
Processing and design according to the drawings of each wire shelf product. (customized)
Automatic Wire Filling System
You can put the precut straight wires into the hopper, then the wire filling machine will do the wire filling into the fixture automatically. It helps to increase the working efficiency and reduce labor force.
Automatic Double-layer Feeder
When one fixture is under welding process, the wire filling system will load the wires onto the other fixture at the same time. When finish welding, the feeder will automatically exchange the fixture. So the efficiency can be increased.
No. | Item | Data |
1 | Input Voltage | 380V two-phase |
2 | Input Current | 260A |
3 | Output Voltage | AC7.5V |
4 | Max Short Circuit Current | 26000A |
5 | Welding Models | 30 types |
6 | Welding Positions | 5000 point |
7 | Different Welding Current | 8 types |
8 | Welding Effective Width | 1200mm(Can be customized) |
9 | Welding Effective Length | 1000mm (Can be customized) |
10 | Feeder Moving Speed | 100mm/sec－800mm/sec |
11 | Feeder Moving Force | Servo Motor |
12 | Upper Welding Cylinder | 10（￠100x80mm） |
13 | Lower Welding Cylinder | 2（￠125X50mm） |
14 | Fixture Feeder | 2 |
Production line supporting machine
Wire Flattening and Cutting Machine
This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length.
Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.
Wire Frame Bending Machine
This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.
Wire Frame Double T-Butt Machine
This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.
Wire Edge Trimming Machine
After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.
2D Wire Handle Bending Machine
This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.
Application and samples
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out withthe suitable technical proposal based on your samples or drawings.
Factory & Certificate
HWASHI 22 years+ experience welding solutions expert
Guangdong Hwashi Technology Inc. which was established in 2001, is located in Huizhou, Guangdong province in China. We are the high-tech enterprise which is specialized in developing, manufacturing, and selling of resistance welding machine, automatic welding machine and industrial robot station. We have total two manufacturing plants covering an area about 60000 square meters.There are about 200 staffs in Hwashi, and among which there are more than 20 mechanical and electrical engineers. Most of our engineers got more than 10 years experience in welding industry. Until now, we got more than 70 patents regarding the welding machine projects. Our machines have been exported to more than 70 counrties in the world. And we have local distributor in Russia, Turkey, Romania, Saudi Arabia, Malaysia, Indonesia, India, and USA, etc. who will provide you professional pre-sales and after-sales service in local.
Certifications
We have passed the international certifications such as CE certification, ISO 9001 quality management system certification, Alibaba enterprise certification and design patents.
After-sales service & Customer visiting
1.spot welding machine 1 years warranty except consumable parts
2.Plenty of technical support online is available
3.Quick Back-up Parts Available&Technical Assistance
4."Training Video","Instruction Book",and"Operation Manual"will be offered
Packing & Delivery
Acceptable Delivery Terms
EXW, FOB, C&F, CIF, DDU, DDP
Quality Control
Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing, packaging and shipping to ensure the performance and quality of welding products.
Professional Package
1. Whole film packaging machine;
2. Anti-collision package edge;
3. Wooden box and pallets with iron binding belt.
Service Team& feedback
Professional Team
Over the years, Hwashi has cultivated a large number of talented, dedicated and innovative Hwashi people. We have a professional team of experts with rich experience in electrical engineering, mechanical design and welding technology.
Since its establishment 22 years ago, hwashi technology has traveled to all corners of the world, participated in more than 100 exhibitions and served more than 8,000 customers
