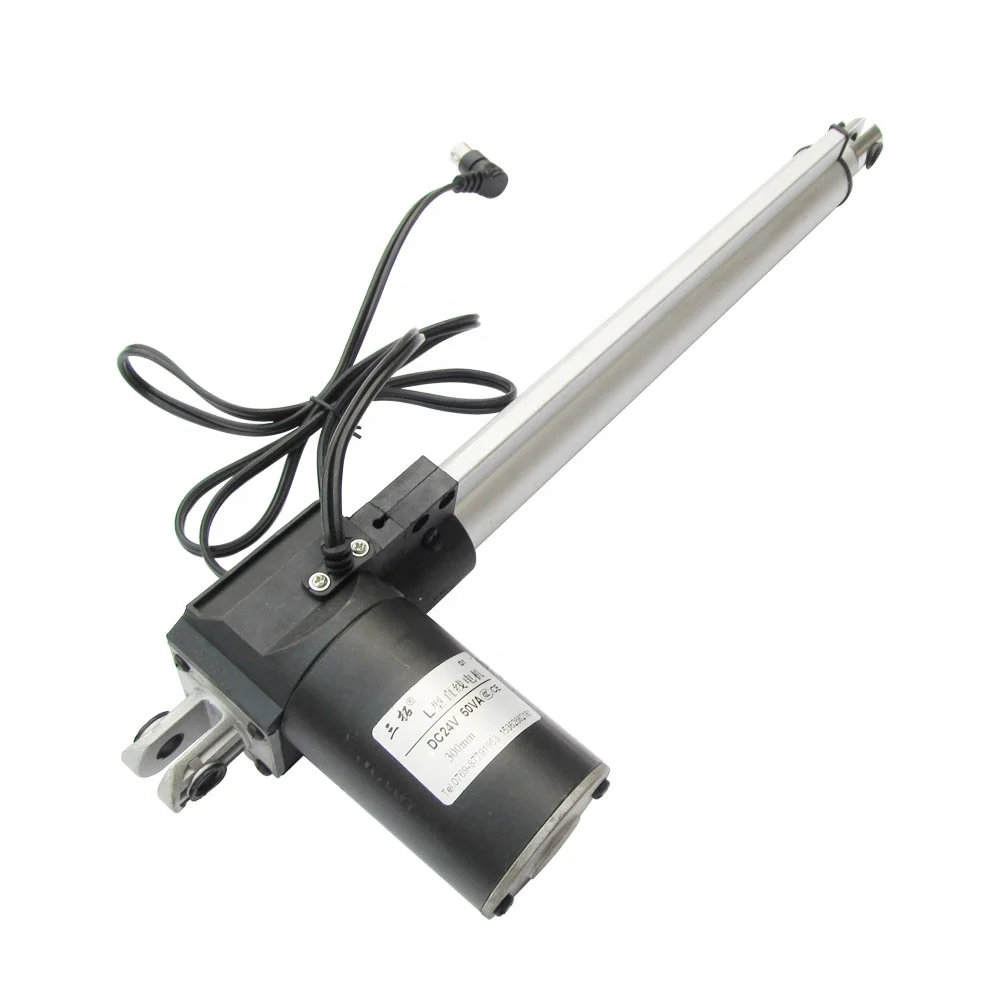

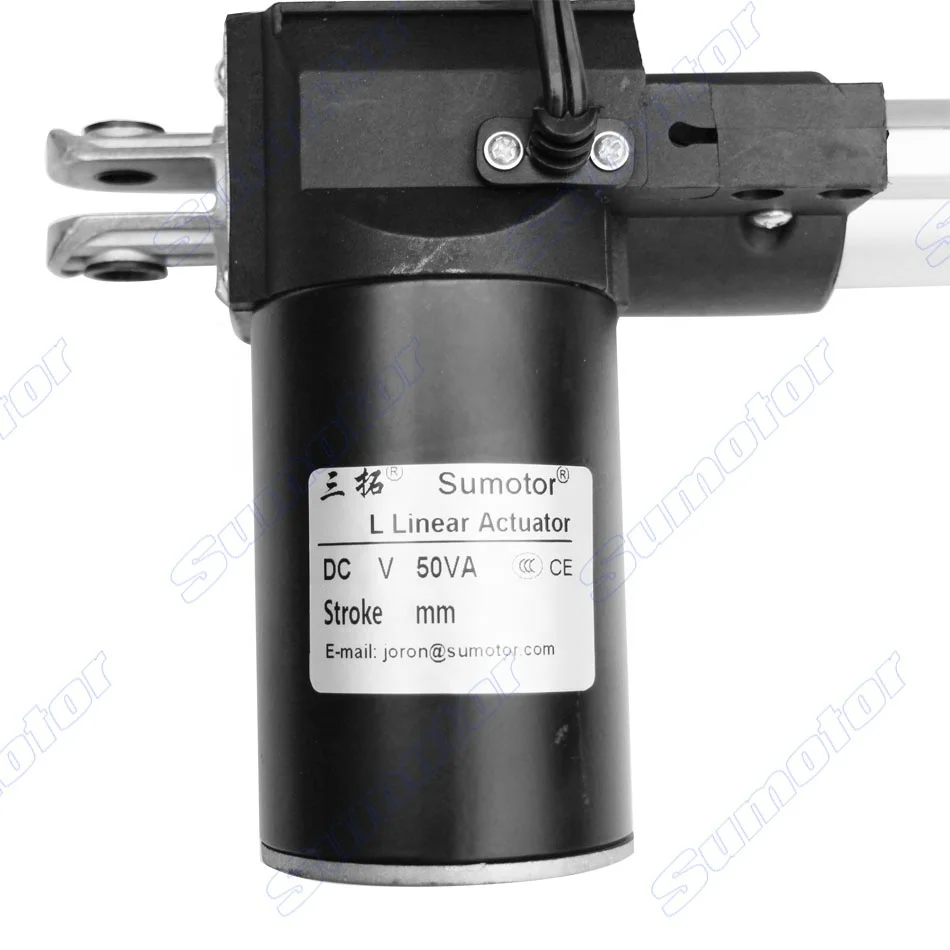

L300 Stroke 50-600 mm 2-24 Inch DC 12V 24V 5/10/30 Mm/s 600/300/100Kg Electric Linear Actuator Heavy Duty Pusher Progressive
Other recommendations for your business
Contact us
Quik Detail
| Warranty | Other |
|---|---|
| Place of Origin | Guangdong, China |
| Brand Name | Seemtoon |
| Model Number | L300 |
| Use | BOAT, Car, Electric Bicycle, Home Appliance, Cosmetic instrument, SMART HOME |
| Type | Brush Motor |
| Torque | 600/300/100Kg |
| Construction | Permanent Magnet |
| Commutation | Brushless |
| Protect Feature | Totally Enclosed |
| Speed(RPM) | 5/10/30 mm/s |
| Continuous Current(A) | 12V 6A, 24V 3A |
| Efficiency | IE 2 |
| Certification | ce |
Product Detail
Technical Data
Little Noise
Lower Price
1. Dimensions
Power: 50W
Voltage: DC 12V, 24V
No Loading Speed: 12V 5mm/s 10mm/s 30mm/s; 24V 5mm/s 10mm/s 30mm/s
Rated Thrust: 12V: 600Kg( 5mm/s), 300Kg( 10mm/s), 100Kg( 30mm/s);
24V: 600Kg( 5mm/s), 300Kg( 10mm/s), 100Kg( 30mm/s);
Work rule: 10%. Loading rated thrust need 10% work rule. In 20 minutes, 2minutes work 18minutes rest. If lower load can extend work time.
Work temperature: -15 to +60 degrees.
Protect level: IP54
Body Material: Aluminum Alloy
Ultra low noise
2. Technical Data
| Series | Characteristic | Voltage (V) |
Model | Stroke (mm) |
No load | 5mm/s | 10mm/s | 30mm/s | Rated Current (A) |
Dimension(mm) closed size |
Net Weight (Kg) |
| Loading | 4mm/s | 7mm/s | 20mm/s | ||||||||
| L series | Large Thrust Little Noise Lower Price |
DC12V/DC24V | L50 | 50 | Rated Thrust (Kg) |
600Kg | 300Kg | 100Kg | 12V 6A 24V 3A (Under Rated Thrust) |
250x80x150 | 1.75 |
| L100 | 100 | 300x80x150 | 1.85 | ||||||||
| L150 | 150 | 350x80x150 | 1.95 | ||||||||
| L200 | 200 | 400x80x150 | 2.05 | ||||||||
| L250 | 250 | 450x80x150 | 2.1 | ||||||||
| L300 | 300 | 500x80x150 | 2.2 | ||||||||
| L400 | 400 | 600x80x150 | 2.4 | ||||||||
| L500 | 500 | 700x80x150 | 2.6 | ||||||||
| L600 | 600 | 800x80x150 | 2.8 |
 |
 |
 |
| Wnidous open | Medical bed | Massage Chair |
1. Innovation Strength
In DGJL, We have 10+ experienced engineers.
Our engineers utilize advanced design technology, and the latest analysis system like Motor Performance Analyzing System, Starting Torque Tester, Gearhead design software to design a product.
2. Quality Control
We have more than 100 high-end machines, including the Gear Hobbing Machine, Slow Wire Cutting Machine, Motor Performance Tester, Gear Measuring Center.
3. Quantity and Productivity
With the help of modern automated production lines, our factories have an annual capacity of 1,000,000 units.
Stable & Safe & Fast shipping.
Q:1. What kind of motors you can supply?
Our main products: Mirco DC worm gear motor (0.1w-500watts, 1080Nm-0.1Nm), Micro DC planetary gear motor, Mirco DC spur gear motor.
We also supply AC synchronous gear motor, AC induction (worm) gear motor, AC/DC reciprocating/winging motor.
Q:2. How can I choose the most suit motor?
Please confirm the Voltage, Speed, Torque, Current, Output direction, Work rule, Temperature, Noise, Environment. We also can help you to select.
Q:3. Is it possible for you to develop new motors if we can provide tooling cost?
In most cases, we do custom like shaft, power, speed, encoder, connector, brushless, type of brushes, etc.
Q:4. How can I pay?
T/T, PayPal, Credit Card, Western Union, Cash, Escrow, L/C, MoneyGram.
Q:5. Can I get some samples?
In most cases, we can provide several samples, just contact us.
Q:6. What is the lead time?
3-5 days, 7-10 days, 20-30 days, it depends on quantity and product model.
Q:7. What shipping methods are available? How long will cost for delivery?
DHL, UPS, FedEx, TNT, 5-10 days.
China Post (economic) 25-35 days.
Air freight 10-13 days.
Sea freight 20-40 days
Railway freight (Europe only)25-35 days.
Q:8. Why choose you?
Not only we have 10 years' experience, but also we only manufacture a durable gear motor.
If you don’t want to repair your equipment in the future.
If you want a reliable supplier.
If you want a durable quality gear motor.
If you want the best solution.
Please contact to get samples for testing.
