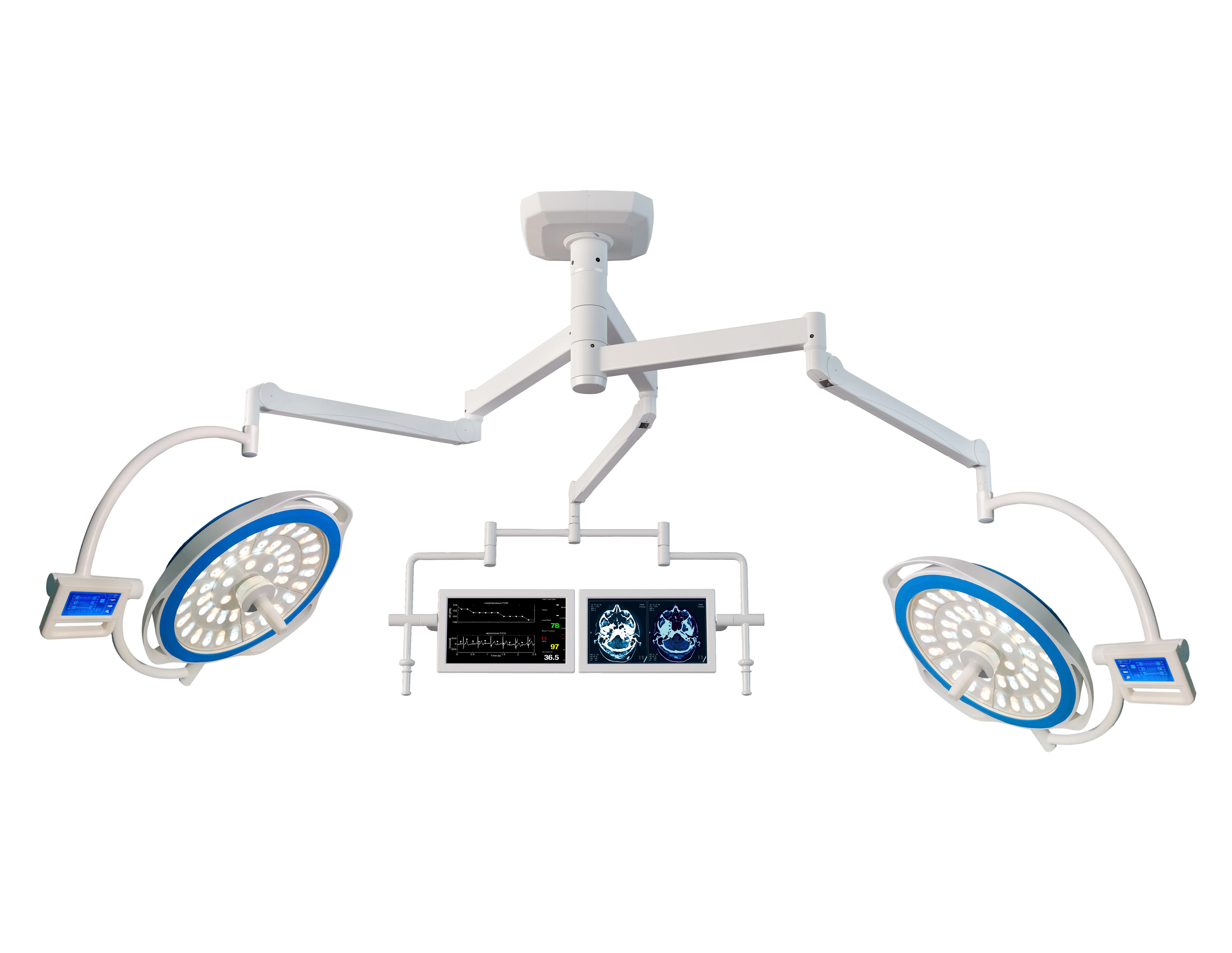

LED OT Shadowless Operating Light
US $4,999.00-5,900.00 / piece
1 piece(s)Minimum order
Place of Origin:
Shandong, China
Brand Name:
LEWIN
Model Number:
CreLed 5700/5500
Power Source:
Electricity
Warranty:
1 Year
After-sale Service:
Free spare parts
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$1,100.00-1,300.00
1 piece (MOQ)
$1,100.00-1,300.00
1 piece (MOQ)
$5,500.00-5,900.00
1 piece (MOQ)
$80.00-150.00
1 unit (MOQ)
Contact us
Quik Detail
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | LEWIN |
| Model Number | CreLed 5700/5500 |
| Power Source | Electricity |
| Warranty | 1 Year |
| After-sale Service | Free spare parts |
| Material | metal, Plastic |
| Shelf Life | 3 years |
| Quality Certification | ce |
| Instrument classification | Class II |
| Safety standard | None |
| lighting depth | 1200mm |
| illumination | 80000-160000lux |
| power supply | 110-130/220-240V,50/60HZ |
| mode | normal;deep cavity;surface;background |
| life span | 60 000 hours |
| light body | streamline |
| color temp | 3800--5000K |
| Type | Surgical Lamps |
Product Detail
Recommend Products
Product Paramenters
Ceiling Mounted Shadowless Operating Room Lamp For Hospital And Clinic Led Surgical Lights For Dental/OR
Parameter | CreLed 5500 | CreLed 5700 |
Lamp Head Diameter(mm) | 500mm | 700mm |
Illumination(Lux) | 60000-120000 | 80000-160000 |
Color Temperature(K) | 3500-5000 by 6 steps | 3500-5000 by 6 steps |
Lighting Depth (mm) | ≥1200 | ≥1200 |
Spot Diameter (mm) | 150-350 | 150-350 |
Dimming Range | 12levels | 12levels |
Color Randering Index(Ra) | ≥96 | ≥96 |
App. Mode | background/surface/deep cavity/normal mode | background/surface/deep cavity/normal mode |
Quantity of LED Bulbs | 48 | 78 |
Power Supply | 110-130/220-240V, 50/60 Hz | 110-130/220-240V, 50/60 Hz |
LED bulb power(W) | 1W each LED bulb | 1W each LED bulb |
Bulb Life span | more than 50,000 hours | more than 50,000 hours |
Material | light head: polymethyl methacrylate and aluminium alloy | light head: polymethyl methacrylate and aluminium alloy |
Camera System | optional | optional |
Details Images
Features
Advanced surgical light technology for precision and efficiency
LEWIN's state-of-the-art operating theatre lights, examination lights and video systems offer excellent illumination wherever they are used. Outstanding features of our surgical lights include intuitive handling and a future-proof design. We eliminate any unnecessary time spent away from patients by offering you a simple control system and an easy-to-use interface. LEWIN series surgical light will help you deliver exceptional performance and the best possible care.
LED light bulbsUse Germany imported OSRAM medical grade white LED light bulbs, no ultraviolet and infrared spectrum, neither heat nor
radiation,the doctor's head and wound area almost no temperature rise.
The service life of LED shadowless lamp
The service life of LED shadowless lamp is long (50,000h), far longer than that of traditional tungsten halogen lamp (1,500h), and it is over twenty times of the service life of energy saving lamp.
Energy saving
Energy saving: 30% reduction in energy consumption, impact resistance, high luminous efficiency. Shock resistant. Zero mercury. No infrared light or UV emission.
Illumination adjustable
Main dome with camera at the center of he dome provides shadow free illumination adjusted automatically. The focus for main dome with camera can be adjusted electrically from the control panel on dome as well as wall.
Full close streamline light head
With ultra-thin aerodynamic design and streamlined shell of dome minimize the turbulence of laminar air flow, provide peration room with great hygiene and easy for cleaning.
Detachable sterilize handle
Satellite dome is provided with detachable, sterilizable and lockable handle at the center of dome from where the focus can be adjusted manually and advance technology offers shadow free illumination.
Spring arm and rotating suspension system
The suspension system allows 360° rotation of light head and arms ensures the dome along with camera can be moved easily and freely in all directions.
Perfect shadowless effect
Depth of illumination The distance between the points of 20% illumination intensity above and below the center point is 70-130 cms.
Color Temperature adjustable
Standard LCD touch screen.12 shift scales lighting intensity adjustment.
High quality power supply board, its life match with LED life,quarantee the operating.light's overall service life.
Dimming range
Inside camera and shadowless lamp focusing handle perfect combination together, can be 360 infinite position rotation, with shadowless lamp focusing function.
Unique design of the different modes
Endo mode in which six tiny LED's create an unparalleled, uniform glow in the room allowing surgeons to concentrate on the monitors during Minimal Invasive Surgery (MIS) and Endoscopy Procedures in darkened operation theater.
Deep Cavity helps in visualization and distinguish between small tissues, light equipped with multicolor LEDs and this mode provide automatic focus, color temperature as required by surgeons on depth to wound area with quality light.
Surface mode for minor surgery with accurate color reproduction and exceptionally high white light output on body surface without heat development and exact positioning of the laminar support during medical procedures.
Normal mode is used for normal OT surgery and while running on normal mode all the features like illumination control, color temperature adjustment and electric focus can be used.
Parameter
LEWIN CreLed Series uses the unique electrical control pattern to adjust the light field diameter: increase or decrease the quantity of the lighted bulbs. The light field diameter can be adjusted from 150 to 350mm for various size operating fields.
LEWIN offers a special light source system with a uniform mixed light of cool white LEDs and warm white LEDs to realize the color temperature adjustment. The light colors within the surgical area will not be affected or produce a "Rainbow effect" when surgeons block some of the light source during surgery.
