PCB name:
LED PCB
Number of layer:
1layer
Other service:
Components purchase and assemble
Solder mask:
White
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

Model Number

Customized

Place of Origin

Guangdong, China

PCB name

LED PCB

Number of layer

1layer

Other service

Components purchase and assemble

Solder mask

White

Dsign service

Available

Testing

Function testing

Delivery

DHL/Fedex/UPS

Warranty

3years

Product Detail

LED PCB & PCBA supplier,LED PCB assembly,SMT PCB

We can do for you:

♦ 1-12 layer FR4 PCB.

♦ 1-2layer aluminum PCB.

 1-4layer flexible PCB.

 CEM-1 PCB

♦ 94VO PCB

♦ SMT and DIP assembly service.

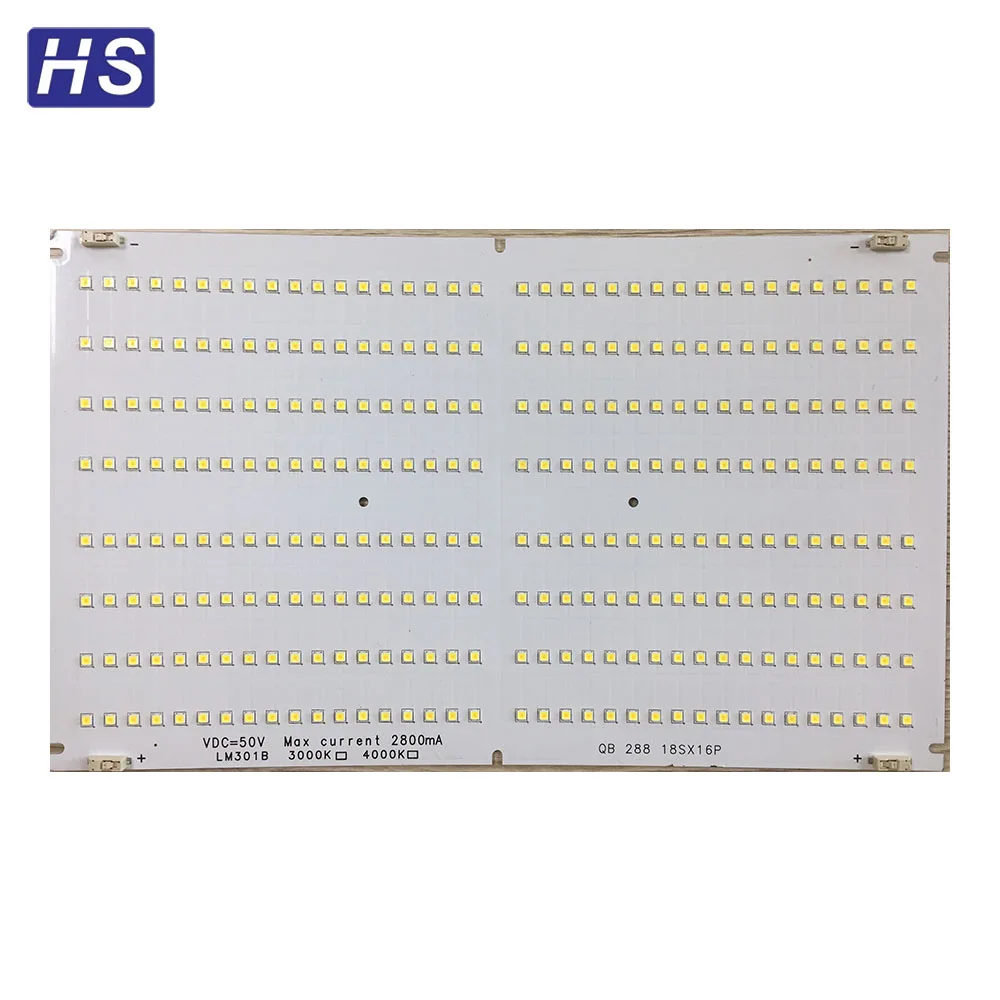

288LED-LM301B-3000K











FAQ:

Q:1.Can i have a sample to test?

  A:Yes,we can send you samples to test.



Q:2.What specifications do you need for PCB quotation?

  A:We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.



Q:3.What is the lead time?

  A:Samples need 3-5days,mass production needs 7-10days,also according to the order volume.



Q:4.Do you have MOQ limit?

  A:Even 1 pcs,we care.



Q:5.Can you offer the best price for us?

  A:Yes,we are specialized PCB manufacturer directly,we can offer lower price than any trading company.



Q:6.How do you ship the goods and how long does it take arrival?

  A:We usually ship by DHL,UPS,FedEx and TNT.It takes 3-5days to arrive.



Q:7.What are the payment terms?

  A:You can pay us with Paypal,Western Union and T/T Bank.



Q:8.Can we visit your factory?

  A:Yes,welcome to visit our factory anytime,and we will lead you to visit our  factory and our production line.



Manufacturing Capability:



Item

Manufacture Capability

Material

FR4,CEM-1, Aluminium, Polyamide

Layer No.

1-12

Finished board thickness

0.1 mm-4.0mm

Board Thickness Tolerance

±10%

Cooper thickness

0.5OZ-3OZ (18 um-385 um)

Copper Plating Hole

18-40 um

Impedance Control

±10%

Warp&Twist

0.70%

Peelable

0.012"(0.3mm)-0.02’(0.5mm)

Images

Min Trace Width (a)

0.075mm (3mil)

Min Space Width (b)

0.1mm (4 mil)

Min Annular Ring

0.1mm (4 mil)

SMD Pitch (a)

0.2 mm(8 mil)

BGA Pitch (b)

0.2 mm (8 mil)

Solder Mask

Min Solder Mask Dam (a)

0.0635 mm (2.5mil)

Solder mask Clearance (b)

0.1mm (4 mil)

Min SMT Pad spacing (c)

0.1mm (4 mil)

Solder Mask Thickness

0.0007"(0.018mm)

Holes

Min Hole size (CNC)

0.2 mm (8 mil)

Min Punch Hole Size

0.9 mm (35 mil)

Hole Size Tol (+/-)

PTH:±0.075mm;NPTH: ±0.05mm

Hole Position Tol

±0.075mm
