Liyi VMM 2D 2.5D CCD Vision Inspection Video Visual Measuring Machine for Automotive Electronic Industry
US $5,600.00-5,680.00 / set
1 set(s)Minimum order
warranty:
12 months
customized support:
OEM, ODM
place of origin:
Guangdong, China
brand name:
LIYI
model number:
LIYI
Metal table size:
354 *228mm
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$3,600.00-3,850.00
1 set (MOQ)
$2,680.00-5,470.00
1 set (MOQ)
$1,520.00-3,450.00
1 set (MOQ)
$1,250.00-2,150.00
1 set (MOQ)
$1,050.00-2,000.00
1 set (MOQ)
Contact us
Quik Detail
| warranty | 12 months |
|---|---|
| customized support | OEM, ODM |
| place of origin | Guangdong, China |
| brand name | LIYI |
| model number | LIYI |
| Metal table size | 354 *228mm |
| Glass table size | 210 *160mm |
| Travel mileage | 150*100mm |
| Working distance | 108mm |
| Z-axis lift | 150 mm |
| Field of view objects | 0.7 ~ 1.1mm |
| Video Total magnification | 30 ~ 230 |
| Zoom lens magnification | 0.7 ~ 4.5 |
| Digital Resolution | 1um |
| Keyword | Video Measuring Machine |
Product Detail
提示信息
Subtitle/CC
Speed
Quality
Audio Track
Speed
Subtitle/CC
Audio Track
Quality

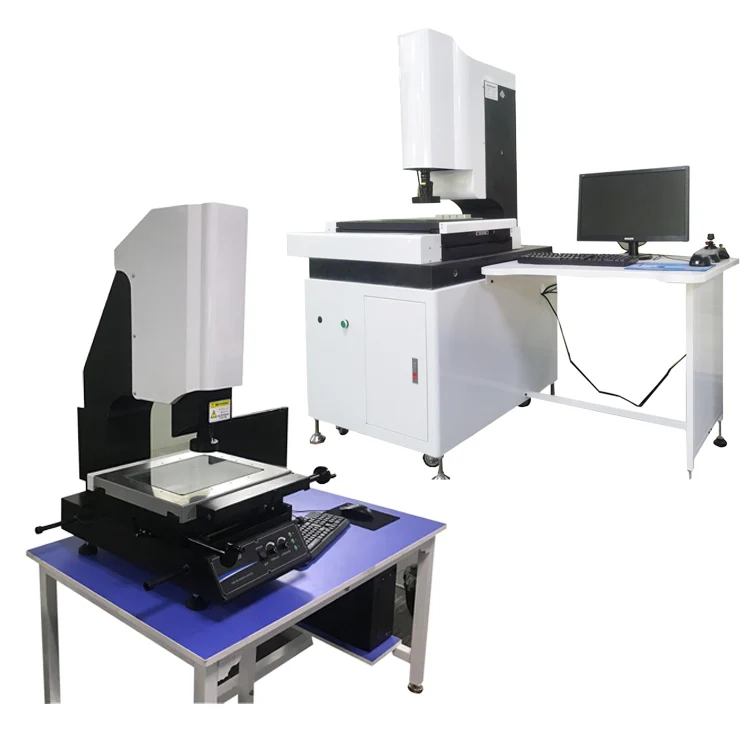

Liyi VMM 2D 2.5D CCD Vision Inspection Video Visual Measuring Machine For Automotive Electronic Industry
Product Description
1. Apparatus with RS232 interface ,when connected to the computer, special measurement software M2D can process and output the mapping graph.
2. Apparatus using color CCD camera, zoom lens and the cross line generator as a measure aiming system;
3. Grating electric box with the composition of DC-3000 Digital Measurement and data processing systems;
4. Apparatus with a variety of data processing, display, input, output, particularly useful piece straighten function; users matching the printer according to their needs and target different measurement systems.
Main function:
1.Element measurements: multi-point measurement point, line, circle, arc, angle, ellipse, rectangle measuring points provided, automatic identification of point, line, circle, arc.
2.element structure: the center structure, the intersection of structure, the mid-point structure, line structure, a round structure, the angle structures.
3.preset elements: point, line, circle, arc.
4.graphics: coordinate translation, straighten the work piece.
5.arbitrary axis straightened, coordinate system reset.
6.graphic to enlarge, reduce graphics, graphics translation, graphic printing graphic is selected, uncheck, graphics removed.
7.Set the zoom, graphics narrow, graphic print radio is selected, deselect, graphics removed.
8 .Set the gray scale image, saturation, contrast, image saved as a BMP format.
9.a variety of edge detection mode, the computer automatically get points, automatic identification circle, arc greatly enhance the speed of mining points.
10.image support S video input; image size 640 * 480mm.
Specifications
Model | VMS-1510 | |||
Table | Metal table size (mm) | 354 ×228 | ||
Glass table size (mm) | 210 ×160 | |||
Travel mileage (mm) | 150 ×100 | |||
Weight( kg ) | 100 | |||
Measurement and aiming system | Camera: Color 1 / 3 "CCD camera Zoom lens magnification: 0.7 ~ 4.5 | |||
Video Total magnification: 30 ~ 230 Field of view objects: 0.7 ~ 1.1mm | ||||
Working distance: 108mm | ||||
Z-axis lift: 150 mm | ||||
Digital Resolution: 1μm | X.Y coordinate measuring indication error ≤ 3 + L/200) μm | |||
Lighting: Surface light and transmission light are using LED, adjustable brightness Power: 220V (AC), 50HZ, 30W | ||||
Measurement software: standard with automatic measurement software can automatically find edges, deburring, measurable point, line, circle, center distance, angle, put right, etc. | ||||
