Micro Motion FVM Viscosity Meter, Insertion Fork Viscosity Meter

1 piece(s)Minimum order
warranty:
1 year
customized support:
OEM
place of origin:
Mexico
brand name:
Emerson
model number:
FVM11A729AAC2VPBEZZZMC
type:
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

warranty

1 year

customized support

OEM

place of origin

Mexico

brand name

Emerson

model number

FVM11A729AAC2VPBEZZZMC

type

Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters

Viscosity Measuring Range

0-20,000cP

Viscosity Accuracy

±0.2cP (0-10cP) then ±1%

Density Measuring Range

0-3000 kg/m3

Density Accuracy

±1.0 kg/m3

Safety Approvals

ATEX, C SA, IECEx

Display

Two-line, LCD screen Optical switch configuration

Outputs

Standard: 4-20mA, HART, Modbus RS-485

Protection Class

Ingress Protection: IP66/67, NEMA4 EMC compliant with EN61326

Dimensions

355 mm (h) x 163 mm (w) x 163 mm (d)

Weight (Typical)

6.7 kg (15 lbs)

Product Detail

Micro Motion FVM Viscosity meter, Insertion Fork Viscosity Meter



INTRODUCING EMERSON’S MICRO MOTION ® FORK VISCOSITyMETER

Our Fork Viscosity Meter (FVM) delivers accurate, online viscosity and density measurement using a direct insertion tuning fork design. This rugged and reliable meter raises the standard for inline viscosity and density monitoring and enhances the product quality, blending operations, and efficient combustion of process liquids as diverse as lube oils, asphalts and refined products.



Viscosity and Density Measurement with Performance and Confidence The combination of our industry-leading technology, wide breadth of products, unparalleled application expertise and customer support allows us to deliver unbeatable performance and value, time and time again.



The Micro Motion Fork Viscosity Meter Delivers: Superior Measurement Capabilities

• A rugged, multi-variable direct insertion sensor that  provides the best, real-time measurement of viscosity (±1% of calibrated range max) and density (±1.0 kg/m3)

• Application flexibility with pipeline, bypass (fast) loop  and tank installation support A World-Class Leading Electronics Platform

• Local display and user interface that allows for a simplified device management, minimizing maintenance requirements

• Simple integration into DCS, PLC and flow computers  (Analog 4-20mA, HART, Modbus RS485 and FOUNDATION fieldbus)

• Revolutionary device diagnostics and verification methods Robust and Flexible Measurement

• Application-specific measurement and output  configurations to ensure simple set-up and commissioning

• Optimized design; insensitive to vibration, temperature  and pressure variations





Application-Specific

Configurations Automatic, application-specific measurement and output configurations ensure simple set-up and commissioning





Meter Diagnostics Built-in diagnostics for real-time monitoring and automated meter verification systems

Unrivalled Density Performance A choice of installation options for replacement solutions give you the performance you need




Interconnectivity Integral HART I/O allows direct input of external temperature, pressure and flow measurements for enhanced outputs




KEY APPLICATIONS



Combustion Control

• Oil Fired Heater and Boiler Control Improved fuel atomization consistency with varying feed stock quality

• Maintenance and Emissions Reduced fiscal exposure through optimized maintenance cycles and reduced NOx /SO x levies







Refining & Petrochemical

• Product Detection and Quality Optimize product uniformity and consistency while minimizing manual sampling

• Product Blending Minimize cutter-stock costs for accurate multi-grade Heavy Fuel Oil (HFO) production






Pipeline & Terminals

• Interface and Product Detection Improve cut-over accuracy and product quality determination to reduce scrap, waste or down-grading of multi-product pipelines

• Volumetric Flowmeter Viscosity Correction Improved inventory accuracy through reduced K-factor and volumetric flow errors

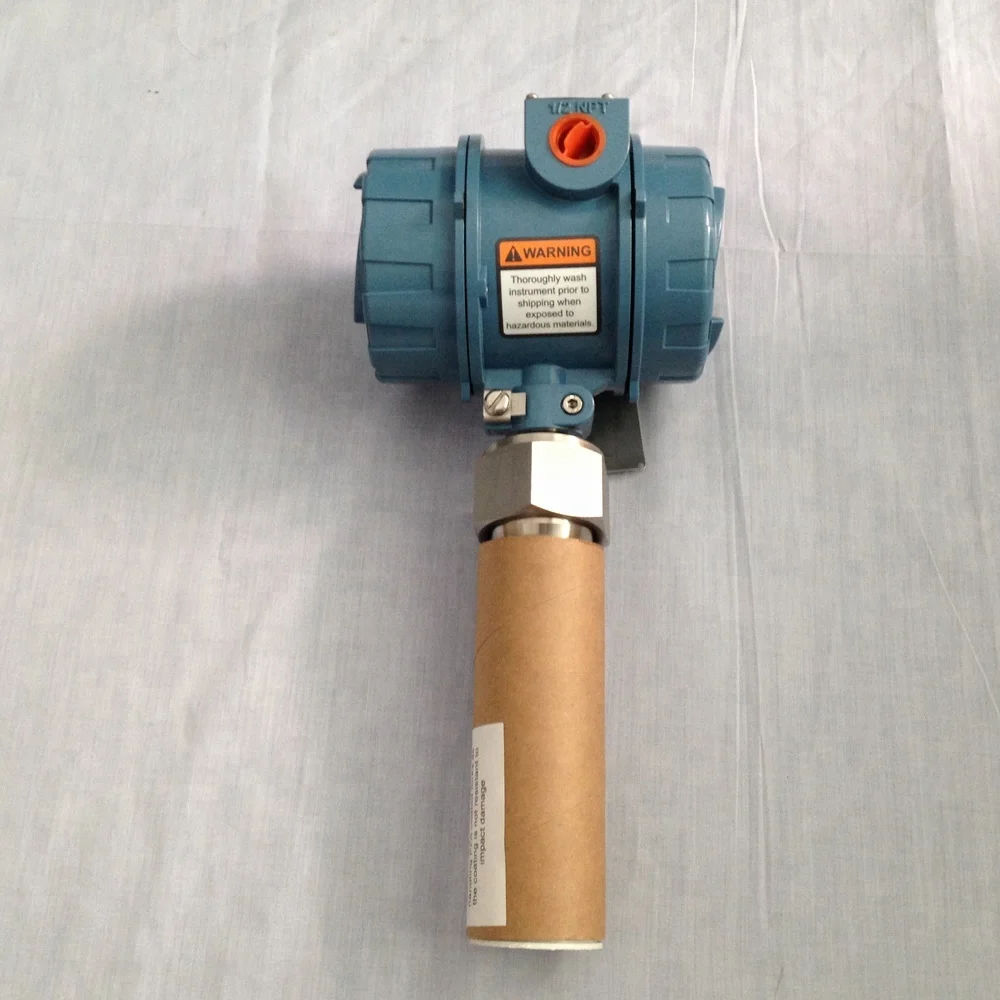

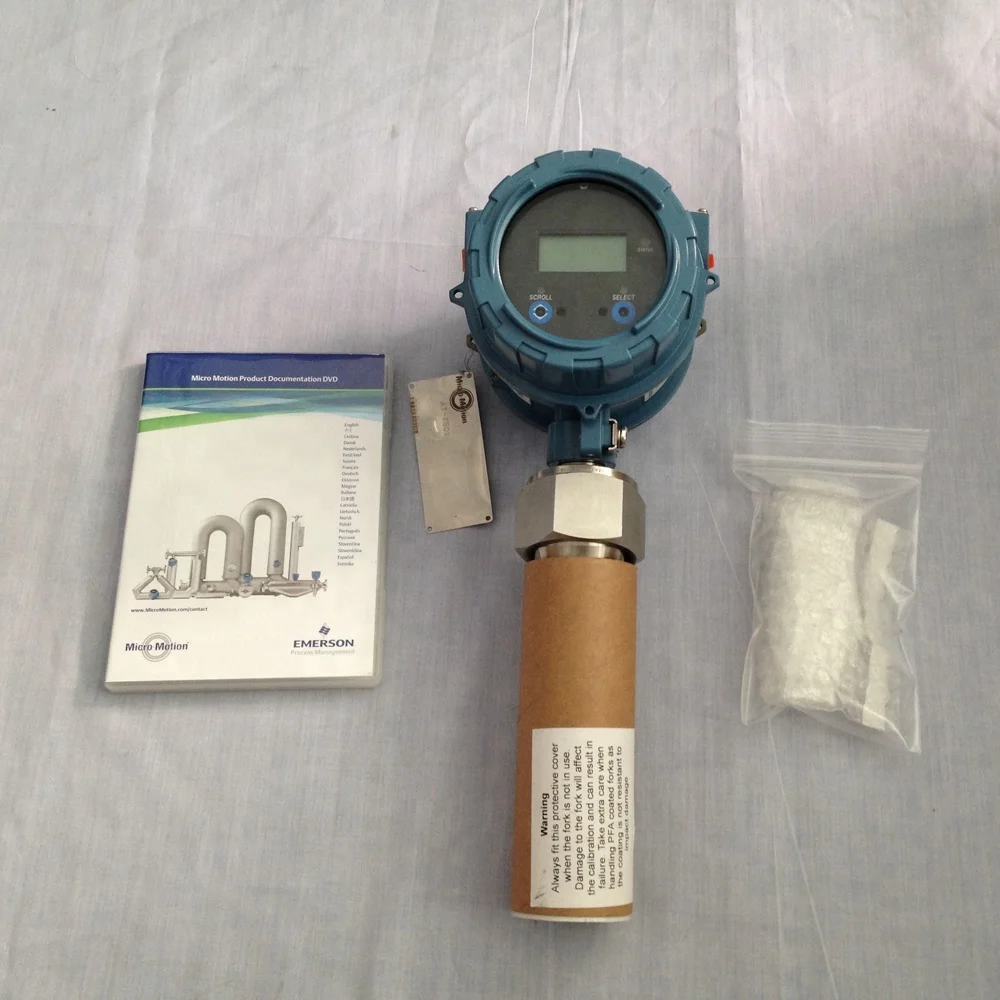

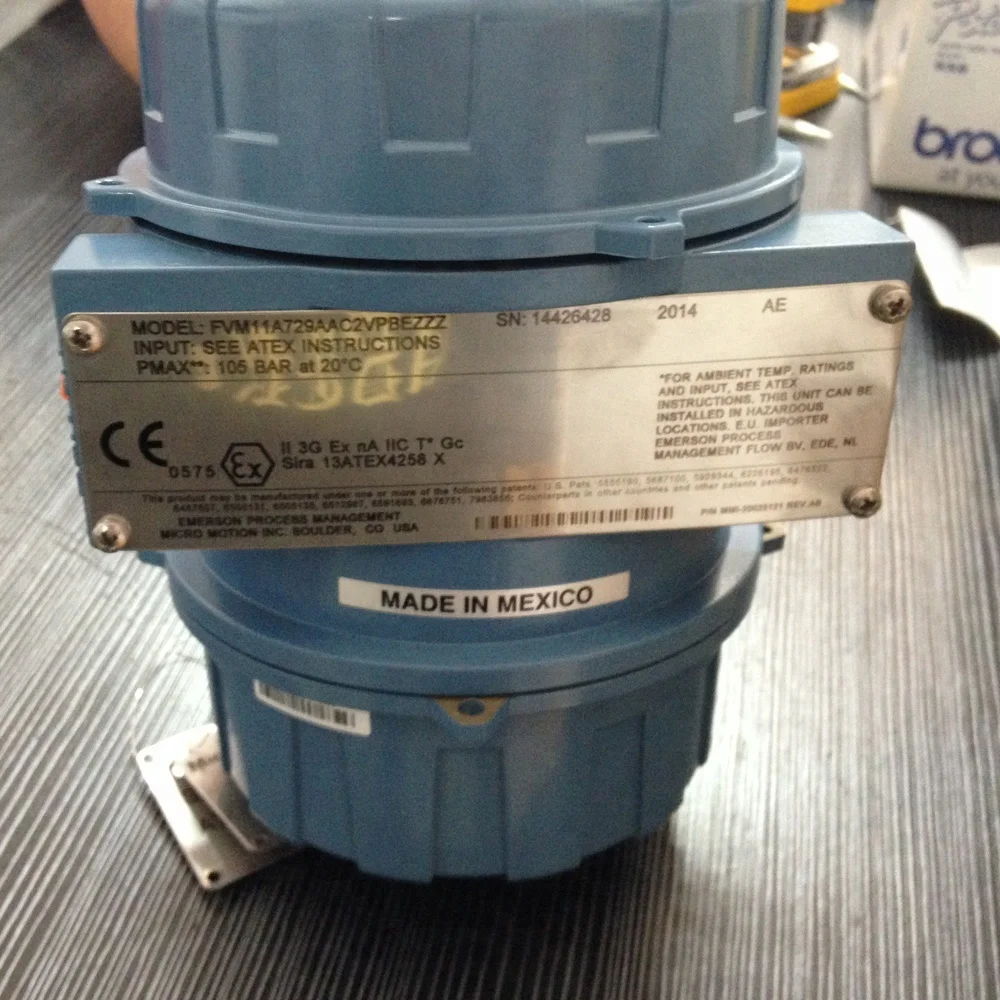

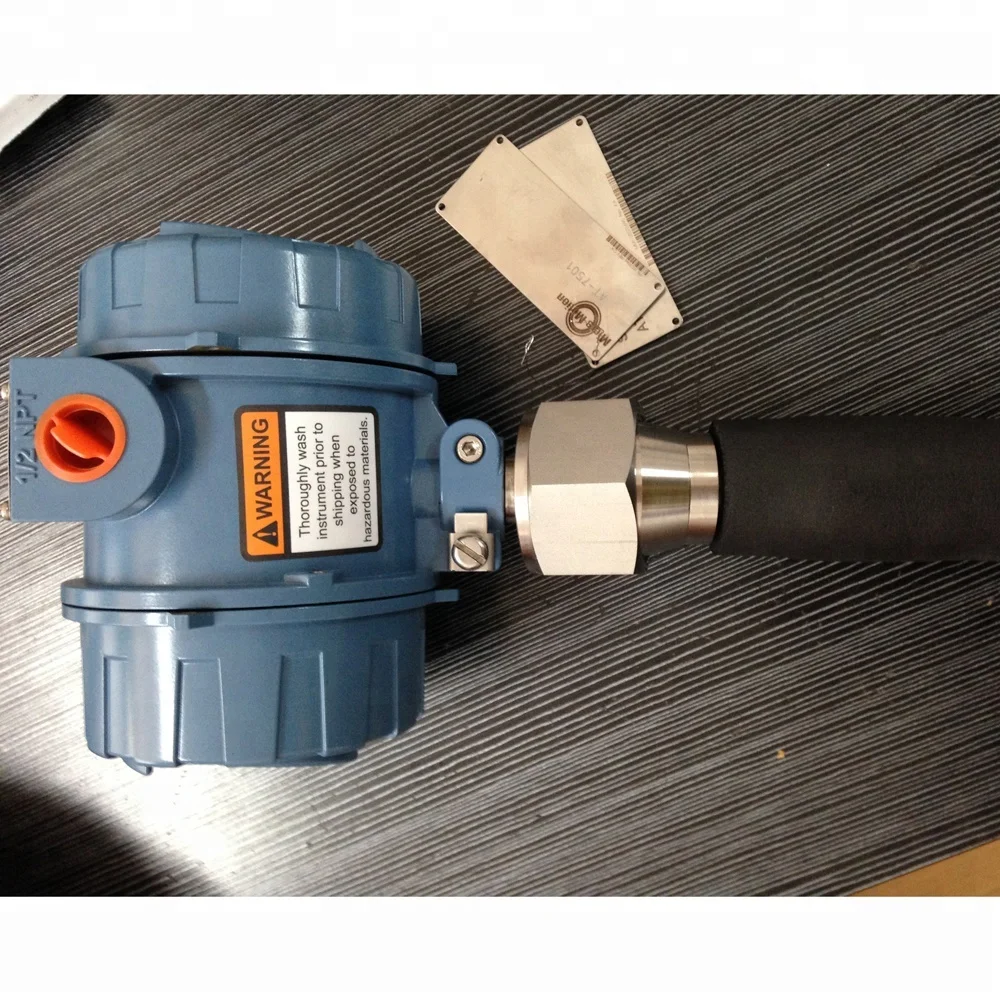

IMG_0790 .jpgIMG_0821 .jpg
