New Model 12v 24v 48v to Ac 110v 220v 230v 300w Pure Sine Wave Welding Passpower Inverter with CE RoHS 2 Years Warranty !
Other recommendations for your business
Contact us
Quik Detail
| Network | SDK |
|---|---|
| Place of Origin | Jiangsu, China |
| Brand Name | PASS POWER |
| Model Number | XP300W |
| Type | DC/AC Inverters, passpower inverter |
| Output Type | Single Phase |
| Output Current | 1.5A-3A |
| Output Frequency | 50Hz/60Hz |

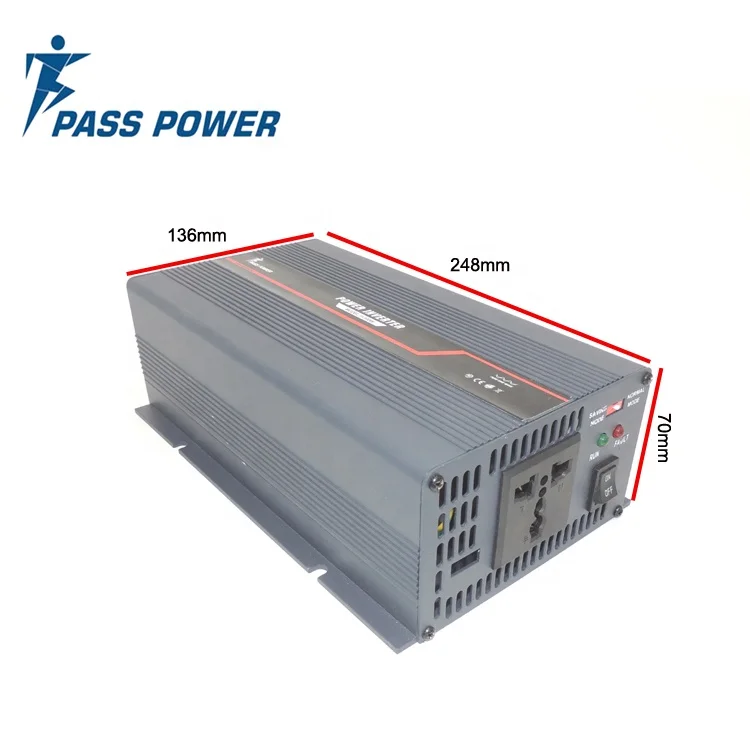

| Size | 248*136*70mm |
| Weight | 1.3KG |
| Peak power | 600w |
| Output waveform | Pure sine wave |
| THD | <3% |
| Color | Black |
| Start way | Soft-start |
| Socket | All kinds |
| Grid type | single phase inverter |
| Warranty time | 2 years |
| Rate power | 300w |
| Customized support | Software reengineering |
Product Detail
New model 300w passpower inverter dc 12v 24v 36v 48v to ac 110v 220v 230v pure sine wave inverter with CE RoHS SGS certificates

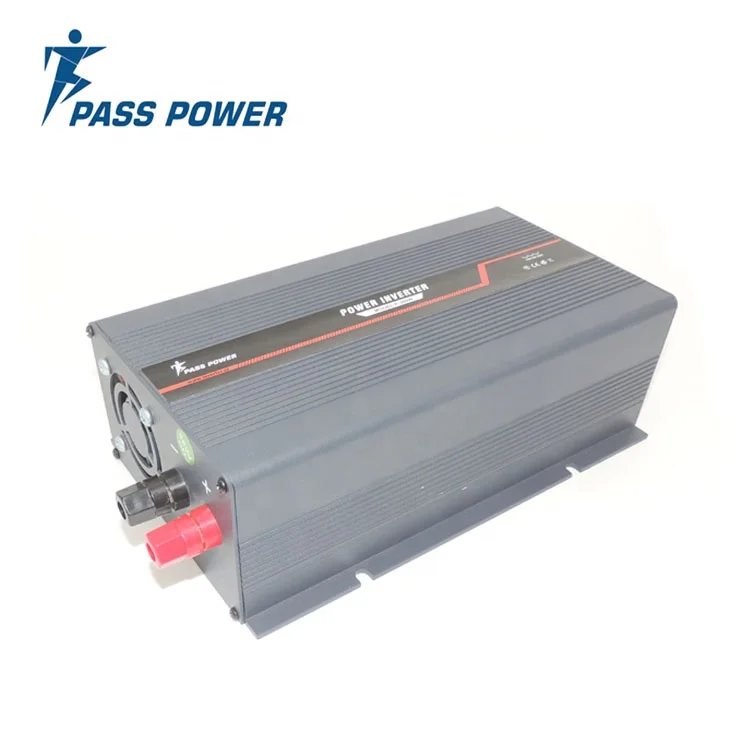

Product photo
Product descriptions :dc to ac inverter
The newest 300W high frequency pure sine wave single phase inverter, XP-300W
This high power inverter instantly converts low voltage DC power to high voltage AC household power with the advanced double CPU SCM intelligent controlling technology. With innovative design and super efficiency,300w power inverter is small and light, safe and stable, highly efficient with low noise.
Customizable input voltage such as 36V, 72V, 96V, 110V etc; output voltage such as 120v, 130v, 200V etc; Many kinds of sockets are available.
Product advantages of new model 300w dc to ac inverter with high capacity
1. High speed DSP processor, operate fast;
2. Software adjusts DC and AC output voltage, frequency flexible. It can meet different customers' need
3. Software and hardware dual protection, reduce mos pipe loss, high stability
4. with power saving mode to reduce no-load loss
5. Optional: RS-485 communication, remote control interface
6. Customizable: Low temperature (-40℃) working model
7. Customizable input voltage such as 36V, 72V, 96V, 110V,127v,220v
8. Customizable: Different sockets and AC voltage
9. Anti-interference
Product Features of new model 300w dc to ac inverter with high capacity
1. Output waveform: pure sine wave
2. 12v/24v/48v DC input
3. 100v-120v/220v-240v AC output
4. Output frequency: 60Hz/50Hz
5. Rated power: 300w
6. Peak power: 450w
7. Work efficiency: 90%
8. THD<3% (less than standard 5%)
9. LED indication
10. Full power and soft start
11. High transform efficiency, fast start
12. Strong adaptability and stability
13. Safe and reliable with built-in fuse
14. Temperature controlled fan, safe & efficient
15. Low voltage protection
16. Over voltage protection
17. Over load protection
18. Short circuit protection
19. Input reverse connection protection
20. Over temperature protection
21. CE &ROHS &SGS &GMC &IP30 approved

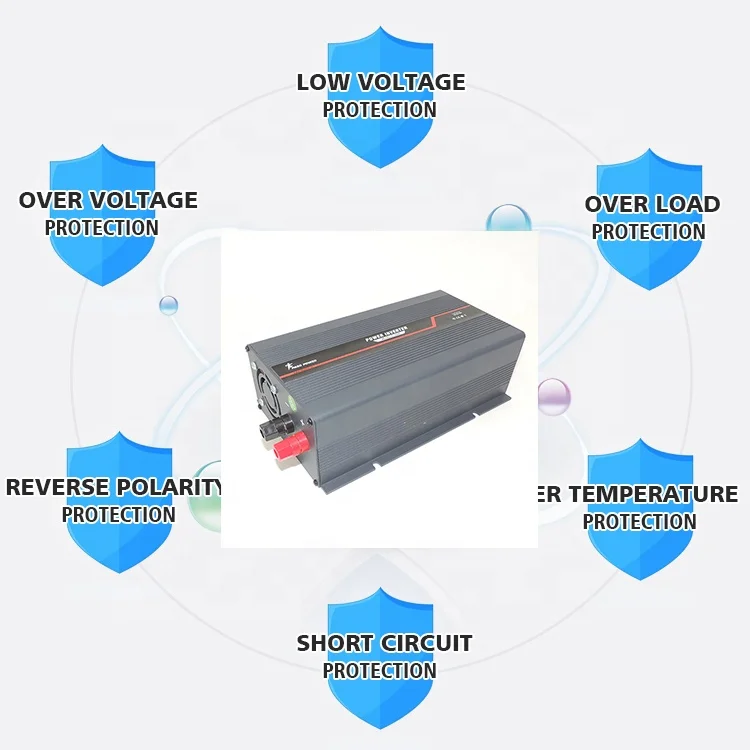

Protection Functions :dc to ac inverter
Performance Characteristics of Generation III 300W dc to ac inverter
| Model | P300-12-110 | P300-24-110 | P300-48-110 | P300-12-220 | P300-24-220 | P300-48-220 |
| Power | 300W | 300W | 300W | 300W | 300W | 300W |
| Peak Power | 450W | |||||
| DC Input Voltage | 12V | 24V | 48V | 12V | 24V | 48V |
| AC Output Voltage | 110VAC±5% | 220VAC±5% | ||||
| No-load Current | <0.7A(13V) | <0.4A(26V) | <0.3A(52V) | <0.7A(13V) | <0.4A(26V) | <0.3A(52V) |
| AC Output Frequency | 50HZ±0.1/60HZ±0.1 | |||||
| Output waveform | pure sine wave | |||||
| Wave Distortion | THD<3% | |||||
| Full Load Efficiency | >88%(DC13V) | >90%(DC26V) | >92%(DC52V) | >88%(DC13V) | >90%(DC26V) | >92%(DC52V) |
| DC Input Voltage Range | 10V~15V | 22V~30V | 44V~60V | 10V~15V | 20V~30V | 40V~60V |
| Lower Voltage Alarm | 10.5±0.3V | 21±0.3V | 42±0.3V | 10.5±0.3V | 21±0.3V | 42±0.3V |
| Lower Voltage Shutoff | 10±0.5V | 20±0.5V | 40±0.5V | 10±0.5V | 20±0.5V | 40±0.5V |
| Higher Voltage Shutoff | 15±0.3V | 30±0.3V | 60±0.3V | 15±0.3V | 30±0.3V | 60±0.3V |
| Lower Voltage Recovery | 12±0.5V | 24±0.5V | 48±0.5V | 12±0.5V | 24±0.5V | 48±0.5V |
| Higher Voltage Recovery | 14±0.3V | 28±0.3V | 56±0.3V | 14±0.3V | 28±0.3V | 56±0.3V |
| Over-load Shut-off | 105% 5 mins / 110% 1 min / 120% 10s | |||||
| Protect Function | Lower voltage: Green LED light on; the buzzer alarms; the inverter recovers to be normal automatically | |||||
| Higher Voltage: Red LED light on;the inverter recovers to be normal automatically | ||||||
| Over-load: Red LED light on;the inverter recovers to be normal automatically | ||||||
| Over-Temperature: Red LED light on; the buzzer alarms; the inverter recovers to be normal automatically | ||||||
| Short-Circuit(within 2 seconds):the inverter recovers to be normal automatically | ||||||
| The anode and the cathode are connected in the wrong way: the fuse blowouts | ||||||
| Operating Temperature | –10℃- +50℃ | |||||
| Saving Mode | Load power < 5w | |||||
| Humidity | 20%~90%RH without condensation | |||||
| Operating Altitude | 1200m | |||||
| Net Size | 248mm*136mm*70mm | |||||
| Net Weight | 1.4kg | |||||
| Packaging Size | 290*175*120mm/400*285*260mm 1*4 | |||||
| Gross Weight | 2.2kg | |||||
Inner structure :dc to ac inverter
AC available sockets : dc to ac inverter
Product applications : dc to ac inverter
Package&Delivery : dc to ac inverter
1. International Express: FedEx/DHL/UPS/TNT/EMS etc.
2.FOB Shanghai, Ningbo or Shenzhen Sea Port China. or EXW/CIF/CFR
3.Delivery goods with 7-30 days after receive the deposit for bulk order, sample order:2-3 days
Pass Power Products Range
FAQ
How to choose suitable inverter?
If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter. For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on. Modified wave can be started with some inductive loads, but effect for load using life, because capacitive loads and inductive loads need high quality power.
How do I choose the size of the inverter?
Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
Notice: resistive load: you can choose the same power as the load.
Capacitive loads: according to the load, you can choose 2-5 times power.
Inductive loads: according to the load, you can choose 4-7 times power.
How connection between batteries and an power inverter?
We usually believe that cables connecting battery terminal to inverter shorter is better. If you are
just standard cable should be less than 0.5M, but should correspond to the polarity of the batteriesand inverterside outside. If you want to lengthen the distance between battery and inverter, pleasecontact us and we will calculate the recommended cable size and length. Due to long distances
using a cable connection, there will be a reduced voltage, which means that the inverter voltage
would be far below the battery terminal voltage, this inverter will appear under voltage alarm
conditions.
