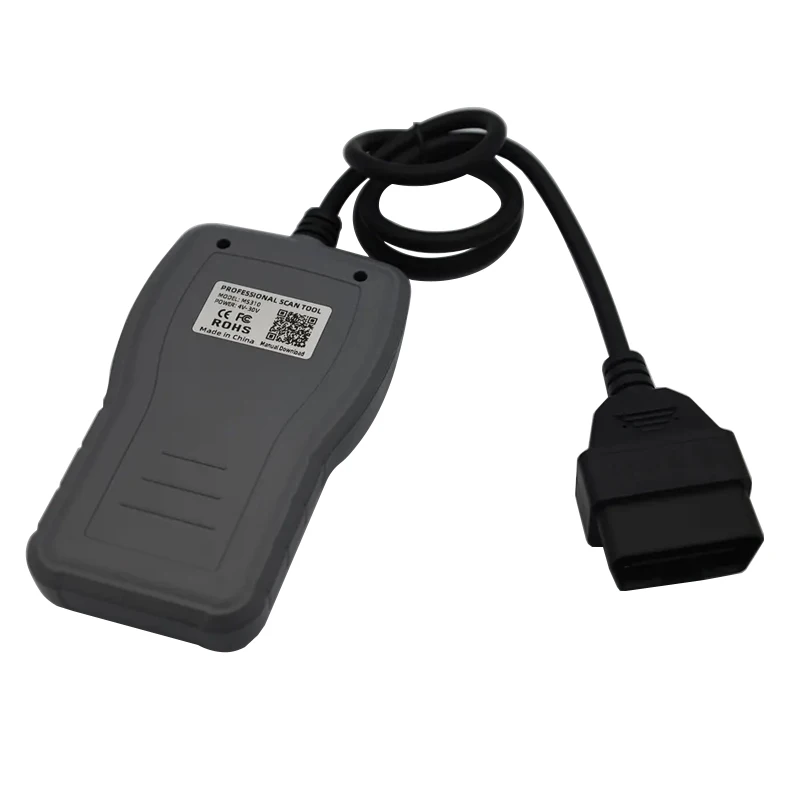

OBD2 Scanner Diagnostic Tools MS310 Professional Scan Tool for 1996 and Newer OBD II EOBD JOBD CAN Compliant Vehicles
US $9.60-12.50 / piece
100 piece(s)Minimum order
Place of Origin:
China
Brand Name:
/
Model Number:
MS310
Type:
OBD2 Scanner Diagnostic Tools
Voltage:
/
Dimension:
123*72*21mm
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$54.90-59.90
5 pieces (MOQ)
$1.12-1.35
200 pieces (MOQ)
Contact us
Quik Detail
| Place of Origin | China |
|---|---|
| Brand Name | / |
| Model Number | MS310 |
| Type | OBD2 Scanner Diagnostic Tools |
| Voltage | / |
| Dimension | 123*72*21mm |
| Product Name | MS310 Professional Scan Tool |
| Model Name | MS310 |
| Product size | 123 * 72 * 21mm |
| Operating temperature | 0 °C to 60 °C |
| Customized | NO |
| Warranty | / |
Product Detail
Product Description
Using a fault diagnosis instrument, faults in the automotive electronic control system can be quickly read, and fault information can be displayed on the LCD screen to quickly identify the location and cause of the fault. The automobile fault diagnosis instrument is a portable intelligent automobile fault self inspection terminal and automobile fault diagnosis instrument (also known as automobile decoder) used to detect automobile faults
1. OBD II CONNECTOR - Connects the Car Professional Scan Tool to the vehicle's Data Link Connector (DLC).
2. LCD DISPLAY - Indicates test results.
3. UP button - Roll up the menu and submenu in menu screen.
4. DOWN button - Roll down the menu and submenu in menu screen.
5. EXIT button - Cancel the operation or exit.
6. OK button - Confirms a selection (or action) from a menu list.
7. Bluetooth button - Enter bluetooth mode.
8. F1 button - Quickly enter the features that have been set.LED indicator - Visually indicate the failure of the vehicle.
2. LCD DISPLAY - Indicates test results.
3. UP button - Roll up the menu and submenu in menu screen.
4. DOWN button - Roll down the menu and submenu in menu screen.
5. EXIT button - Cancel the operation or exit.
6. OK button - Confirms a selection (or action) from a menu list.
7. Bluetooth button - Enter bluetooth mode.
8. F1 button - Quickly enter the features that have been set.LED indicator - Visually indicate the failure of the vehicle.
This OBDII / EOBD Car Professional Scan Tool is specially designed to work with all OBD II compliant vehicles, including those equipped with the next-generation protocol - Control Area Network (CAN). It is required by EPA that all 1996 and newer vehicles (cars and light trucks) sold in the United States must be OBD II compliant and this includes all Domestic, Asian and European vehicles. A small number of 1994 and 1995 model year gasoline vehicles are OBD II compliant. To verify if a 1994 or 1995 vehicle is OBD II compliant, check the Vehicle Emissions Control Information (VECI) Label which is located under the hood or by the radiator of most vehicles. If the vehicle is OBD II compliant, the label will designate “OBD II Certified”. Additionally, Government regulations mandate that all OBD II compliant vehicles must have a “common” sixteen-pin Data Link Connector (DLC). For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.
Device connection steps
CAUTION: Don’t connect or disconnect any test equipment with ignition on or engine running.
1. Turn the ignition off.
2. Locate the vehicle’s 16-pin Data Link Connector (DLC).
3. Plug into the OBDII cable to the vehicle’s DLC.
4. Turn the ignition on. Engine can be off or running.
5. Use UP/DOWN button select OBDII from the Main Screen,Press OK button to enter Diagnostic Menu. The tool will display OBD II protocols and the vehicle information until it has detected the vehicle’s communication protocol.
1. Turn the ignition off.
2. Locate the vehicle’s 16-pin Data Link Connector (DLC).
3. Plug into the OBDII cable to the vehicle’s DLC.
4. Turn the ignition on. Engine can be off or running.
5. Use UP/DOWN button select OBDII from the Main Screen,Press OK button to enter Diagnostic Menu. The tool will display OBD II protocols and the vehicle information until it has detected the vehicle’s communication protocol.
