Origin Import Brand Rose Mount 1056 Intelligent Four-Wire Transmitter
Other recommendations for your business
Contact us
Quik Detail
| warranty | 1 Year |
|---|---|
| customized support | OEM |
| place of origin | Singapore |
| brand name | Emerson |
| model number | 1056 |
| power | other |
| Voltage | Other |
| Type | transmittter |
| Application | transmitter |
| Power supply | Electronic |
| Usage | test pH/ORP/ISE, Resistivity |
| Delivery time | 6-8weeks |
| Dimensions | 155 * 155 * 155 mm |
| The dashboard hole size | 1/2 DIN standards, 139 x 139 mm |
| Display | LCD, resolution 128 x 96, effective display 58*78 mm |
| environment temperature | 0-50 |
| Relative humidity | 5-95% |
| store temperature | -20 to 60 degree |
| Package | Origin packaging |
Product Detail

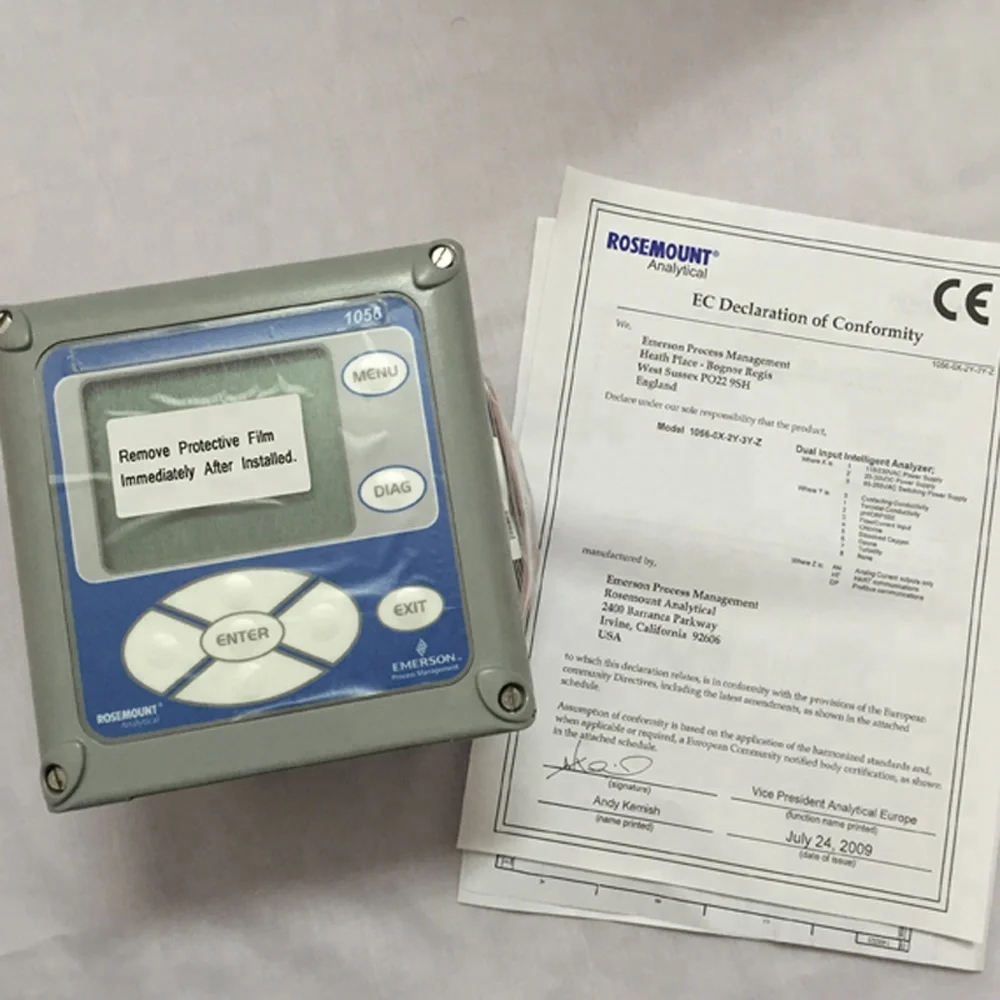

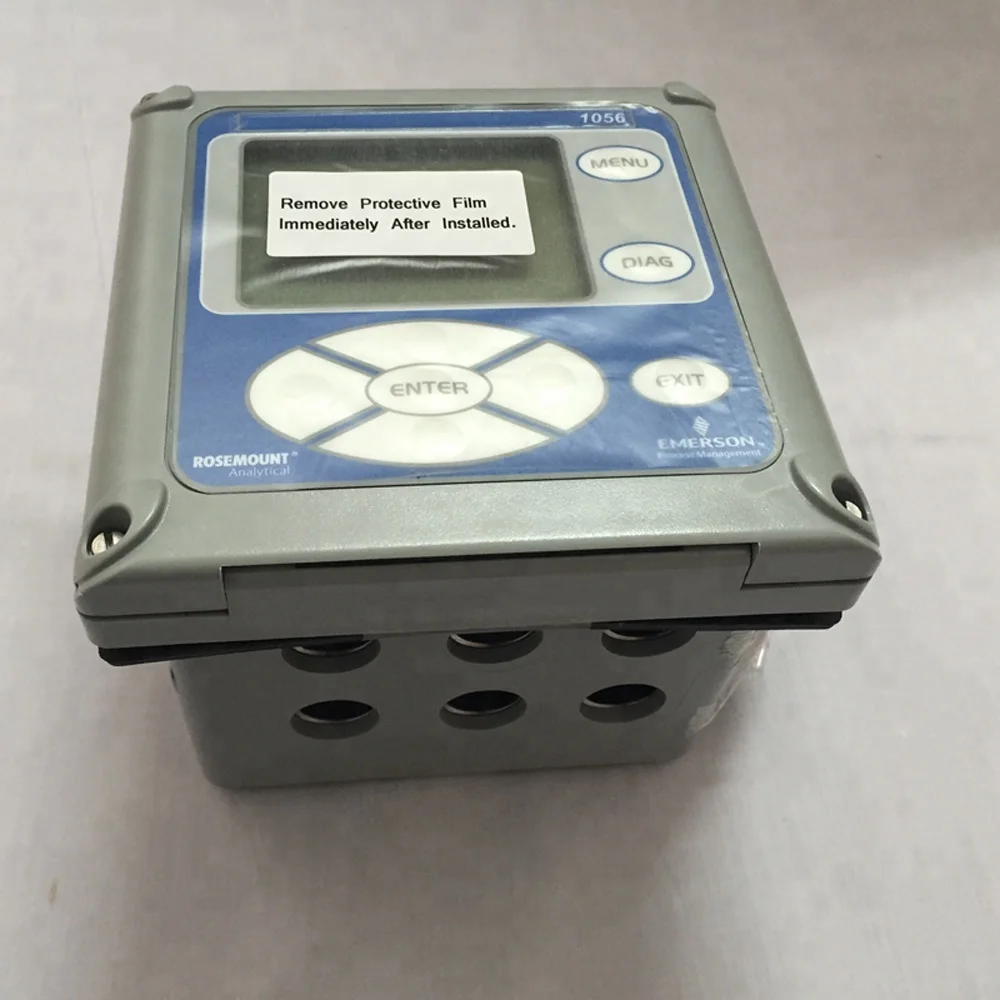

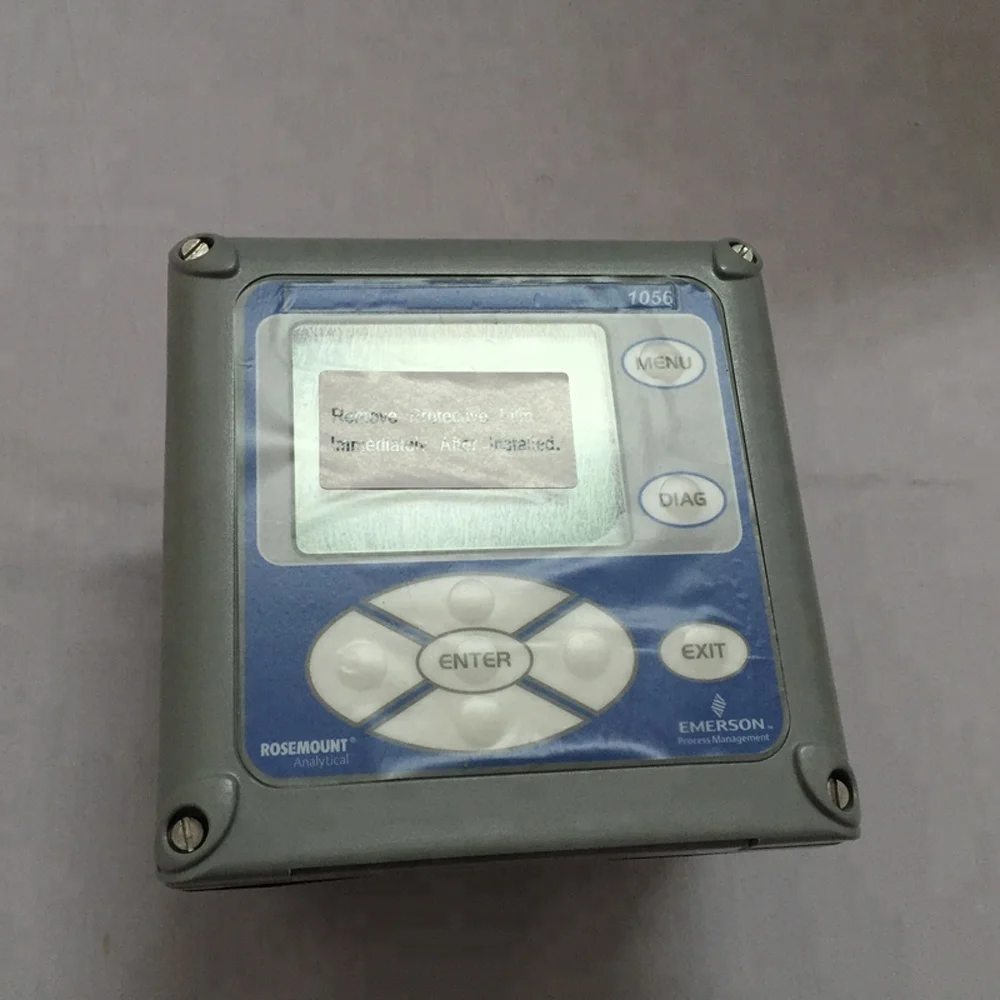

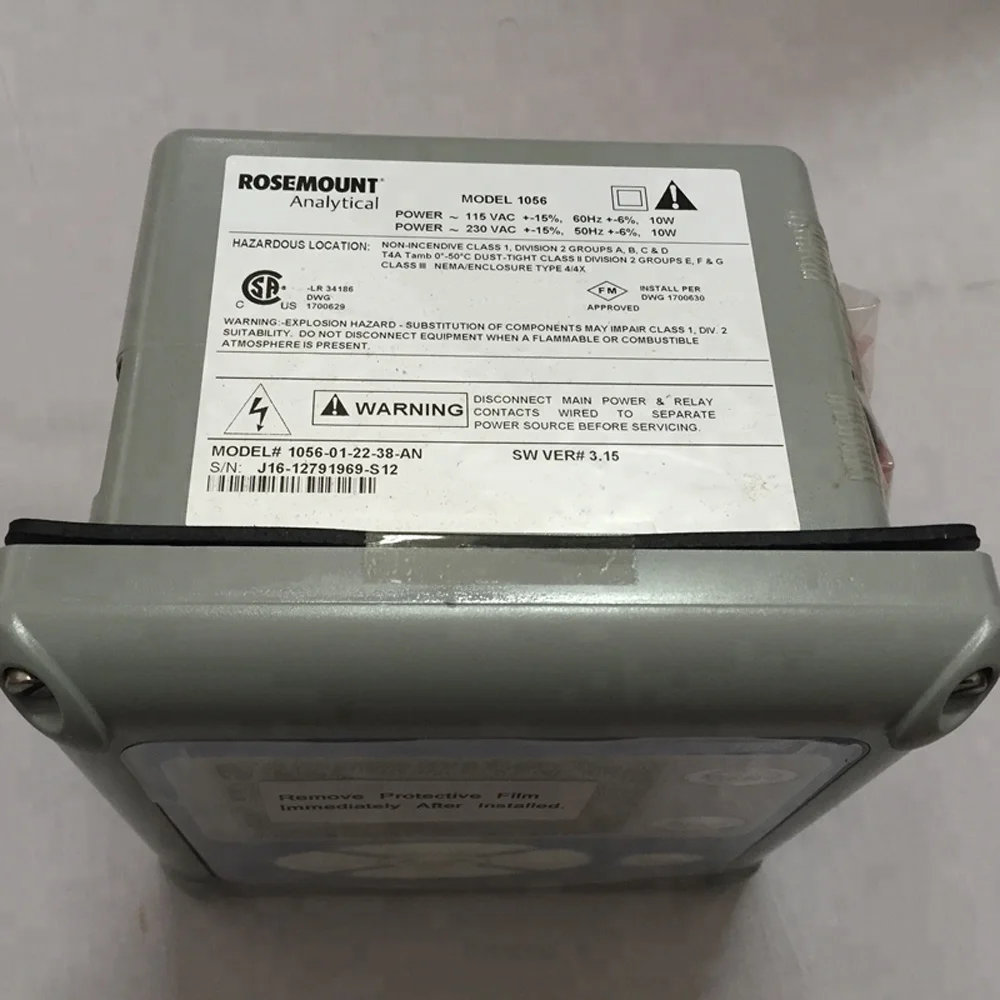

Origin import brand 1056 dual channel analyzer used for ph / ORP sensor
Quick Detail:
1. MULTI-PARAMETER INSTRUMENT C single or dual input. Choose from pH/ORP/ISE, Resistivity/Conductivity, % Concentration, Chlorine, Oxygen, Ozone, Temperature, Turbidity, Flow, and 4-20mA Current Input.
2. LARGE DISPLAY C large easy-to-read process measurements
3. EASY TO INSTALL C modular boards, removable connectors, easy to wire power, sensors, and outputs.
4. INTUITIVE MENU SCREENS with advanced diagnostics and help screens.
5. SEVEN LANGUAGES included: English, French, German, Italian, Spanish, Portuguese, and Chinese.
6. HART AND PROFIBUS DP Digital Communications options
Description:
The Model 1056 dual-input analyzer offers single or dual sensor input with an unrestricted choice of dual measurements. This multi-parameter instrument offers a wide range of measurement choices supporting most industrial, commercial, and municipal applications. The modular design allows signal input boards to be field replaced making configuration changes easy. Conveniently, live process values are always displayed during programming and calibration routines.
DIGITAL COMMUNICATIONS:
HART and Profibus DP digital communications are available. Model 1056 HART units communicate with the Model 375 HART® hand-held communicator and HART hosts, such as AMS Intelligent Device Manager. Model 1056 Profibus units are fully compatible with Profibus DP networks and Class 1 or Class 2 masters. HART and Profibus DP configured units will support any single or dual measurement configurations of Model 1056.
QUICK START PROGRAMMING:
Exclusive Quick Start screens appear the first time the Model 1056 is powered. The instrument auto-recognizes each measurement board and prompts the user to configure each sensor loop in a few quick steps for immediate deployment.
Applications:
Test pH / ORP / ISE , Resistivity
Specifications:
| Type number | analyzer |
| store temperature | -20 to 60 degree |
| Output | 4-20ma, 0-20ma |
| Usage | ph/ORP sensor |
| measurement | 155x155x131mm |
| Power | 115/230±15%VAC |
| Package | standard |
| Port | Beijing |
| Payment | T/T |
| model number | Analyzer 1056 |
