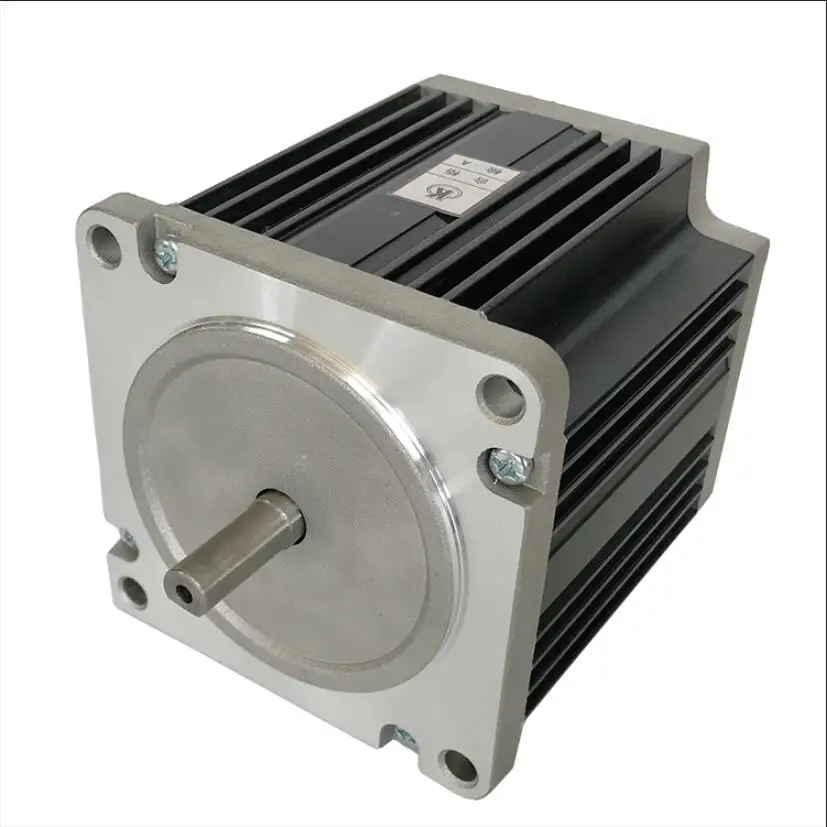

Permanent Magnet Synchronous Motor 115RPM Single Phase
Other recommendations for your business
Contact us
Quik Detail
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SOK MOTOR--single phase |
| Model Number | 70TDY115D4-2A- single phase |
| Type | Synchronous Motor |
| Frequency | 50Hz |
| Phase | Single-phase |
| Protect Feature | Drip-proof |
| AC Voltage | 380V |
| Efficiency | Other |
| Certification | CCC, ce, rohs, BV |
| Speed | 115RPM |
| Input current | 0.15A |
| Input power | 28W |
| Max. torque | 900mN.m |
| Rated torque | 850mN.m |
| Starting torque | 400mN.m |
| Insulation class | B |
| Weight | 1.6KG |
Product Detail
PM slow speed synchronous motor is one kind of totally enclosed motor, which can naturally turn at low speed ( 60 rpm ,72 rpm, 115 rpm, 214 rpm,300 rpm ,etc.).
For even lower speed planetary gear reducers are offered. SOK synchronous motors produce very low speed with modest gear reductions.
1.Temperature:-25℃~ +40℃;
2.Relative humidity:≤95%;
3.Atmospheric pressure :74.8KPa(2500m);
4.Vibration:10~55Hz,double amplitude1.5mm;
5.Impact: 150m/s2
Typical application
Auto-testing equipment
Medical equipment
Timing belt drives
X-ray scanning
Textile machines
Electrical valve actuator
Cryogenic pump
Heat exchanger
Remote control of switches rheostat
Printing,packaging machines
Antenna rotors
Auto-welding machines
Parameter of Permanent Magnet Synchronous Motor 115RPM single phase
Model | Voltage | Phase | Freq. | Syn. Speed | Input current | Input power | Max. torque | Rated torque | Starting torque |
V | Hz | r/min | A | W | mN.m | mN.m | mN.m | ||
70TDY072D7-3 | 220 | 1 | 60 | 72 | 0.25 | 50 | 1500 | 1400 | 800 |
70TDY060S1-3 | 24 | 3 | 50 | 60 | 1.75 | 36 | 1700 | 1600 | 1000 |
70TDY138D6-2 | 110 | 1 | 60 | 138.46 | 0.25 | 28 | 700 | 640 | 350 |
70TDY060D3-2 | 110 | 1 | 50 | 60 | 0.32 | 35 | 850 | 800 | 450 |
70TDY060S3-2 | 110 | 3 | 50 | 60 | 0.32 | 35 | 1600 | 1500 | 750 |
70TDY072S7-2 | 220 | 3 | 60 | 72 | 0.30 | 50 | 1200 | 1100 | 600 |
70TDY072D7-2 | 220 | 1 | 60 | 72 | 0.12 | 24 | 900 | 850 | 450 |
70TDY115S1-2 | 24 | 3 | 50 | 115.38 | 1.70 | 35 | 1600 | 1500 | 750 |
70TDY072S10-2 | 400 | 3 | 60 | 72 | 0.10 | 32 | 1600 | 1500 | 750 |
70TDY360A7-2 | 220 | 1 | 60 | 360 | 0.12 | 25 | 400 | 350 | 200 |
70TDY060D2-2 | 36 | 1 | 50 | 60 | 0.70 | 24 | 900 | 850 | 450 |
70TDY115S2-2 | 36 | 3 | 50 | 115.38 | 0.85 | 28 | 1100 | 1000 | 550 |
Note: The typical specifications above just for your reference. Please feel free to contact us if you can't find the motor you required. We are always here being ready to help.
Outline drawing
Dimension of Permanent Magnet Synchronous Motor 115RPM single phase
